- Description
-
Details

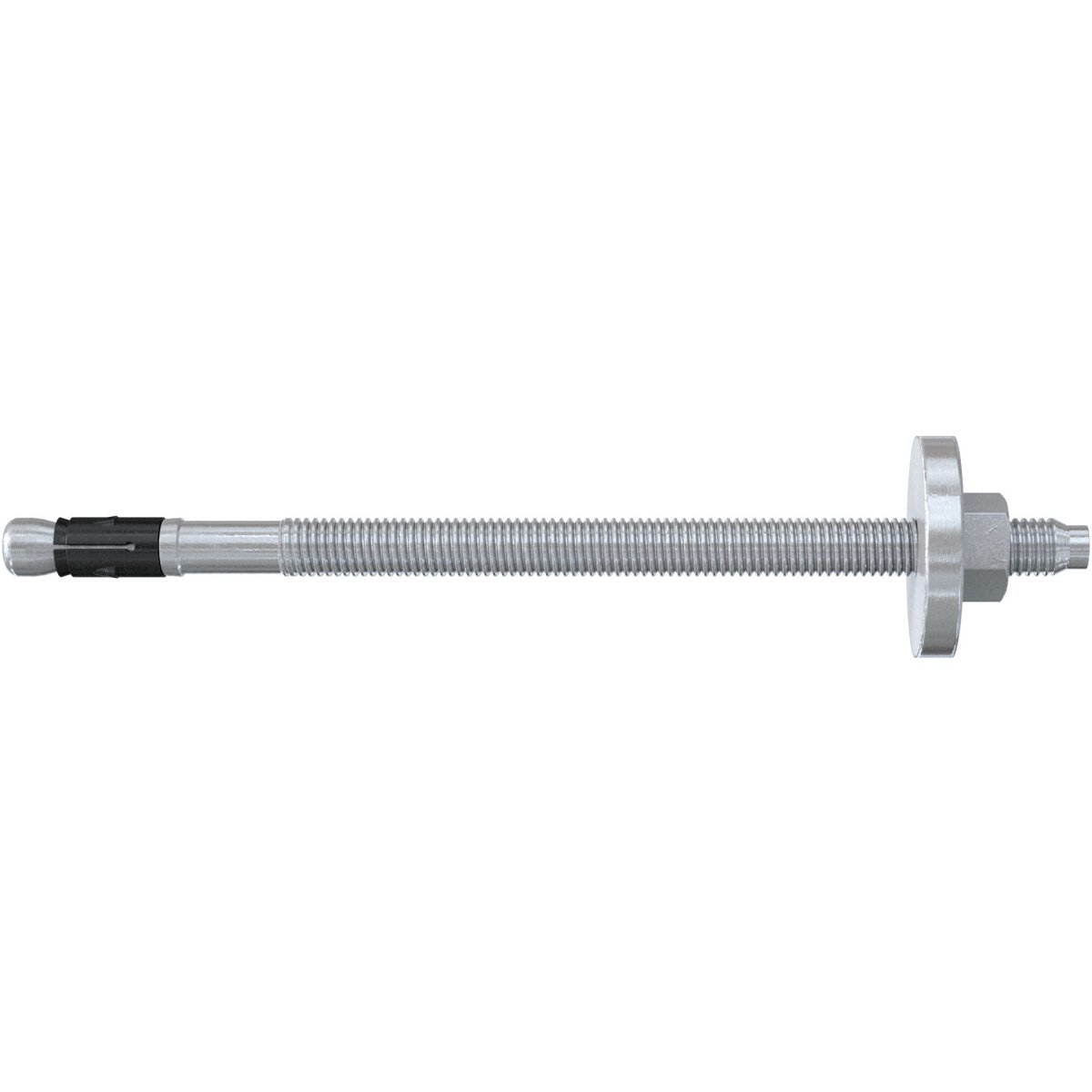

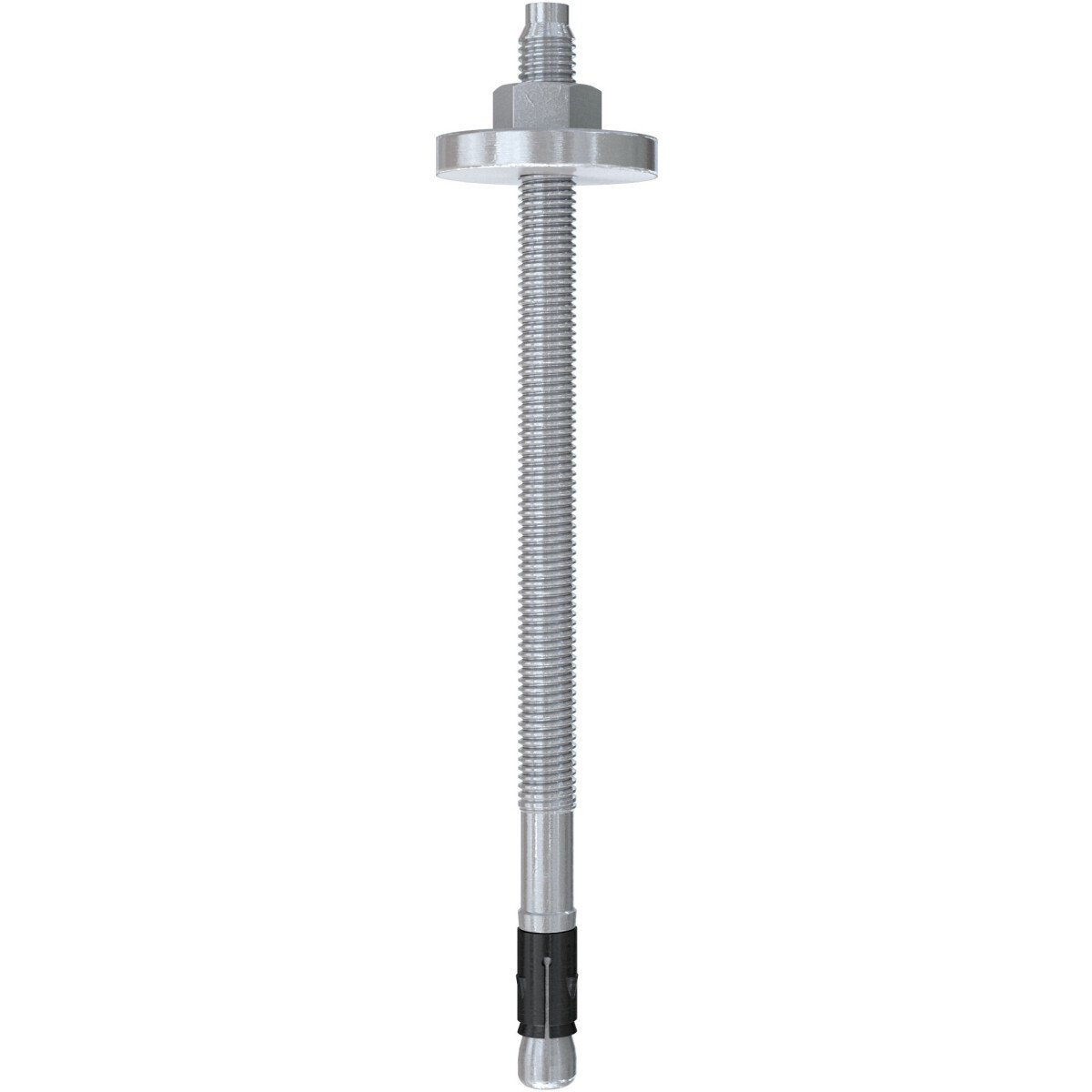

- The fischer bolt anchor FAZ II Plus HBS with washer in line with timber construction standard DIN 1052 is the steel anchor for the most demanding requirements
- Heavy loads are fixed into cracked concrete with the zinc-plated steel anchor
- Due to the variable anchorage depths and simple mounting, the FAZ II Plus HBS can be used in a particularly flexible manner
- The proven expansion clip feeds the loads into the concrete in an especially secure manner and ensures maximum load-bearing properties

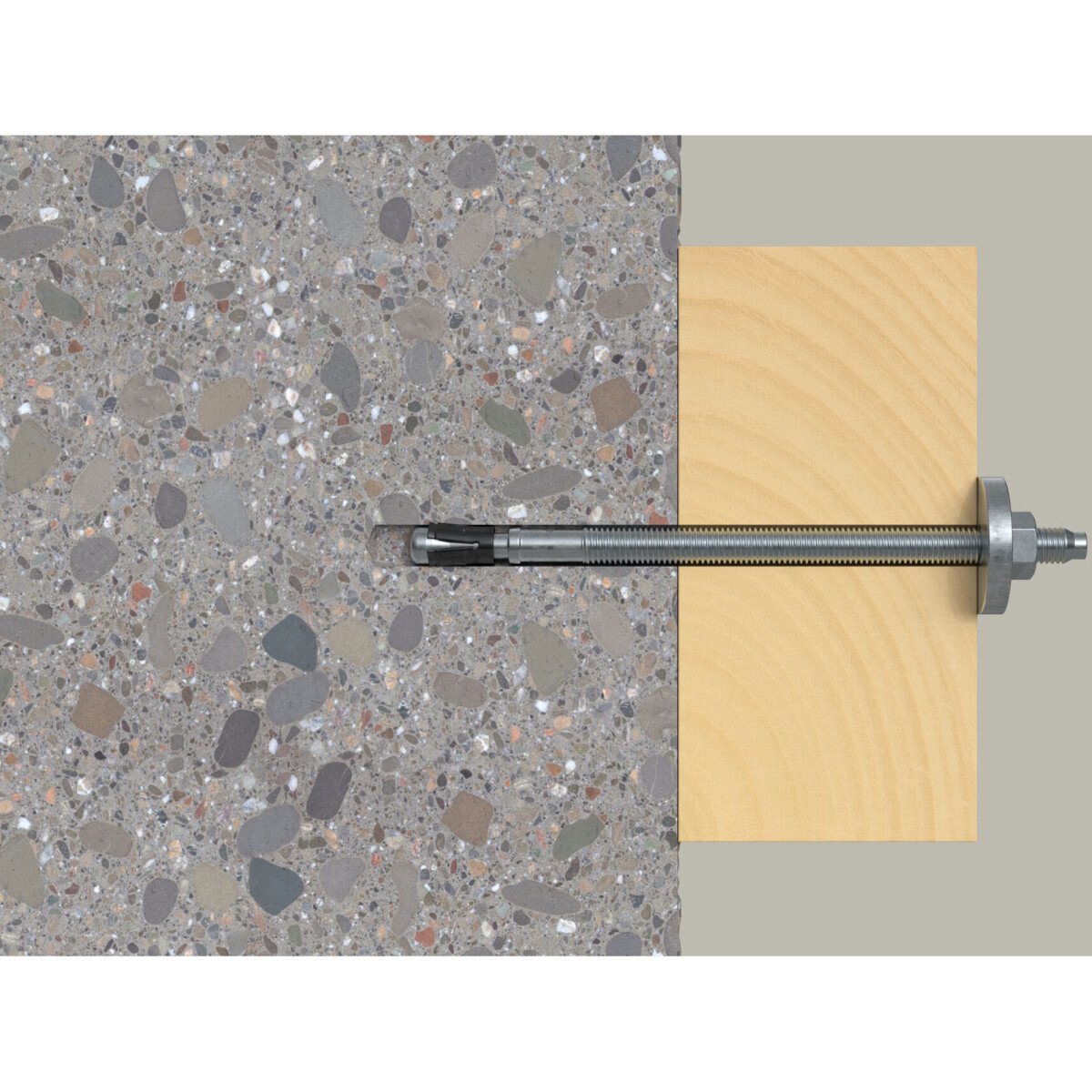

- The version made of zinc-plated steel is used to fix timber constructions

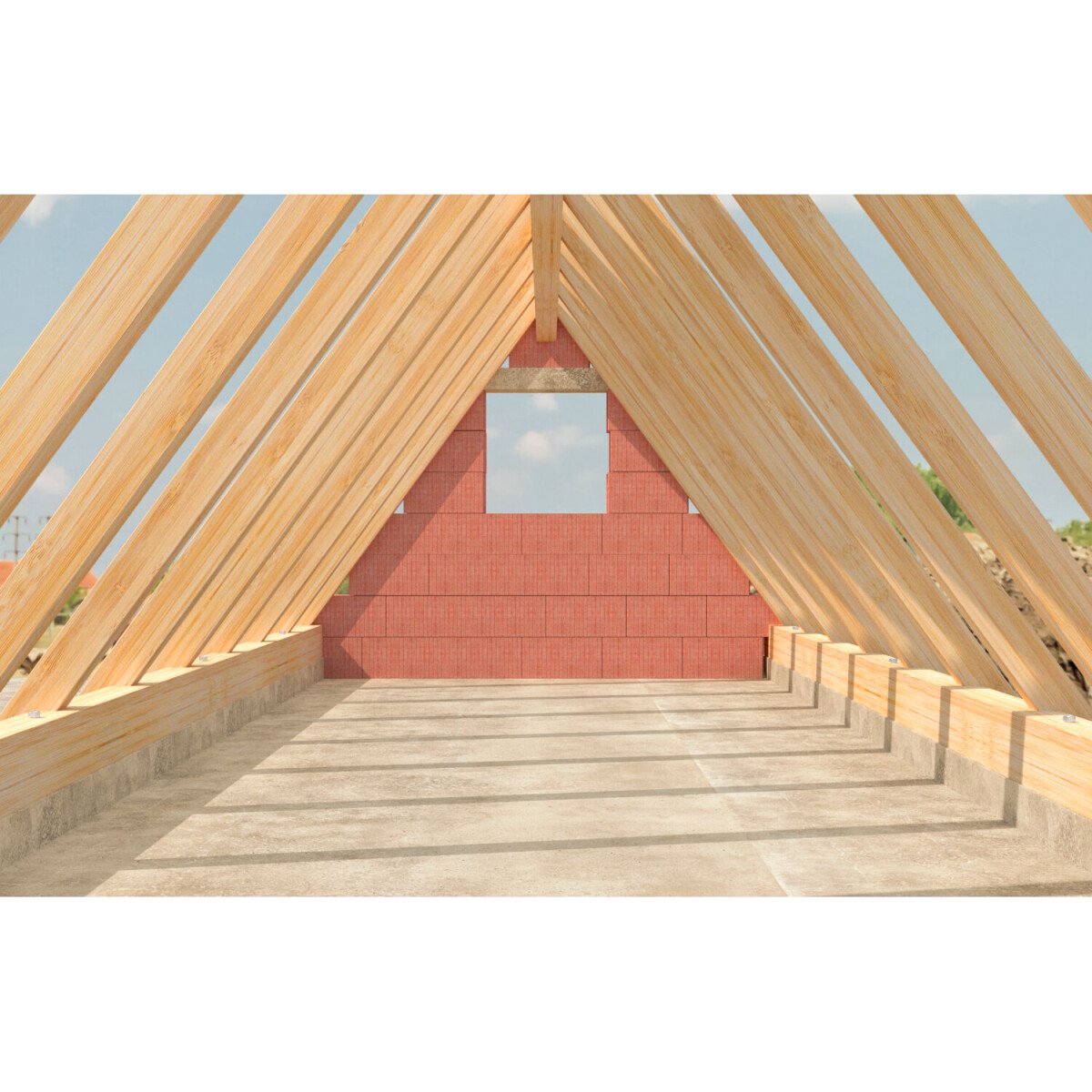

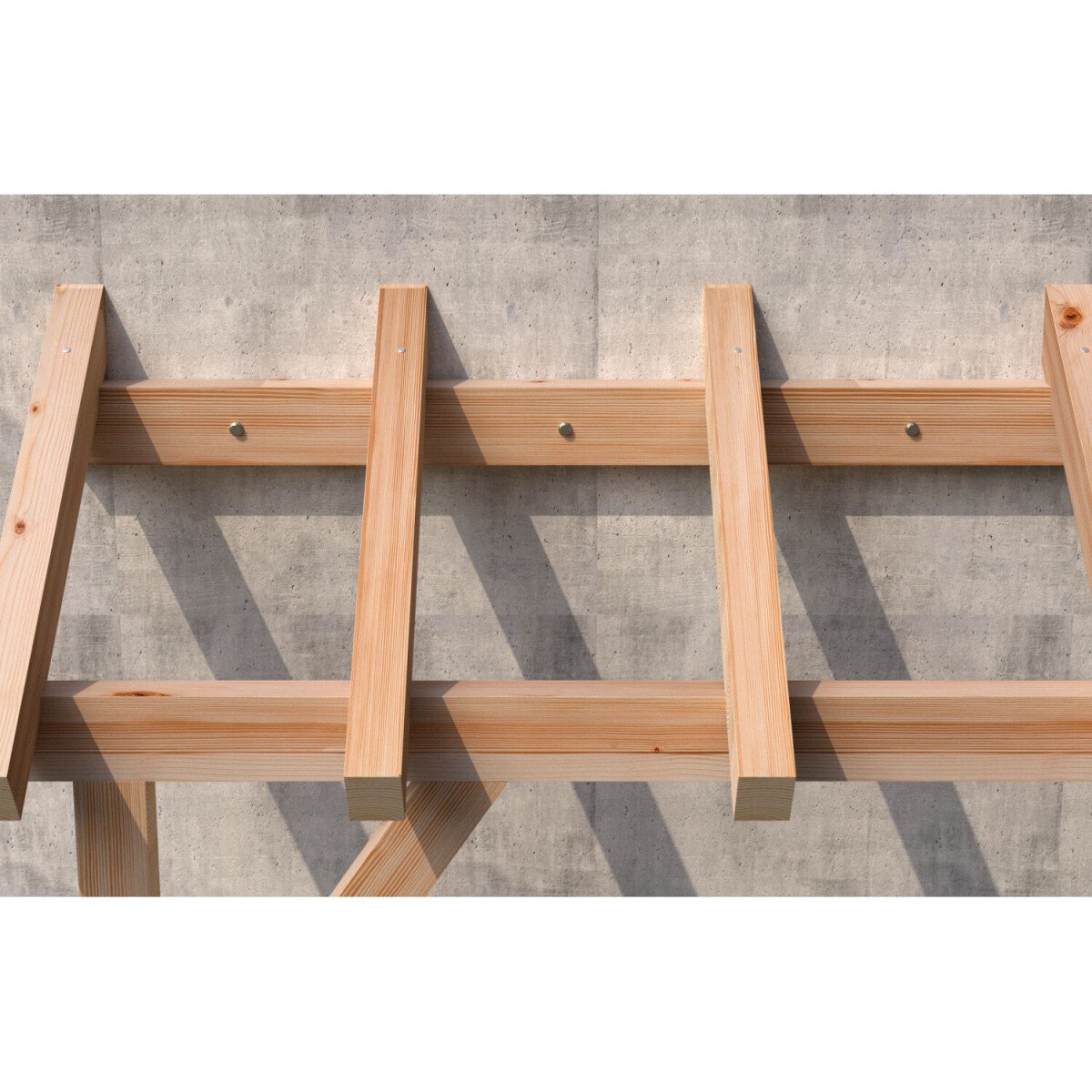

- The steel anchor is, for example, suitable for fixing beams and sills
- Features
Features
ETA-approval Seismic-Approval C1 / C2 Drill diameter (d0) 12 mm Min. drill hole depth for through fixings (h2) 210 mm Max. usable length hef,stand./hef,min. (tfix) 120 / 140 mm Anchor length (l) 225 mm Thread (ø x length) M12 x 171 mm Width across nut 19 mm Amount 20 pcs GTIN (EAN-Code) 4048962463095 Applications Anchor plates with slotted holes Façade sub-structures with slotted holes Timber constructions Tension anchor Anchoring of wooden beams Building materials Approved for: Beton C20/25 bis C50/60, gerissen und ungerissen Suitable for: Concrete C12/15 (classification available) Concrete C80/95 (classification available) Steel fiber concrete (classification available) Solid sand-lime brick (classification available)
