Fischer 564667 Bolt Anchor FAZ II Plus 12/10 GS R Stainless Steel Pack x 20

• The fischer bolt anchor FAZ II Plus GS stainless steel with a large washer is the steel anchor for the most demanding requirements
• Heavy loads are fixed into cracked concrete with the stainless steel anchor
• Due to the variable anchorage depths and simple mounting, the FAZ II Plus GS stainless steel can be used in a particularly flexible manner
• The proven expansion clip feeds the loads into the concrete in an especially secure manner and ensures maximum load-bearing properties
• The stainless steel version is used to fix loads in outdoor areas

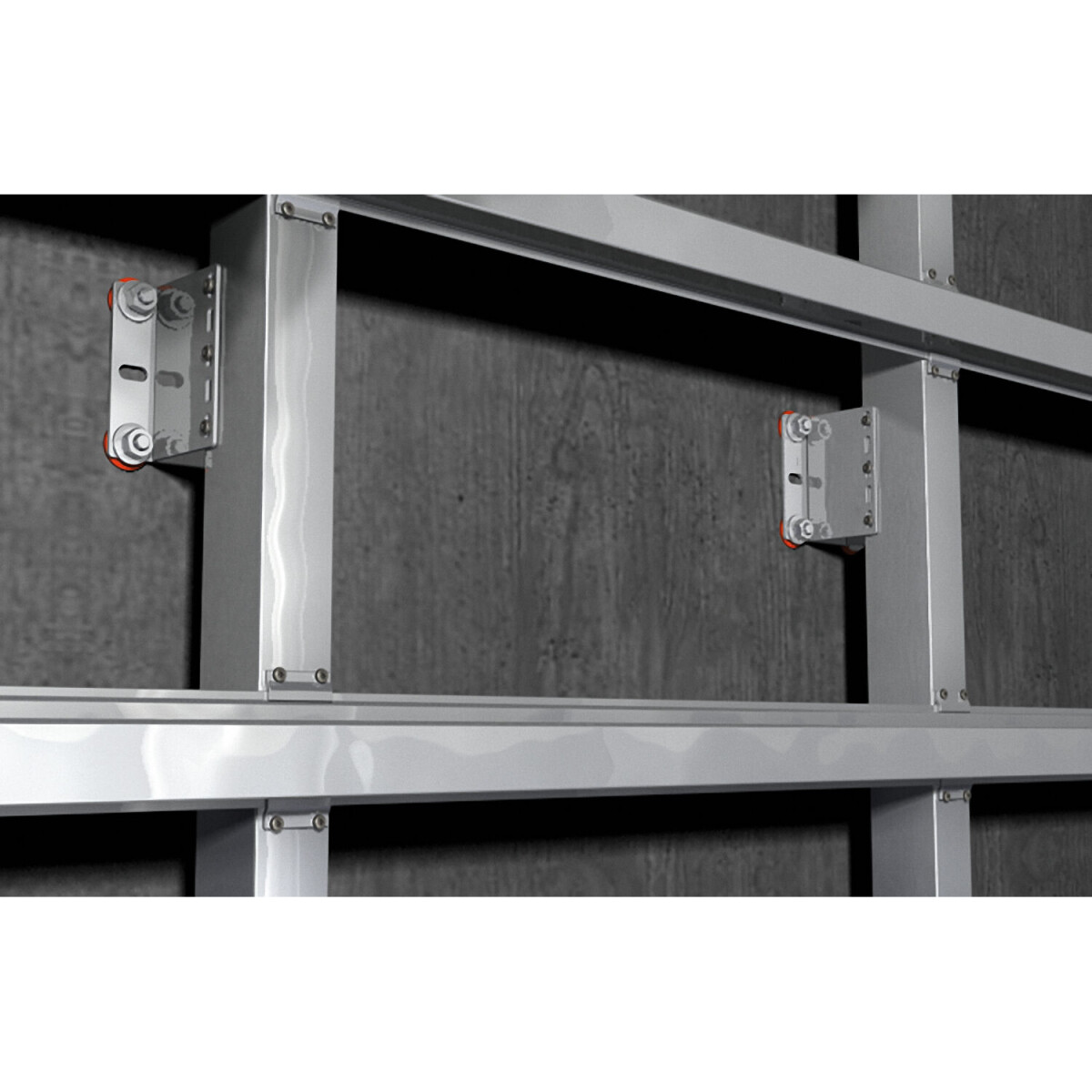

• For example, the steel anchor with large washer is ideal for fixing steel components or façade substructures with slots

Advantages

• The FAZ II Plus GS are suitable for fixing steel fixtures with long holes thanks to the special washer, and help to reduce installation effort
• The significantly larger outer diameter of the washers for FAZ II Plus 16 GS ensures a larger supporting surface, and as such allows for use in wood construction
• Quick and easier assembly without the need for drill hole cleaning (M8-M24)
• Numerous approval certificates for different substrate materials (concrete C12/15-C80/95, steel fiber concrete, solid sand-lime brick) increase the number of applications and fields of use
• With the new assessment (ETA), the tensile strengths increase decisively
• As a result, fewer fixing points and anchors are required
• The ETA evaluation, together with other test reports (RWS, ZTV, ETK), ensures high loads in case of fire
• An external independent assessment confirms the service life of anchorages up to 120 years
• Thus, the FAZ II Plus outlasts a whole century and is perfectly suited for large, long-lasting construction projects (M10-M16)
• The variable anchorage depths allow a millimetre-accurate adjustment to the loads.
