- Description
-
Details

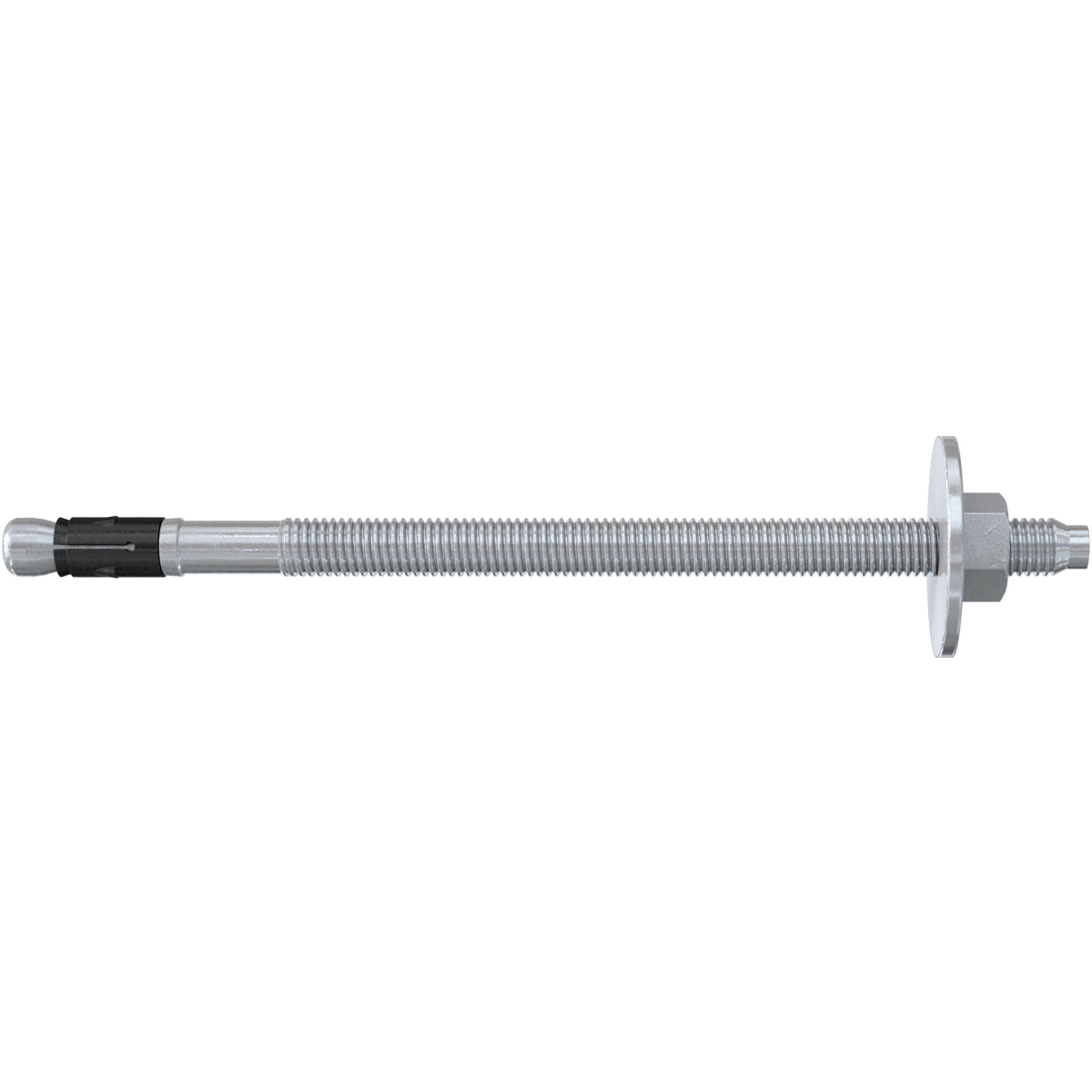

- Pre-assembled washer for components with slots
- This simplifies alignment and saves time during installation
- Quick and easy assembly without the need for drill hole cleaning (M8-M24)
- Decisive increase in tensile load-bearing capacity due to the new assessment (ETA) - fewer fixing points and smaller anchor plates save time and costs
- Millimeter accurate adjustment to the loads due to the variable anchoring depths
- Highest seismic loads for diameters M10-M24 with and without the use of the filling disc FFD
Advantages
- The FAZ II Plus GS are suitable for fixing steel fixtures with long holes thanks to the special washer, and help to reduce installation effort
- The significantly larger outer diameter of the washers for FAZ II Plus 16 GS ensures a larger supporting surface, and as such allows for use in wood construction
- Quick and easier assembly without the need for drill hole cleaning (M8-M24)
- Numerous approval certificates for different substrate materials (concrete C12/15-C80/95, steel fiber concrete, solid sand-lime brick) increase the number of applications and fields of use
- With the new assessment (ETA), the tensile strengths increase decisively
- As a result, fewer fixing points and anchors are required
- The ETA evaluation, together with other test reports (RWS, ZTV, ETK), ensures high loads in case of fire
- An external independent assessment confirms the service life of anchorages up to 120 years
- Thus, the FAZ II Plus outlasts a whole century and is perfectly suited for large, long-lasting construction projects (M10-M16)
- The variable anchorage depths allow a millimetre-accurate adjustment to the loads
- Features
Features
ETA-approval Seismic-Approval C1 / C2 Drill diameter (d0) 12 mm Min. drill hole depth for through fixings (h2) 100 mm Max. usable length hef,stand./hef,min. (tfix) 10 / 30 mm Anchor length (l) 110 mm Thread (ø x length) M12 x 61 mm Washer (outer diameter x thickness) 30 x 3 mm Width across nut 19 mm Amount 20 pcs GTIN (EAN-Code) 4048962462739 Pre-assembled washer for components with slots. This simplifies alignment and saves time during installation. Quick and easy assembly without the need for drill hole cleaning (M8-M24). Decisive increase in tensile load-bearing capacity due to the new assessment (ETA) - fewer fixing points and smaller anchor plates save time and costs. Millimeter accurate adjustment to the loads due to the variable anchoring depths. Highest seismic loads for diameters M10-M24 with and without the use of the filling disc FFD.
