- Description
-
Details
- Quick and easy assembly without the need for drill hole cleaning (M8-M24)
- Stainless steel: maximum safety for outdoor use
- Decisive increase in tensile load-bearing capacity due to the new assessment (ETA) - fewer fixing points and smaller anchor plates save time and costs
- Millimeter accurate adjustment to the loads due to the variable anchoring depths
- Highest seismic loads for diameters M10-M24 with and without the use of the filling disc FFD.

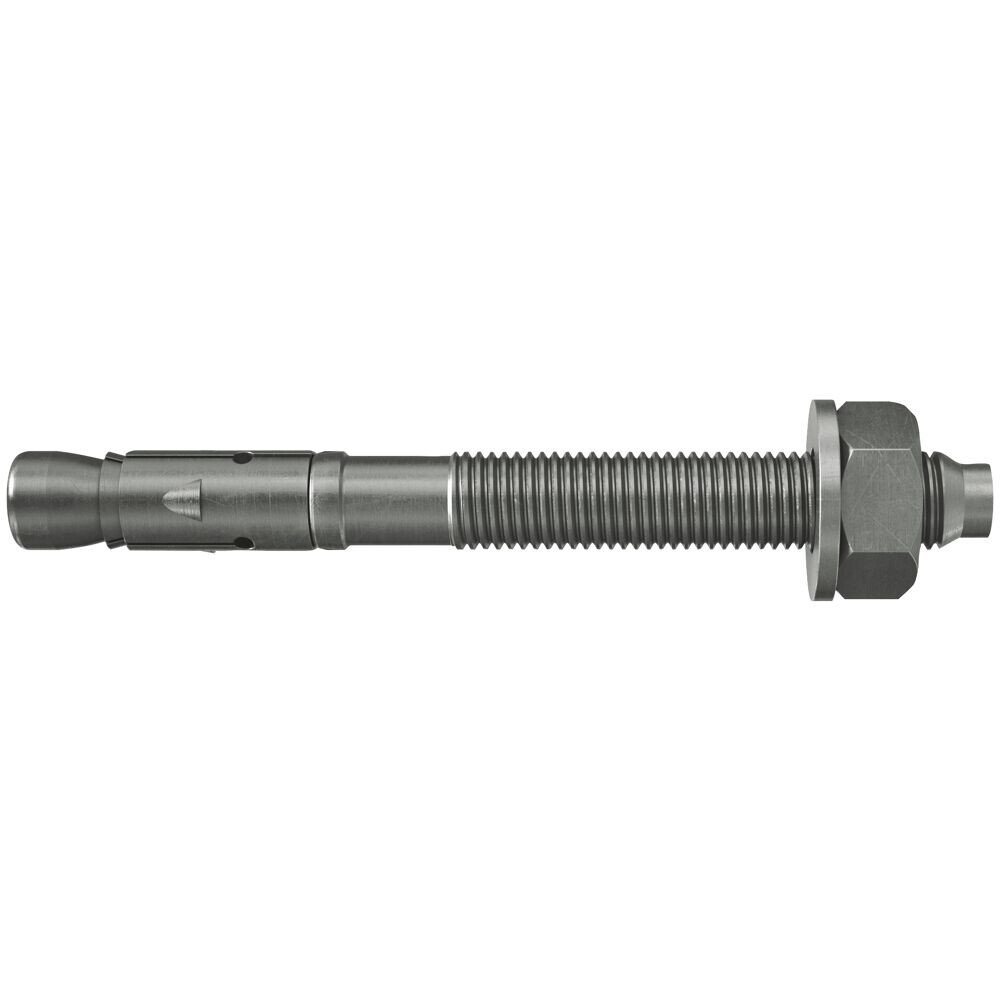

- The fischer bolt anchor FAZ II Plus is the steel anchor for the highest demands with high tensile strengths and a wide range of applications
- Heavy loads can be secured in cracked concrete using the steel anchor
- The FAZ II Plus is easier and faster to set due to the elimination of drill hole cleaning (M8-M24)
- The tried-and-tested expansion clip safely introduces the loads into the concrete and enables an immediately loadable, high load-bearing capacity
- For example, the steel anchor is ideal for the anchoring of railings, cable trays, and consoles
Advantages
- Quick and easier assembly without the need for drill hole cleaning (M8-M24)
- Numerous approval certificates for different substrate materials (concrete C12/15-C80/95, steel fiber concrete, solid sand-lime brick) increase the number of applications and fields of use
- With the new assessment (ETA), the tensile strengths increase decisively
- As a result, fewer fixing points and anchors are required
- The ETA evaluation, together with other test reports (RWS, ZTV, ETK), ensures high loads in case of fire
- An external independent assessment confirms the service life of anchorages up to 120 years
- Thus, the FAZ II Plus outlasts a whole century and is perfectly suited for large, long-lasting construction projects (M10-M16)
- The FAZ II Plus allows the absorption of high seismic loads of performance category C1 and C2 for diameters M10-M24 with and without the use of the filling disc FFD at installation
- The variable anchorage depths allow a millimetre-accurate adjustment to the loads
- Features
Features
ETA-approval ICC-approval Seismic-Approval C1 / C2 Drill diameter (d0) 16 mm Min. drill hole depth for through fixings (h2) 135 mm Max. usable length hef,stand./hef,min. (tfix) 25 / 45 mm Anchor length (l) 148 mm Thread (ø x length) M16 x 84 mm Width across nut 24 mm Installation torque (Tinst) 110 Nm Packaging Folding box Amount 10 pcs GTIN (EAN-Code) 4048962462678 Applications Steel constructions Guard rails Consoles Tunnels Swimming pools Lifts Lifting platforms Conveyor belts Pumps Ladders Cable trays Machines Staircases Façades Timber constructions Building materials Approved for: Concrete C20/25 to C50/60, cracked and non-cracked Suitable for: Concrete C12/15 (classification available) Concrete C80/95 (classification available) Steel fiber concrete (classification available) Solid sand-lime brick (classification available)
