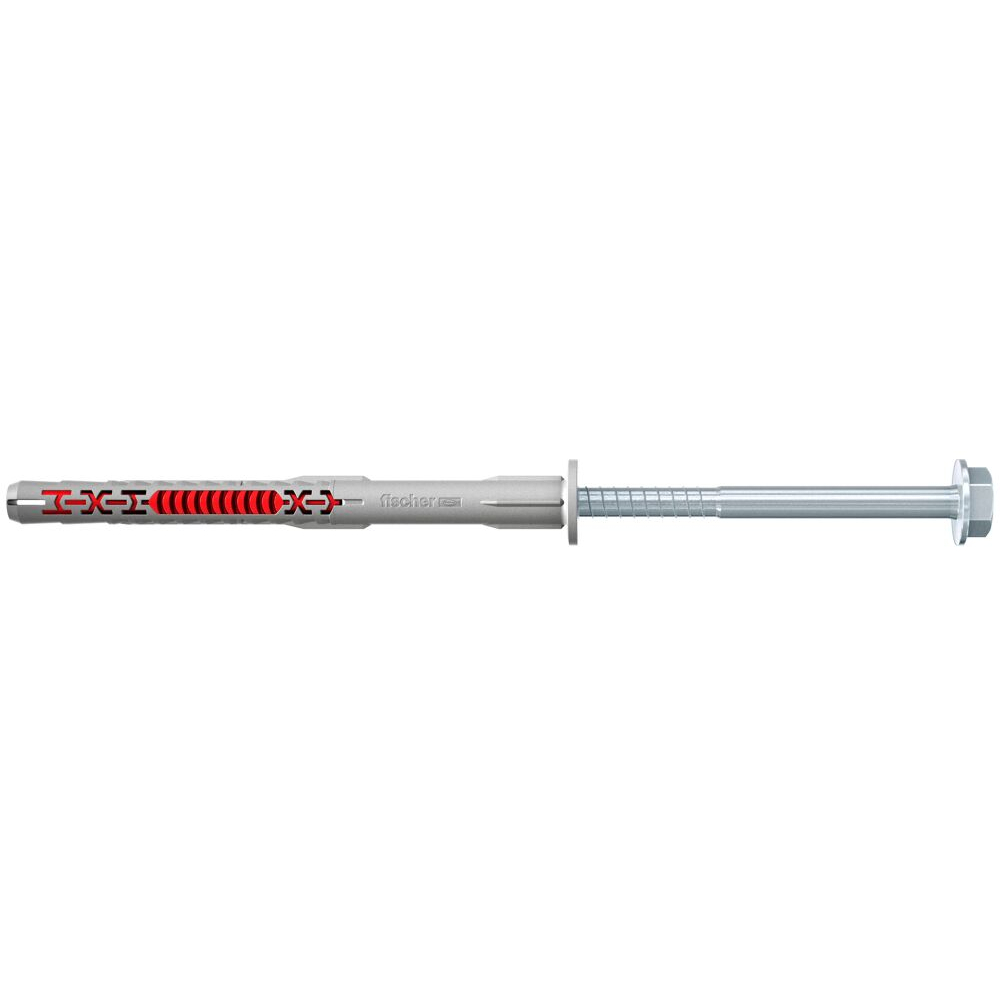

Fischer 562167 Frame Fixing DuoXpand 10 x 80 FUS Zinc-Plated Steel Pack x 50
The Dot & Dab Specialist, for use in all building materials .
SKU
FIS-562167
Barcode
4048962440287
£36.53
(
£30.44
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Fischer 562167
- This product is aimed at the dry lining market where fixing into a dot and dab aerated block wall has been known to be difficult and pragmatic to find suitable fixing
- Clever combination of design and material for a secure installation in the building material
- Expansion element with two anchoring depths for flexible use
- Approved multiple fastening of non-load-bearing systems in concrete and masonry
- Side ribs prevent rotation in the drill hole for convenient installation
- Pre-assembled safety screw with countersunk head
Advantages
- The combination of design and material adapts to all building materials and enables universal use
- The special lamella geometry expands gently in the respective building material
- This avoids fractures in porous building materials and enables anchoring close to the edge
- The grey main body made of high-quality nylon provides the strength, while the red material component ensures flexibility and optimal spreading
- The European Technical Assessment (ETA) for multiple use for non-structural applications ensures secure hold in all building material classes
- The pre-mounted safety screw is perfectly matched to the plug and ensures time savings during installation
Functionality
- The DuoXpand is suitable for push-through installation. In solid building materials, the product design guarantees equal load distribution into the substrate
- In perforated brickwork,the lamellas expand at the stone web and form an undercut in the cavity
- The anchor geometry ensures that the force is transferred evenly to the material, so that porous stone webs are not destroyed
- Particularly suitable for fixing wood to concrete or masonry
ETA DOP Certification Document
Features / Specification
| ETA-approval | |
|---|---|
| Drill diameter 10 mm | |
| Min. drill hole depth for through fixings 90 mm | |
| Usable length at anchorage depth 50mm 30 mm | |
| Usable length at anchorage depth 70mm 10 mm | |
| Anchor length 80 mm | |
| Drive TX40 / SW 13 | |
| Amount 50 pcs. | |
| GTIN (EAN-Code) 4048962440287 | |
| Applications | |
| Facade, ceiling and roof substructures made of wood and metal | |
| Windows | |
| Gates and doors | |
| Wardrobes | |
| Kitchen hanging cabinets | |
| Squared timbers | |
| Beams | |
| TV consoles | |
| Wall covering | |
| Metal brackets | |
| Metal supports | |
| Cable ducts | |
| Cable trays | |
| Building materials | |
| Approved for: | |
| Concrete ≥ C12/15 | |
| Solid brick | |
| Solid sand-lime brick | |
| Solid block made from lightweight and normal weigth concrete | |
| Vertically perforated bricks | |
| Perforated sand-lime brick | |
| Hollow blocks made from lightweight concrete | |
| Aerated concrete | |
| Also suitable for: | |
| Natural stone with dense structure | |
| Solid panel mad from gypsum | |
| You can find detailed information on building materials in the approval document. | |
| Approval | |
| ETA-21/0324 | |
| DoP 0244 | |
| REPORT NO.: | 21-010-3 (1) |
