Fischer 553738 Bracket SET KSU S 600 With Sound Insulation
The complete set for sound-insulated attachment of air conditioning systems to walls
Order within
SKU
FIS-553738
Barcode
4048962377934
£113.39
(
£94.49
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Fischer 553738

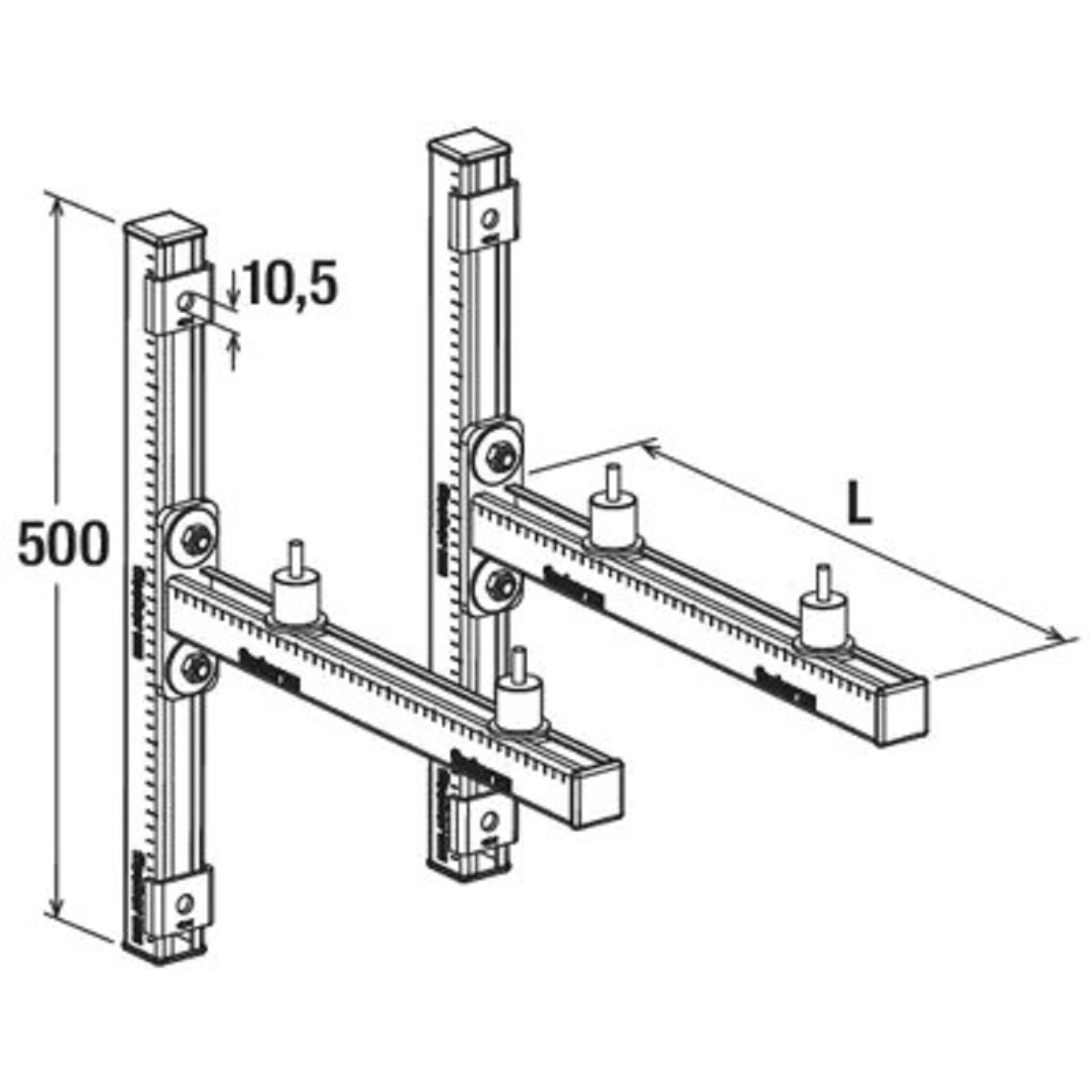

- The fischer bracket set KSU is a complete set for the fixing of air-conditioning systems, pumps and fans to walls
- The set consists of the fischer mounting channels MS 38/40, T-head bolts HS, and channel nuts SM
- Version KSU-S contains four additional vibration dampers
- The components of the sets with Sendzimir galvanisation are made from high-quality steel.
- A galvanised zinc coating ensures corrosion resistance
- Saves time and costs during installation as rails are already cut to size
- Simple assembly due to flexible alignment of sound insulation elements
- Optimum sound insulation due to sound insulation elements.
Features / Specification
| Length (L) 600 mm |
|---|
| Max. recommended static load load case 1 (Frec) 0,75 kN |
| Max. recommended static load load case 2 (Frec) 0,75 kN |
| Amount 2 pcs |
| GTIN (EAN-Code) 4048962377934 |
| Properties |
| Material channels steel S250GD+Z275 (material no. 1.0242) acc. to DIN EN 10346 |
| Material cantilever arms steel S235JR (material no. 1.0037) acc. to DIN EN 10025 |
| Zinc plating channels sendzimir-galvanised |
| Zinc plating cantilever arms electro zinc-plated |
