- Description
-
Details

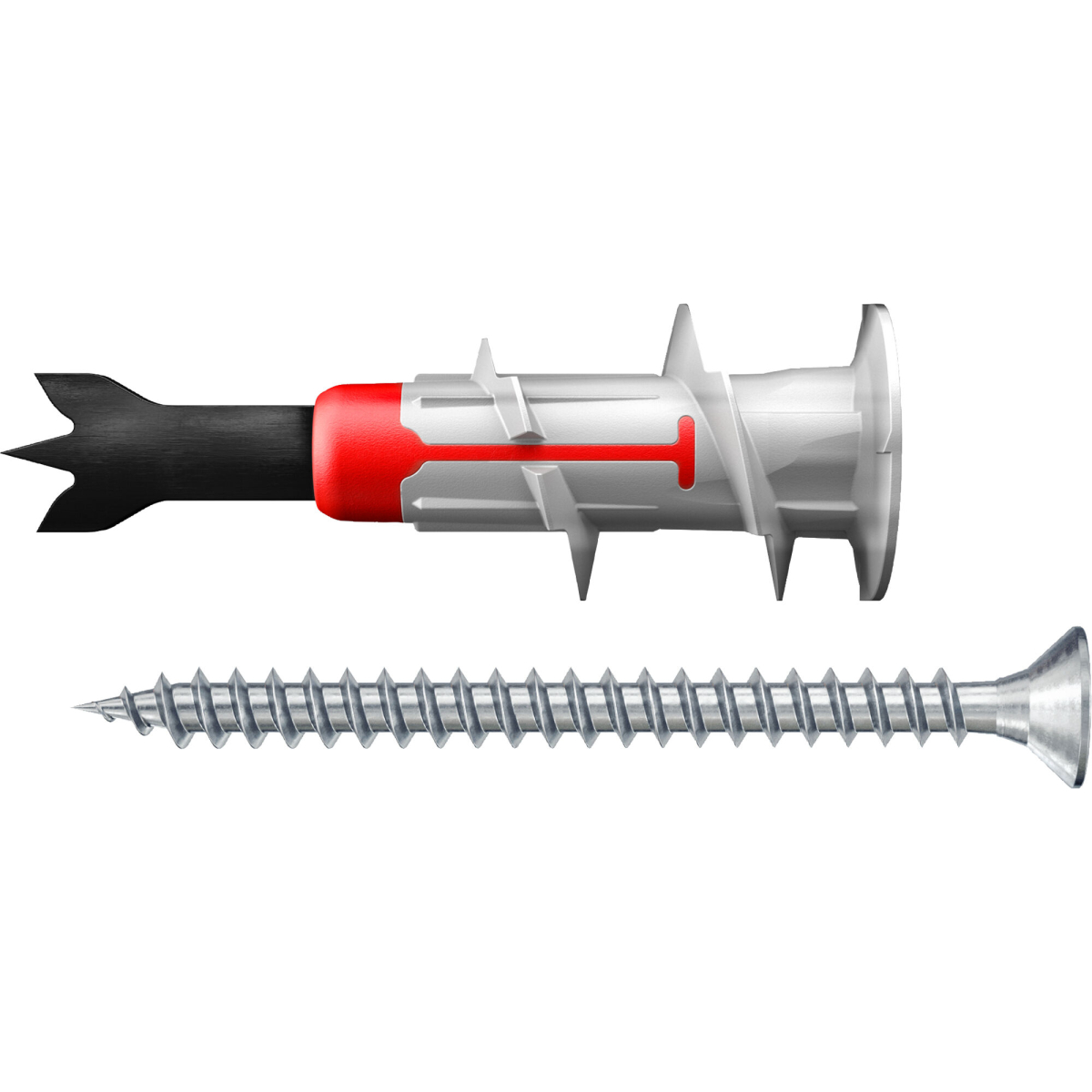

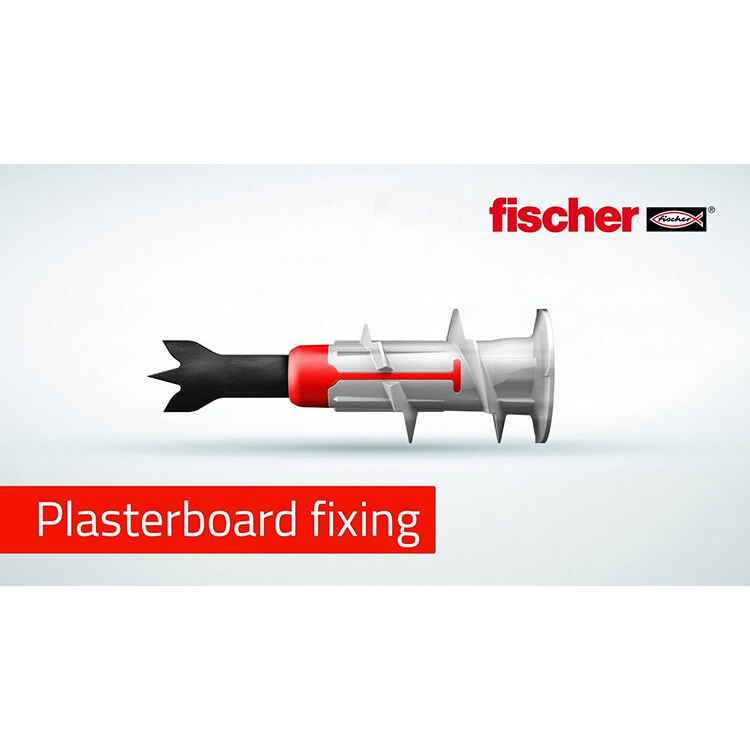

- The fischer DuoBlade is part of the innovative DuoLine and therefore consists of different components, which enable the best possible performance
- The self-drilling tip allows a clean and effective drilling procedure

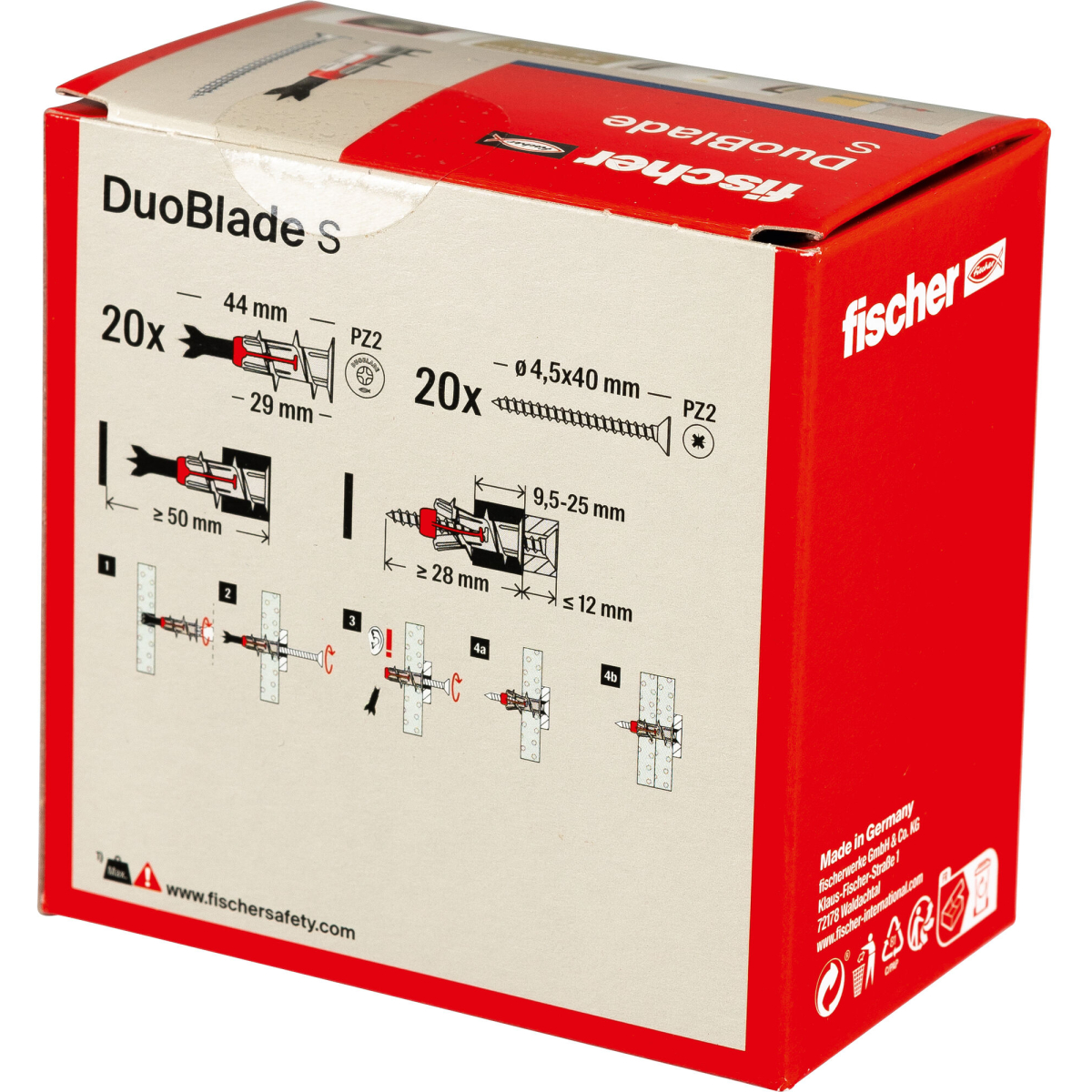

- The fixing is screwed in the pre-positioned installation with the (cordless) screwdriver setting tool flush to the surface of the gypsum plasterboard
- The fischer DuoBlade is adapted for wood, metal and chipboard screws from 4 to 5 mm thickness as well as different hooks and eye screws
- Consequently, it is universally suitable for fixing e.g. smoke detectors, curtain rods and shutters securely and quickly
- The DuoBlade is placed in the plasterboard with a conventional PZ 2 drive.
- No special setting device is required
- Advantages An innovative product of the fischer DuoLine with intelligent combinations for more power and more intelligence. The self-drilling fischer DuoBlade allows fast and easy installation in gypsum plasterboard and gypsum fibreboard. The black metal tip guarantees simple and safe installation. High torque when anchor is installed for the feelgood-factor and an optimum feeling when setting. PZ 2 drive - same drive for plug and screw.
- Applications Smoke detectors Mirrors Curtain rods Blinds Lamps Pictures Building materials Gypsum plasterboard, single and double-planked Gypsum fibreboard Lightweight cement boards
- Features
Features

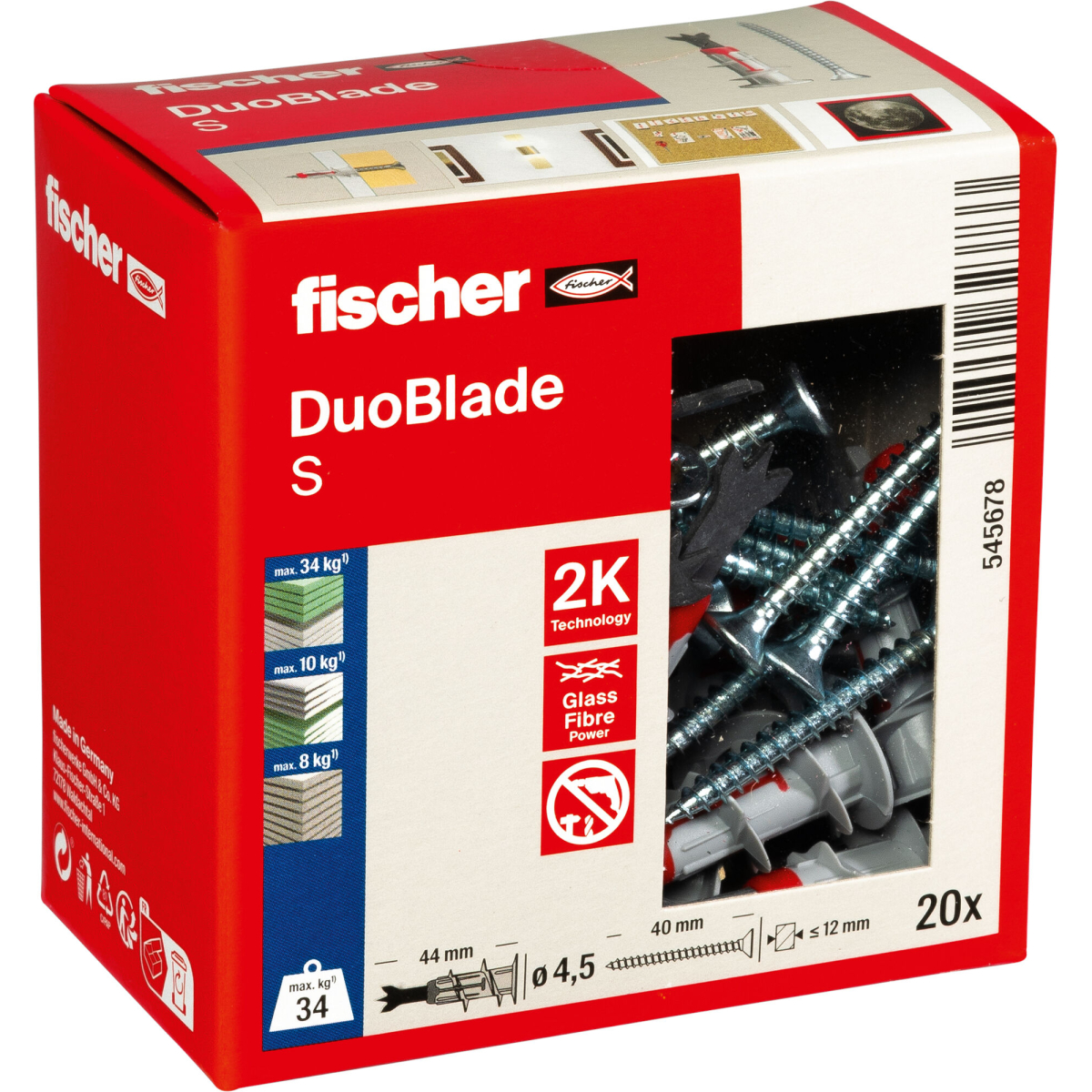

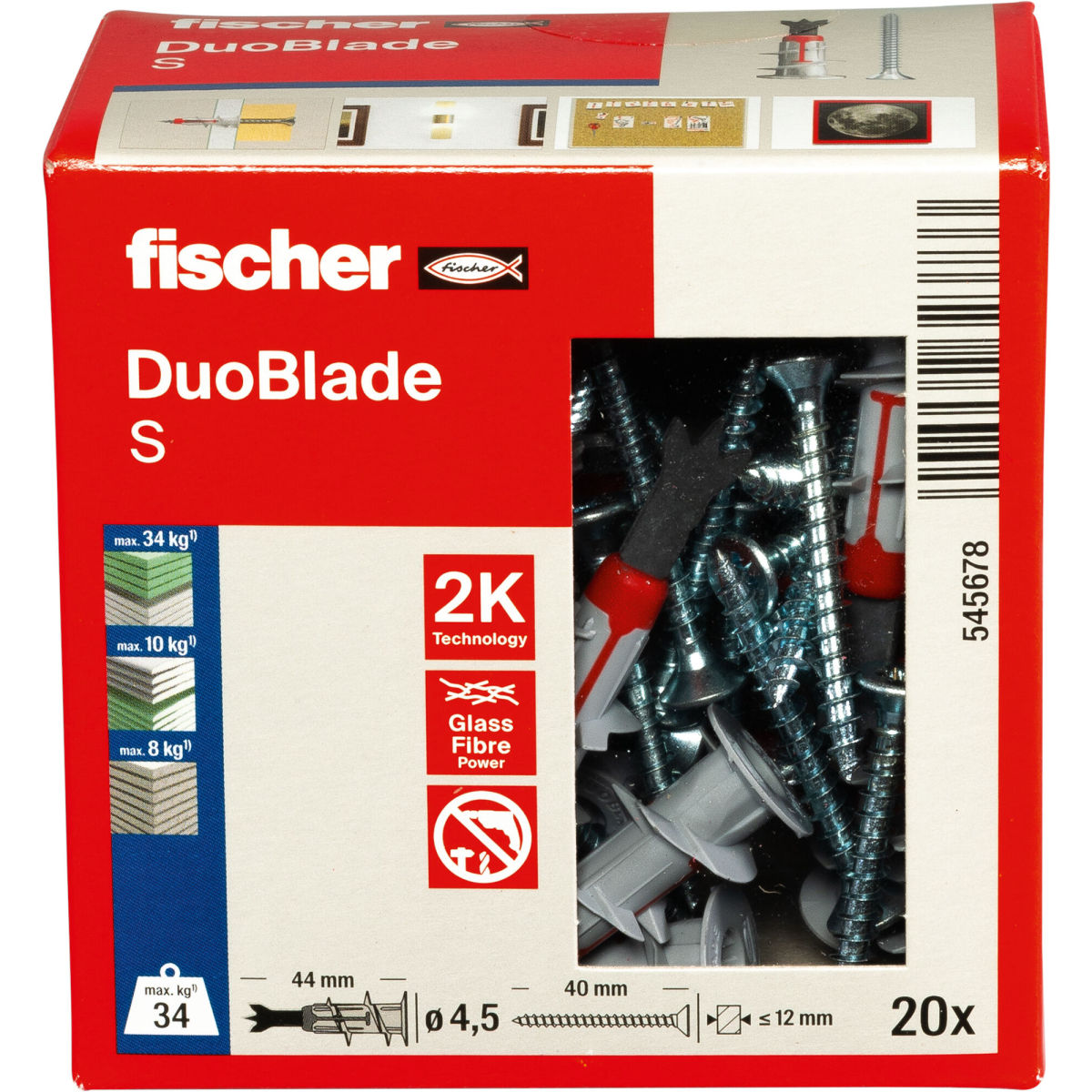

Min. thickness to first supporting layer(t) 50 mm Anchor length(l) 44 mm Anchor length without drill tip(l1) 29 mm Anchorage depth(hef) 9.5-25 mm Min. bolt penetration(lE,min) 28 mm Max. load in gypsum fibreboard 12.5 mm 34 kg Max. load in gypsum plasterboard 12.5 mm 10 kg Max. load in gypsum plasterboard 9.5 mm 8 kg Max. load in gypsum plasterboard 2x12.5 mm 20 kg Contents 20 x DuoBlade 20 x chipboard screw 4.5 x 40 Packaging Folding box Amount 20 pcs GTIN (EAN-Code) 4048962323733
