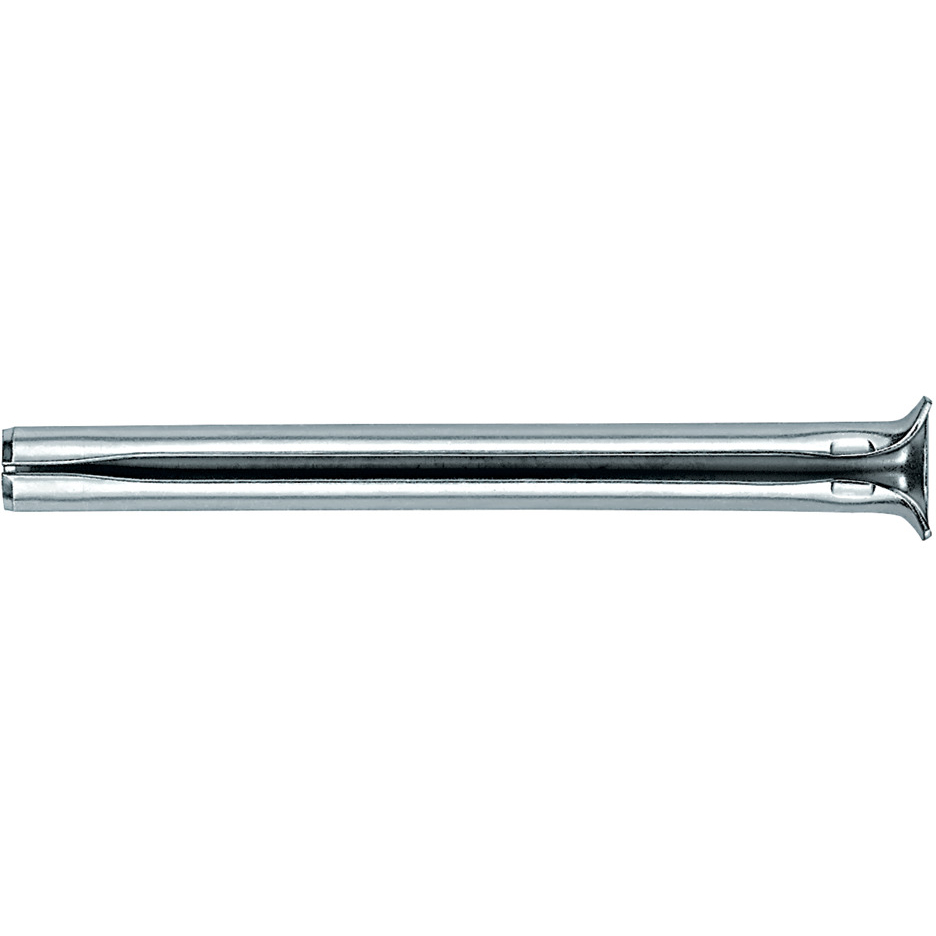

Fischer 541905 Nail Sleeve FNH 8/90 Pack x 50
The user-friendly spring sleeve for light fixings in solid building materials
Order within
SKU
FIS-541905
Barcode
4048962293319
£37.79
(
£31.49
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Fischer 541905
- The fischer nail sleeve FNH is a user-friendly spring sleeve made out of corrosion-resistant steel
- The nail sleeve is driven into the through-type installation in a time-saving manner with the hammer, and expands along its whole length in the drill hole
- This allows timber and metal sub-constructions, metal profiles, and squared timbers to be fixed in solid building materials in a cost-effective manner in interior areas and temporarily in external areas
Top Features
- Knock in with the hammer - finished
- Fixing without screws and plugs
- This saves time and lowers costs
Functionality
- The FNH nail sleeve is suitable for push-through installation
- The nail sleeve is hammered in and expands its entire length in the hole
- FNH is suitable for interior applications and for temporary external fixings
Advantages
- No plugs or screws are required for the one-piece nail sleeve
- This guarantees a simple and easy installation
- The geometry of the nail sleeve makes it easy to push it into the drill hole
- This saves time and money
Load Table Document for Downloading
Features / Specification
| Technical Data |
|---|
| Drill diameter 8 [mm] |
| Effect. anchorage depth 40 [mm] |
| Anchor length 90 [mm] |
| Max. fixture thickness 50 [mm] |
| Min. drill hole depth for through fixings 100 [mm] |
| Amount 50 [St.] |
| GTIN (EAN-Code) 4048962293319 |
| Applications |
| Squared timbers |
| Substructures made of wood and metal |
| Metal profiles |
| Building materials |
| Concrete |
| Solid sand-lime brick |
| Natural stone with dense structure |
| Solid brick |
