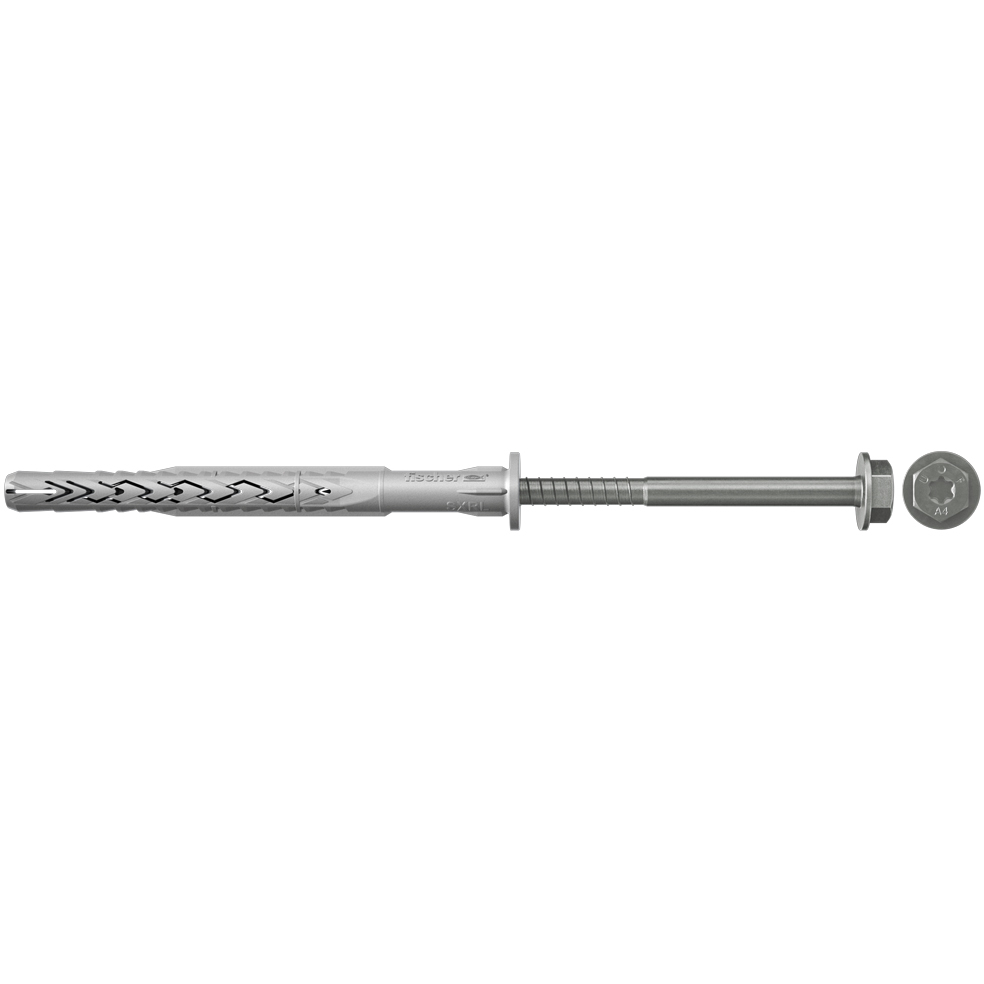

Fischer 540135 Frame Fixing SXRL 8 x 60mm FUS A4 Stainless Steel Box x 50

• The fischer frame fixing SXRL-FUS A4 is approved along with the fischer hexagon head screw with moulded washer and integrated bit holder T30 for multiple fixings of non-load-bearing systems in masonry, concrete, and aerated concrete
• The two expansion zones in the fixing induce forces equally into perforated masonry, these combine to form a long expansion element in aerated concrete and solid building material
• The frame fixing with the safety screw made out of stainless steel is suitable for fixings of metal constructions in outdoor areas.

Top Features

• ETA rating with excellent load values: Safe multiple fixings of non-structural systems in concrete and masonry
• The long expansion element makes the SXRL versatile
• Loads are applied evenly to the building material thanks to the fixing geometry
• This means that the fillets are not destroyed in the case of thin-walled building materials.
• Simple to assemble: Ribs prevent plug rotation during installation.

Functionality

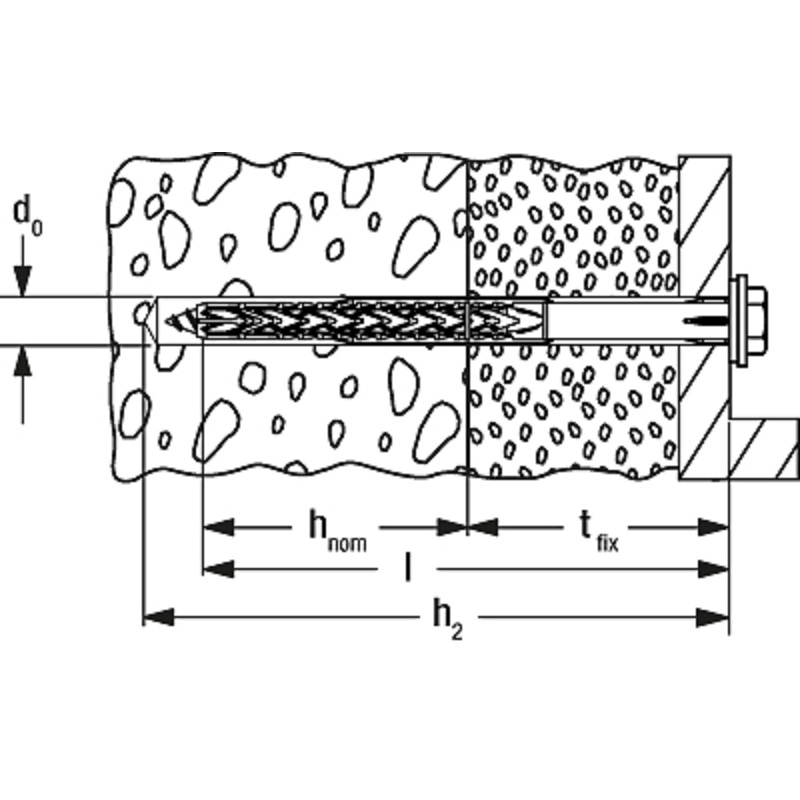

• The SXRL is suitable for push-through installation. In perforated brick masonry a force transmission that protects the substrate is guaranteed through the two expansion zones
• The porous block fillets are not crushed by the second expansion zone an therefore serves to transmit the force
• In aerated concrete and solid building materials, the two expansion zones combine to form one long expansion element, thus providing for a uniform and flat distribution of the load into the substrate
• Recommended for the fixing of metal constructions
• The SXRL-T with countersunk head screw is recommended for the fixing of wood constructions.

Technical Downloads

http://content.fischer.de/cbfiles/Fischer/Zulassungen/ETA/ZD_ETAB_F_07-0121_%23SEN_%23AIP_%23V4.pdf

http://content.fischer.de/cbfiles/fischer/Zulassungen/ZD_DOP_SXR-SXRL-2_F_%23SALL_%23AIP_%23V1.pdf

Load Table

https://content.fischer.de/cbfiles/fischer/lastentabelle/lt_01_sxrl_f_%23sen_%23aip_%23v6.pdf
