- Description
-
Details

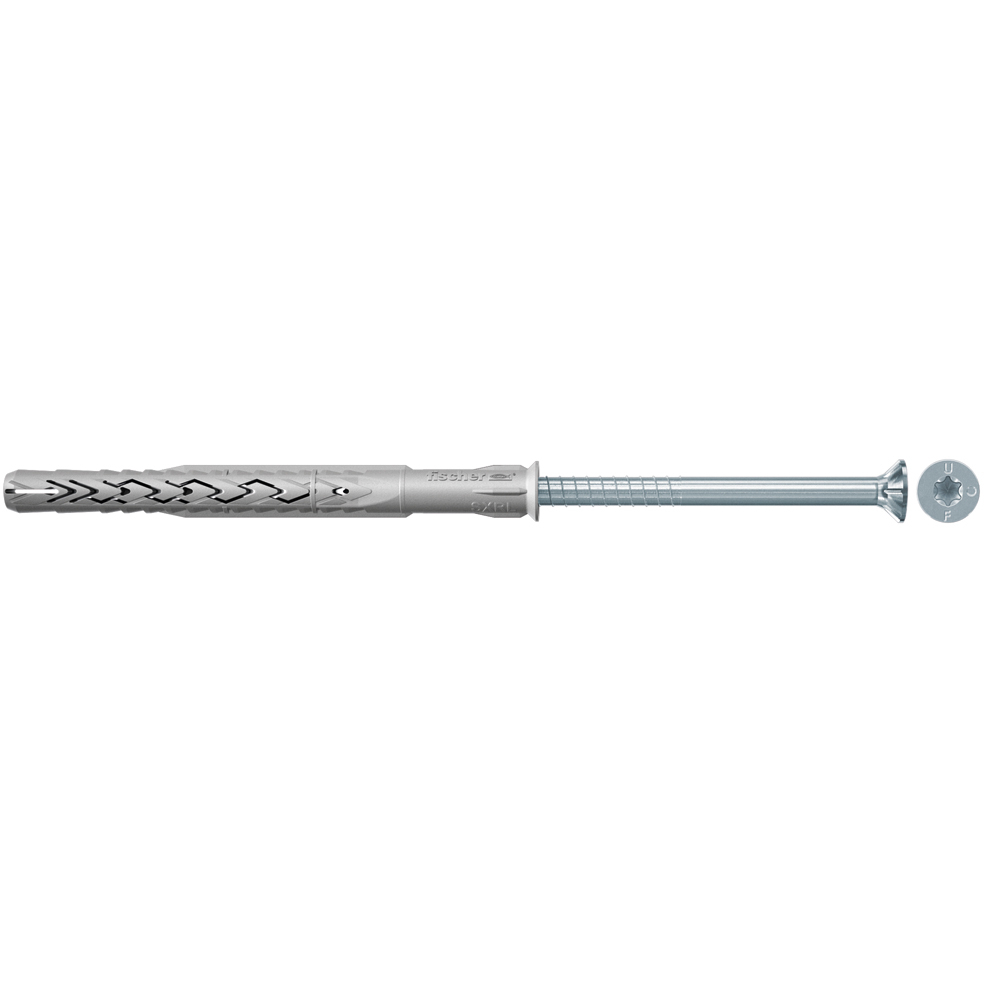

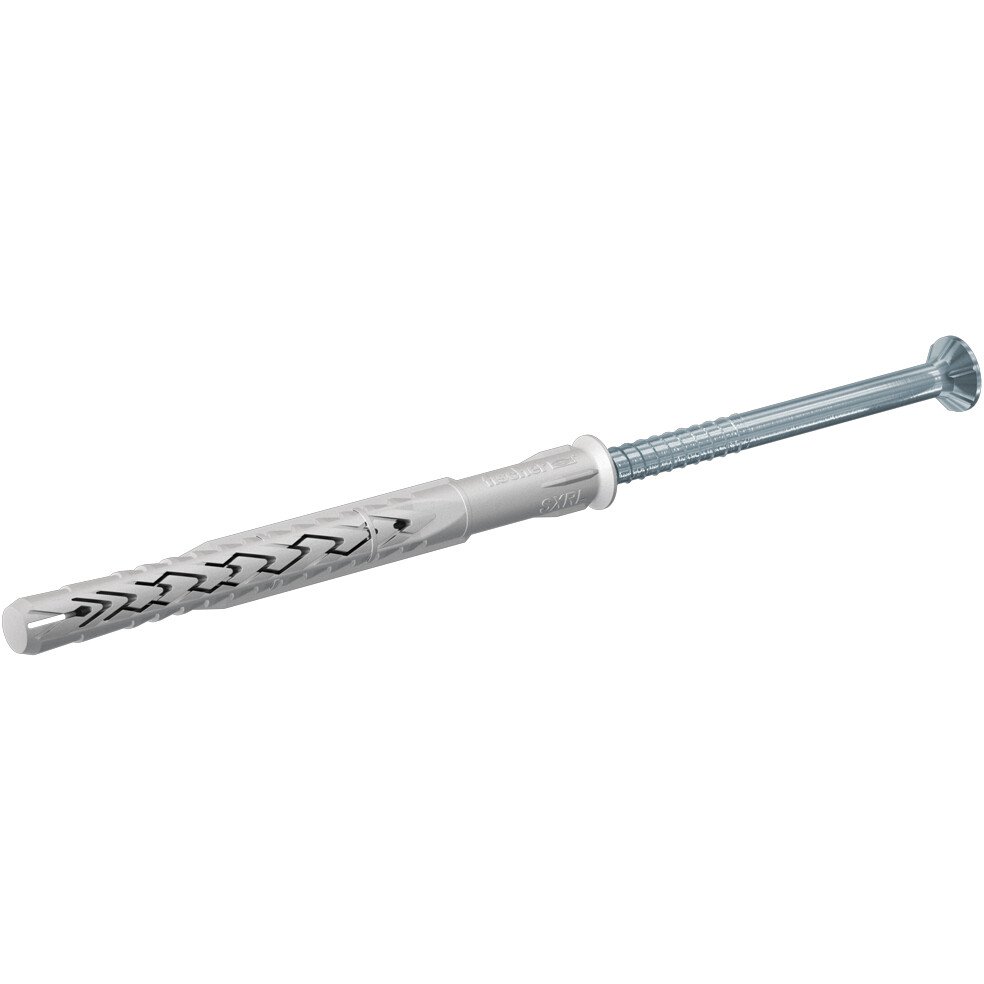

- The Fischer frame fixing SXRL-T is approved along with the fischer countersunk head screw with T30 drive for multiple fixings of non-load-bearing systems in masonry, concrete, and aerated concrete
- The two expansion zones in the fixing induce forces equally into perforated masonry, these combine to form a long expansion element in aerated concrete and solid building material
- The frame fixing with the safety screw made out of zinc-plated steel is suitable for fixings in internal areas such as windows, coat racks, wall cupboards, or TV consoles.
Top Features
- ETA rating with excellent load values: Safe multiple fixings of non-structural systems in concrete and masonry.
- The long expansion element with two anchorage depths makes the SXRL versatile
- Loads are applied evenly to the building material thanks to the fixing geometry
- This means that the sides are not destroyed in the case of thin-walled building materials
- Simple to assemble: Ribs prevent plug rotation during installation.
Advantages
- The long expansion element with multiple anchorage depths makes the SXRL an extremely versatile product
- Through the special geometry of the plug, the retention forces are evenly distributed in the drill hole
- When anchoring in hollow and solid building materials, the two expansion zones lead to optimum load bearing capacity
- When it is to be set deep, the longer ribs prevent the plug from turning during installation.
Functionality

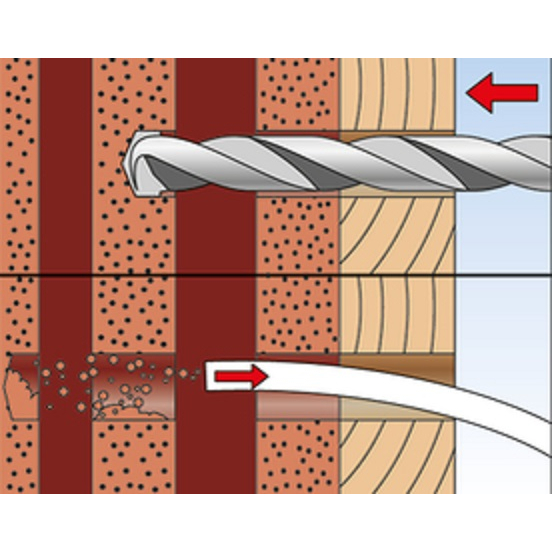

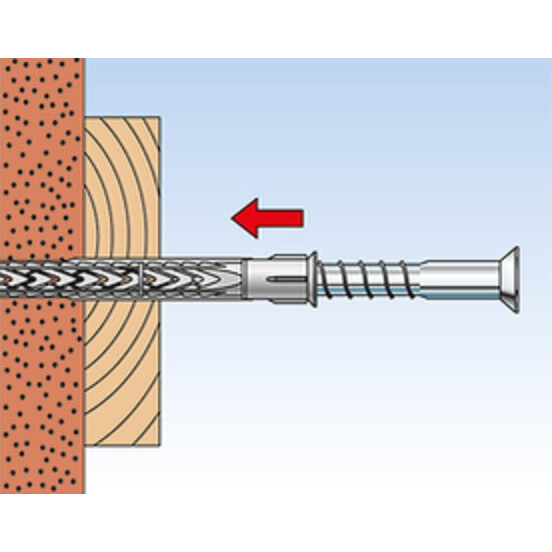

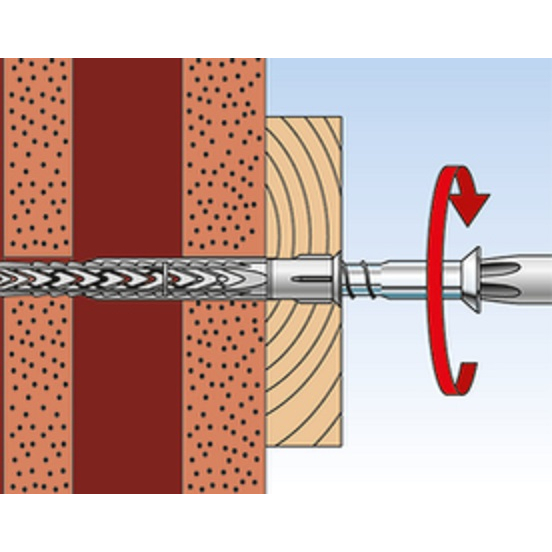

- The SXRL is suitable for push-through installation

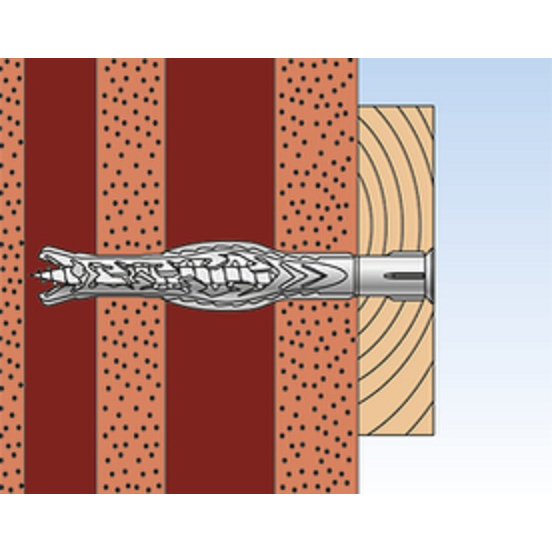

- In perforated brick masonry a force transmission that protects the substrate is guaranteed through the two expansion zone
- The porous block fillets are not crushed by the second expansion zone an therefore serves to transmit the force
- In aerated concrete and solid building materials, the two expansion zones combine to form one long expansion element, thus providing for a uniform and flat distribution of the load into the substrate

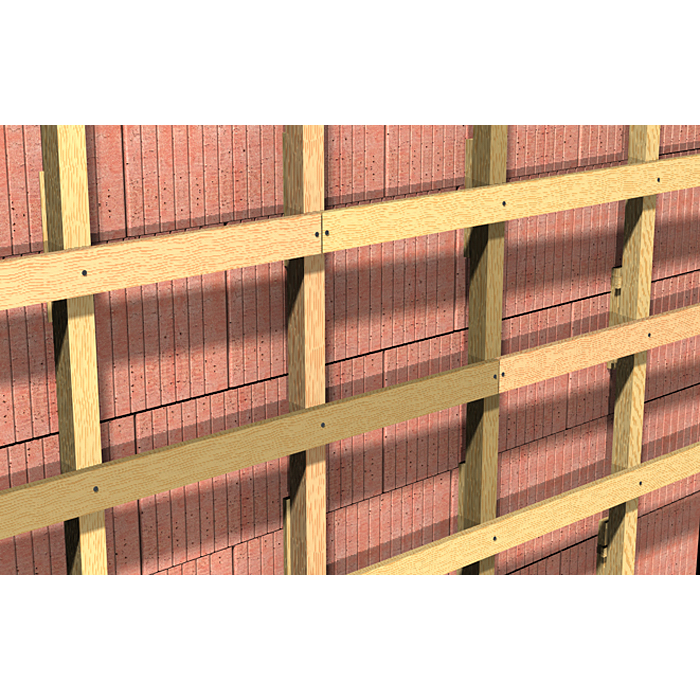

- Recommended for the fixing of wood constructions

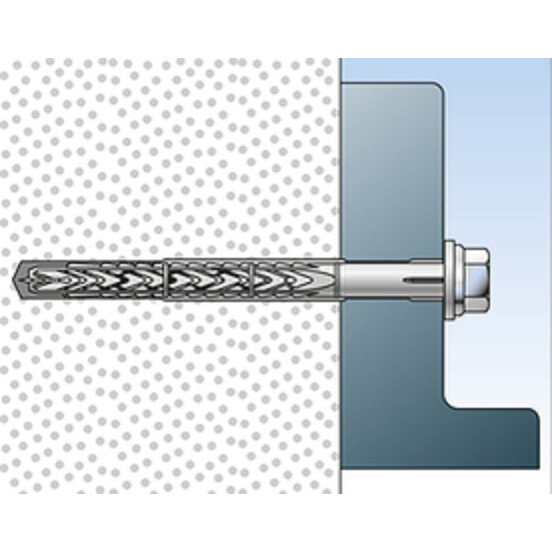

- The SXRL-FUS with a wide sleeve rim plug and hexagonal screws with moulded washers is recommended for the fixing of metal constructions.
- Features
Features

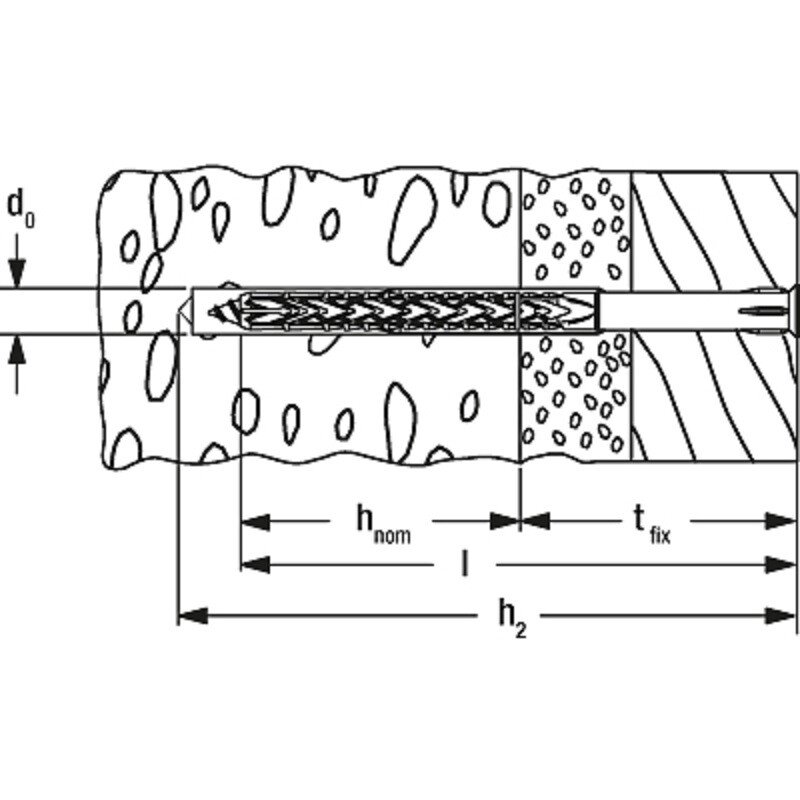

DIBt-approval ETA-approval Drill diameter (d0) 14 mm Anchor length (l) 330 mm Min. drill hole depth for through fixings (h2) 345 mm Usable length at anchorage depth 70 mm (tfix) 260 mm Usable length at anchorage depth 90 mm (tfix) 240 mm Drive TX50 Packaging Folding box Amount 20 pcs GTIN (EAN-Code) 4048962206517 Applications Motion detectors Façade, ceiling and roof substructures made of wood Windows Guide rails Wardrobes Handrails Radiators Blinds / folding shutters Cable ducts Cable trays Squared timbers Kitchen hanging cabinets Lighting Metal brackets Metal supports Gates and doors TV consoles Wall covering Shelves Beams Building materials Approved for: Vertically perforated brick Aerated concrete Hollow blocks made from lightweight concrete Perforated sand-lime brick Thermal insulation blocks Solid block made from lightweight and normal weight concrete Solid brick Solid sand-lime brick Concrete ≧ C12/15 Also suitable for: Natural stone with dense structure Solid panel made from gypsum
