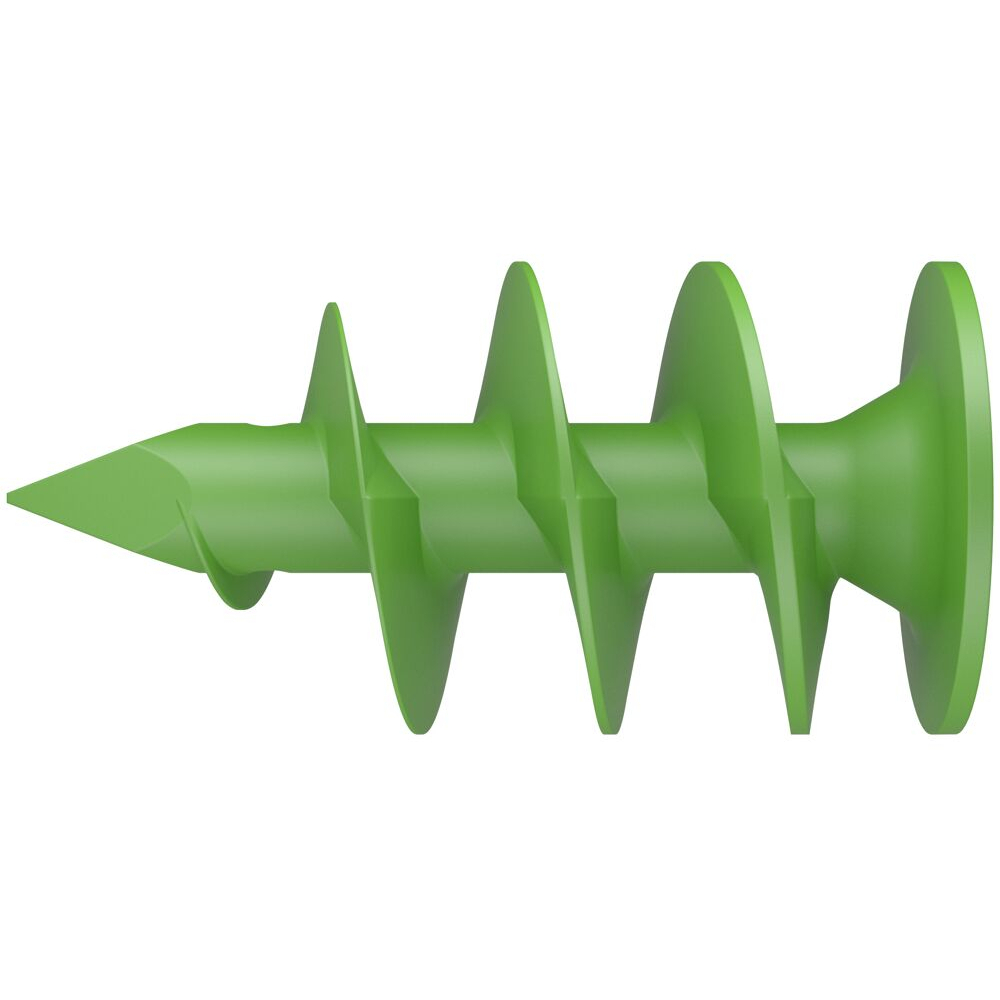

Fischer 524851 Insulation Fixing FID GREEN 50 Pack x 45

• At least half of the materials used to create the granules for producing fischer insulation fixing FID Green are gained from sustainable raw materials
• These do not compete with cultivation areas for food and feed products
• FID Green has the same performance properties and load-carrying properties as the original
• Lightweight components in plastered and un-plastered insulation panels made of polystyrene and polyurethane are mounted using FID
• The fischer FID Green can be set either by hand, or with a cordless screwdriver
• The special spiral thread taps itself in the insulating board
• Components such as letter boxes, lamps or motion detectors can be mounted using a 4 to 4.5 mm screw

Top Features

• No pre-drilling necessary in thin layers of plaster
• This saves time
• With integrated bit mounting
• This means that no special setting tool is required
• This allows for a fast installation
• Made with renewable raw materials

Advantages

• Since the anchor is set exclusively in the insulation itself, fixtures can be installed without thermal bridges
• The geometry of the FID allows for a simple installation in thin layers of plaster, without the need for pre-drilling, thus saving a stage of installation
• The FID 50 is used in thin insulating boards from 50mm
• The FID 90 is used in thicker insulating boards, and can bear higher loads
• The bit mounting allows for setting with standard tools, thus allowing for a fast and economic installation

Functionality

• The FID can be set in the insulating board with a cordless screwdriver or by hand
• For thick layers of plaster a pre-drilling (6 mm) is recommended
• The special spiral thread taps itself in the insulating board
• Fixtures are fixed with a 4 to 4.5 mm screw for the FID 50
• Water ingress in the insulation can be prevented by sealing the plug collar with a suitable sealant after successful pre-positioned installation

Load Table

https://fiproductmedia.azureedge.net/media/Load%20Tables/Load%20Tables%20fischer/LT_01_FID_F_SEN_AIP_V1.pdf
