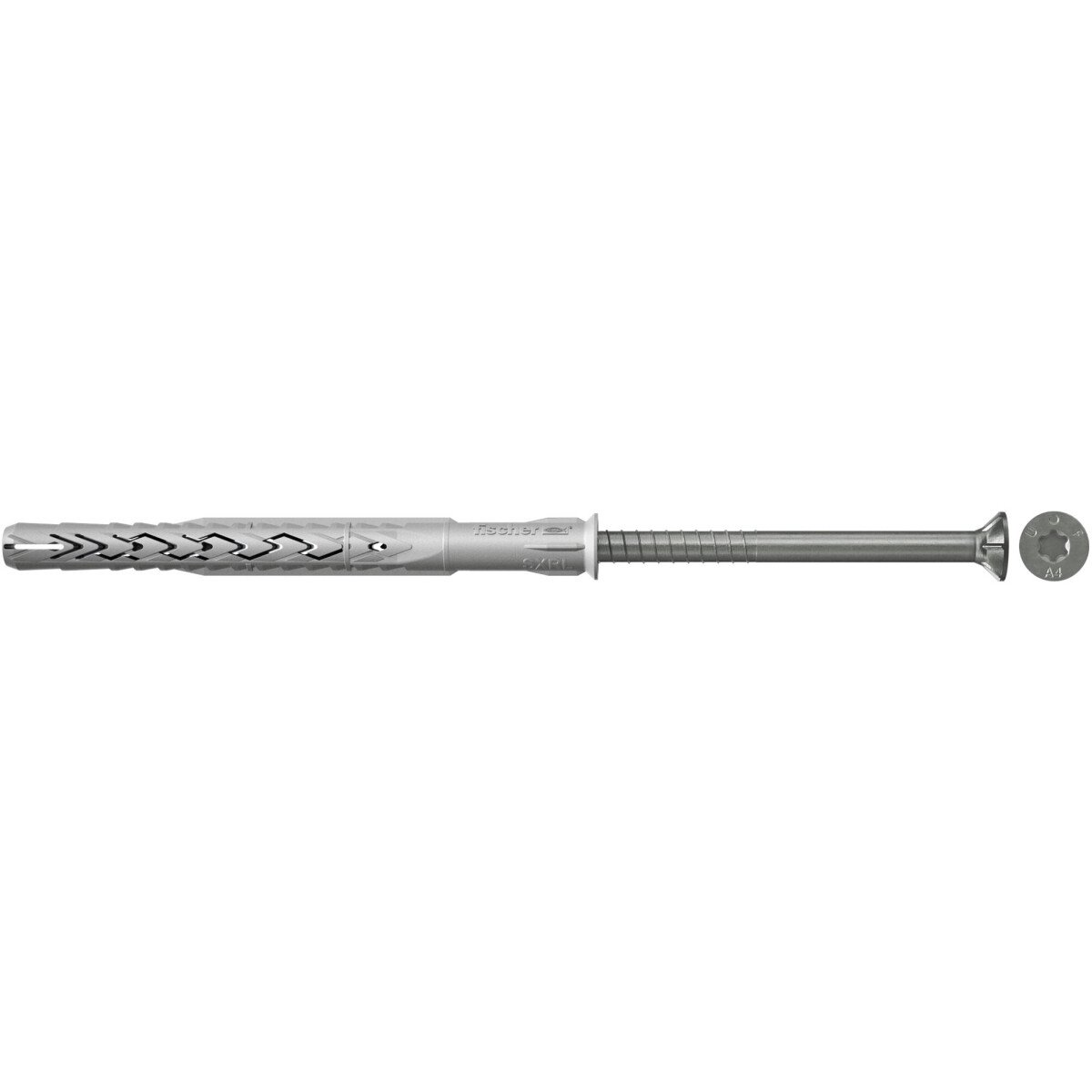

Fischer 522717 Frame Fixing SXRL 10 x 260 T R Stainless Steel Pack x 50

• The fischer frame fixing SXRL-T R is approved along with the fischer countersunk head screw with TX drive for multiple fixings of non-load-bearing systems in masonry, concrete, and aerated concrete
• The two expansion zones in the fixing induce forces equally into perforated masonry, these combine to form a long expansion element in aerated concrete and solid building material
• The frame fixing with the safety screw made out of stainless steel is suitable for fixings in external areas such as façade, ceiling, and roof sub-structures
• ETA assessment with excellent load values: Safe multiple fixings of non-structural systems in concrete and masonry
• The long expansion element makes the SXRL versatile
• Loads are applied evenly to the building material thanks to the fixing geometry
• This means that the fillets are not destroyed in the case of thin-walled building materials
• Simple to assemble: Ribs prevent plug rotation during installation

Functionality

• The SXRL is suitable for push-through installation
• In perforated brick masonry a force transmission that protects the substrate is guaranteed through the two expansion zones
• The porous block fillets are not crushed by the second expansion zone an therefore serves to transmit the force
• In aerated concrete and solid building materials, the two expansion zones combine to form one long expansion element, thus providing for a uniform and flat distribution of the load into the substrate
• Recommended for the fixing of wood constructions
• For metal constructions, plugs with a wide sleeve rim and hexagonal screws with moulded washers are recommended.
