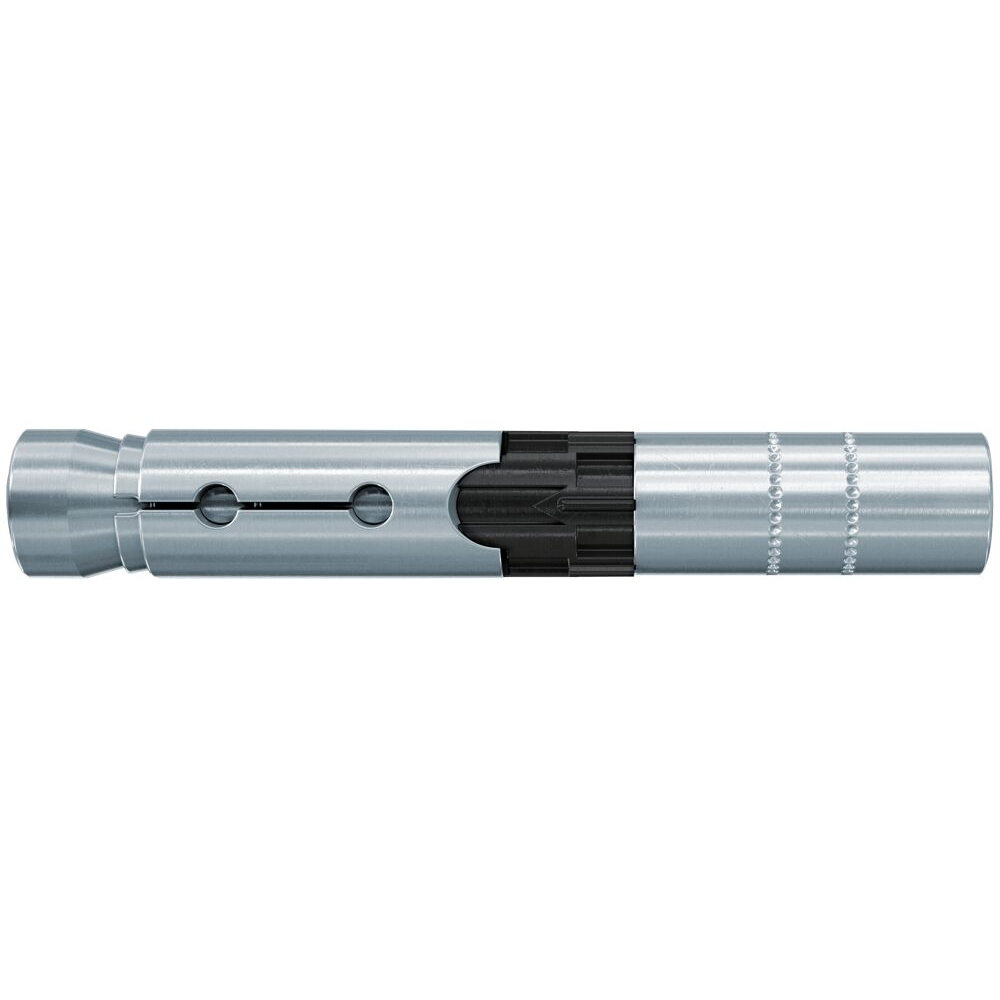

Fischer 520361 High performance anchor FH II 12/8 HR with internal thread Stainless steel Pack x 25

• The fischer high-performance anchor FH II-I is an internal threaded anchor made of stainless steel for using outside
• The anchor is set in the pre-positioned installation
• During installation with a hex driver the cone is pulled into the expansion sleeve and expands it against the hole wall
• At the same time, the anchor is tightened through the compression on the black, plastic ring
• This means that the anchor sleeve sits below the edge of the drill hole in an approval-compliant manner
• The fischer high-performance anchor FH II-I is ideal for fixing air-conditioning units, sprinkler systems, and pipeline routes

Advantages

• The international approvals guarantee maximum safety and the best performance
• The internal threaded anchor allows the removal of the attachment and the fixing point can be reused
• The design between the bolt and the sleeve ensures high shear load-bearing capacity
• Thus, fewer fixing points are required
• The optimised geometry intelligently reduces the energy required for assembly
• The approval regulates the use of hollow drills

Functionality

• The FH II-I is suitable for pre-positioned installation
• When a hexagon wrench is used for installation, the internal thread bolt starts to rotate
• This pulls the cone into the expansion sleeve and expands it against the drill-hole wall
• At the same time, the anchor is tightened through compression of the black plastic ring
• A gap U to the concrete surface is created
• The anchor is set according to the approval when the gap U is 3-5 mm
• Alternatively, an installation torque of Tinst can also be applied

ETA Documents for Downloading

https://fiproductmedia.azureedge.net/media/Certification%20Documents/ETA%20European%20Technical%20Assessment/fischer/ZD_ETAB_F_07-0025_SEN_AIP_V5.pdf
