Fischer 519775 Metal Cavity Fixing HM 5 x 65 S with Metric Screw Pack x 50
The versatile metal cavity fixing with metric screw.
SKU
FIS-519775
Barcode
4048962164886
£13.85
(
£11.54
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Fischer 519775
- The Fischer cavity metal anchor HM-S is a versatile cavity fixing with a metric screw for all panel building materials
- The fixing is set with the Fischer installation pliers HM-Z 1 in the pre-positioned installation
- The fixing is pulled in the cavity against the board building material with the pliers
- In this case, the expanding arms swing open and press onto the reverse side of the board
- Alternatively, assembly can be carried out either with a screwdriver or a cordless screwdriver
- The cavity metal anchor HM-S is suitable for fixing lights, towel rails, and curtain rails.
- The metal cavity fixing HM is suitable for pre-positioned installation
- The fixing should be selected based on the thickness of the board building material, to allow the very best expansion in the cavity
- During installation, the expanding arms swing open and press onto the reverse side of the board
- The HM can be installed using installation pliers.
- If using a battery operated screwdriver or screwdriver for installation, the pre-assembled screws must be removed first.
- When screwing in and expanding the fixing, the attachment, or a max. 6 mm plate, needs to be used as a turning stop.
Features / Specification
| Applications: | |
|---|---|
| Pictures | |
| Lighting | |
| Light shelves | |
| Towel rails | |
| Mirror cabinets | |
| Curtain rails | |
| Sub-structures | |
| Building materials: | |
| Gypsum plasterboard and gypsum fibreboards | |
| Cavity floor slabs | |
| Light building boards made of wood wool | |
| Chipboard | |
| Plywood boards | |

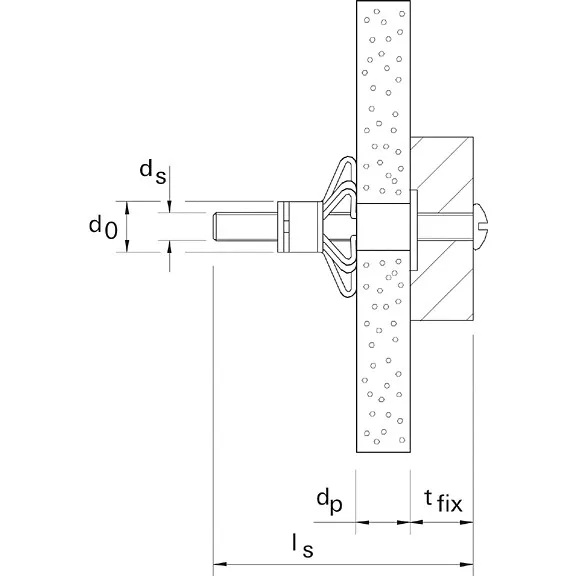

| Drill hole diameter d0 10 [mm] | |
| Panel thickness dp 20 - 34 [mm] | |
| Anchor length l 65 [mm] | |
| Min. drill hole depth h1 71 [mm] | |
| Amount 50 Unit(s) |
