- Description
-
Details

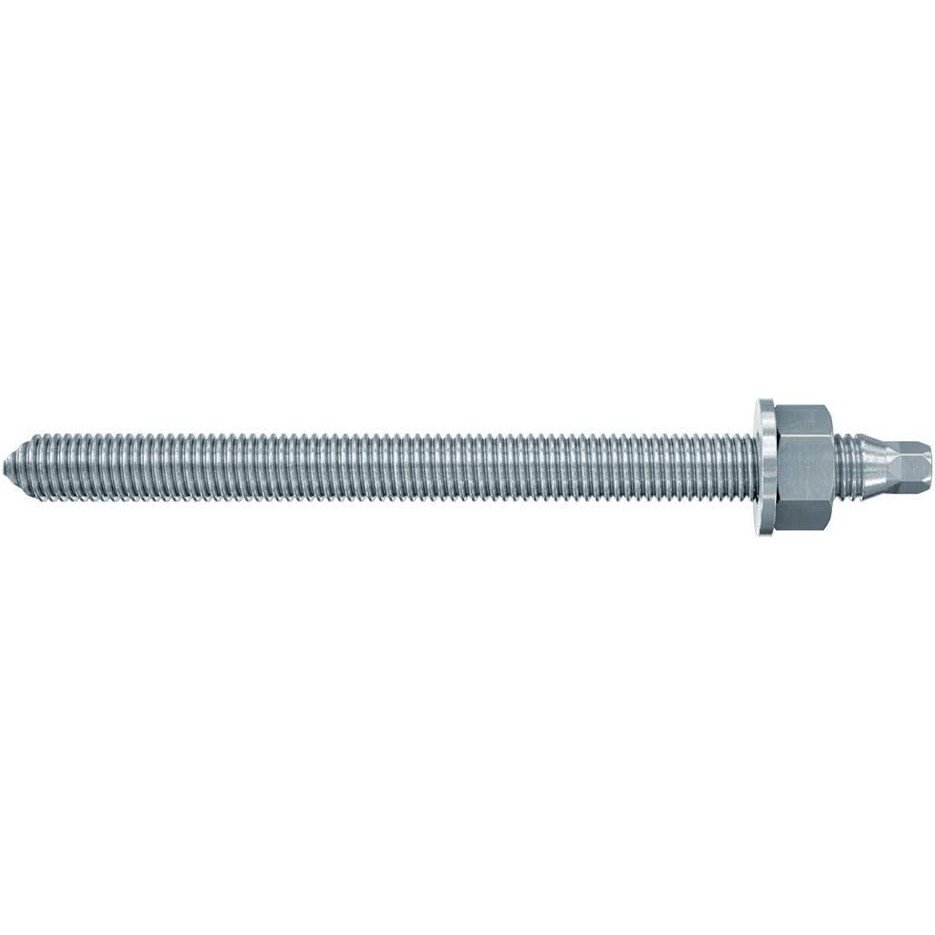

- The fischer rod anchor RG M is made of zinc-plated steel with a grade of 8.8
- The anchor rod is a systems accessory for various fischer mortar cartridges or injection mortars
- Application with pre-portioned mortar cartridges is especially cost-effective for individual fixings
- During mounting with the resin capsule, set the fischer anchor rod RG M through rotating and hitting motions with a hammer drill
- The capsule is destroyed during the setting process, which mixes and activates the mortar compound
- During mounting with injection mortars, the anchor rod is pushed into the drill hole manually by lightly rotating it
- The system is particularly suitable for cost-effective fixing of machines, steelwork constructions, and supporting feet in internal areas
- Features
Features
ETA-approval Drill hole diameter Injection mortar (d0) 24 mm Drill hole diameter resin capsule (d0) 25 mm Anchorage depth (hef) 170 mm Max. fixture thickness (tfix) 176 mm Thread (M) M20 Width across nut 30 mm Packaging Folding box Amount 10 pcs GTIN (EAN-Code) 4048962161908 Applications Anchorings with resin capsule RSB and RSB mini Anchorings with resin capsule RM II Anchorings with each of the fischer injection mortars FIS SB, FIS EM, FIS EB, FIS V, FIS VL, FIS P Plus, FIS P, and FIS Green Building materials In connection with the fischer resin capsules approved or suitable for cracked and non-cracked concrete. In connection with several fischer injection mortars approved or suitable for different building materials. You can find detailed information on building materials in the registration document. Approvals ETA-02/0024 ETA-20/0603
