Fischer 514871 Hammerfix N 6 x 40/7 P (Pack x 200)
The hammer-in plug with mushroom head for simple, fast and economic installation
Order within
SKU
FIS-514871
Barcode
4048962132106
£13.85
(
£11.54
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Fischer 514871
- The fischer Hammerfix N-P with raised countersunk head consists of a high-quality nylon plug and a nail screw made of zinc-plated steel
- These are already pre-fitted for quick assembly
- The Hammerfix is led through the component in the time-saving through-type installation

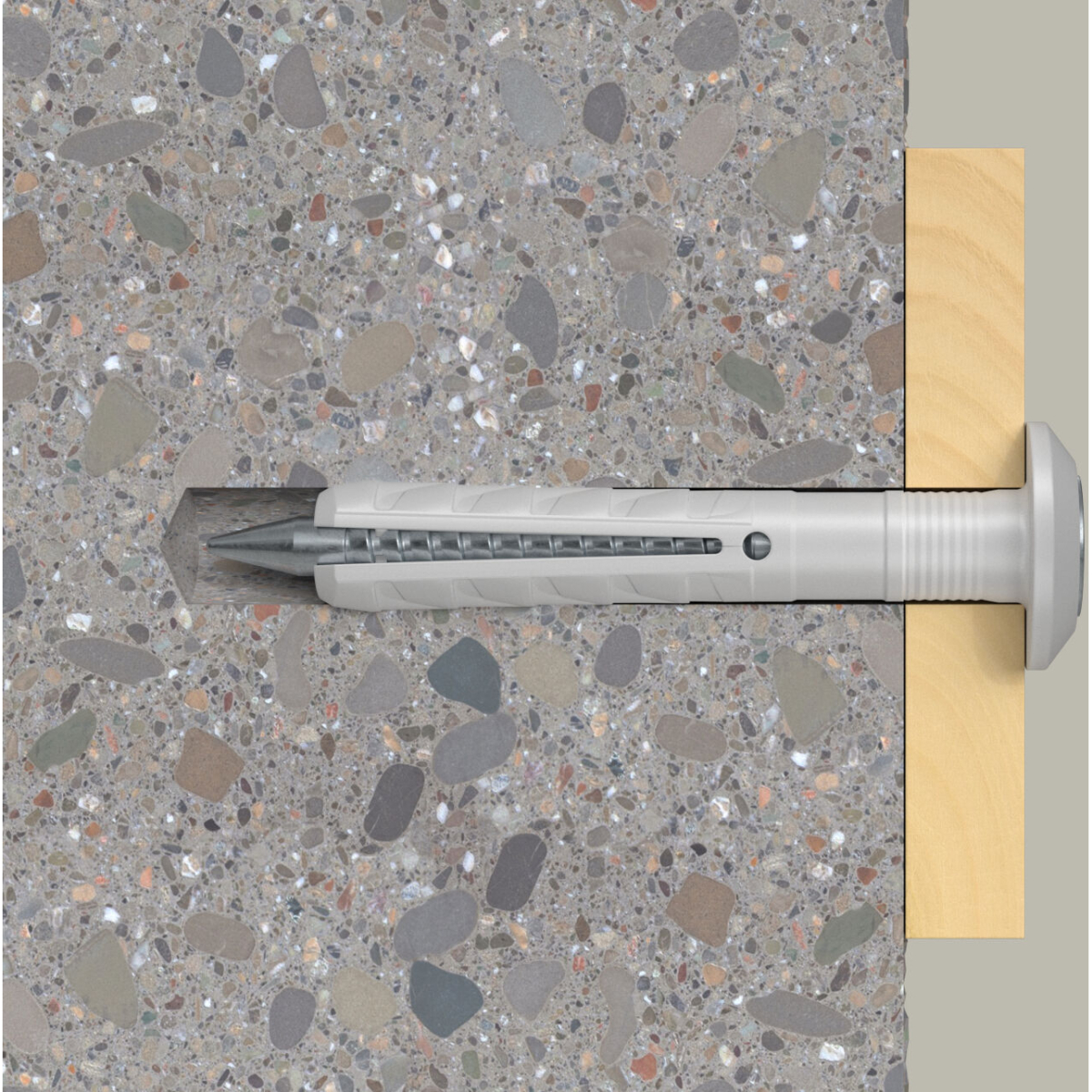

- When driving in the nail screw, the fixing sleeve expands and anchors itself securely in the building material
- The fischer Hammerfix N-P with raised countersunk head is ideal for fixing of thin components and components with slots, especially in the viewing area (internal areas)
Top Features
- Fast Hammerset installation saves time: ideal for series installation
- Simple and secure installation: Integrated hammer-in stop prevents premature anchor spreading
- Subsequent dismantling of the nail screw with a cross-slot recess is possible
- With mushroom head.
Advantages
- Time and money savings thanks to fast hammerset installation
- This enables cost-effective series installations
- Easy installation thanks to integrated hammer-in stop
- This avoids the premature expansion of the plug
- Increased flexibility due to subsequent dismounting
- The thread of the nail screw in conjunction with the cross-slot recess allows the screw to be screwed out
- Diverse usage possibilities thanks to the large assortment in different diameters and usable lengths.
Features / Specification
| Drill diameter (d0) 6 mm |
|---|
| Effect. anchorage depth (hef) 30 mm |
| Anchor length (l) 40 mm |
| Min. drill hole depth for through fixings (h2) 55 mm |
| Max. fixture thickness (tfix) 7 mm |
| Drive PZ2 |
| Packaging Folding box |
| Amount 200 pcs |
| GTIN (EAN-Code) 4048962132106 |
| Applications |
| Slides |
| Sheets |
| Signs |
| Mounting in the viewing area |
| Building materials |
| Concrete |
| Solid sand-lime brick |
| Building brick |
| Natural stone |
| Solid brick made from lightweight concrete |
| Aerated concrete |
| Solid panel made from gypsum |
