- Description
-
Details

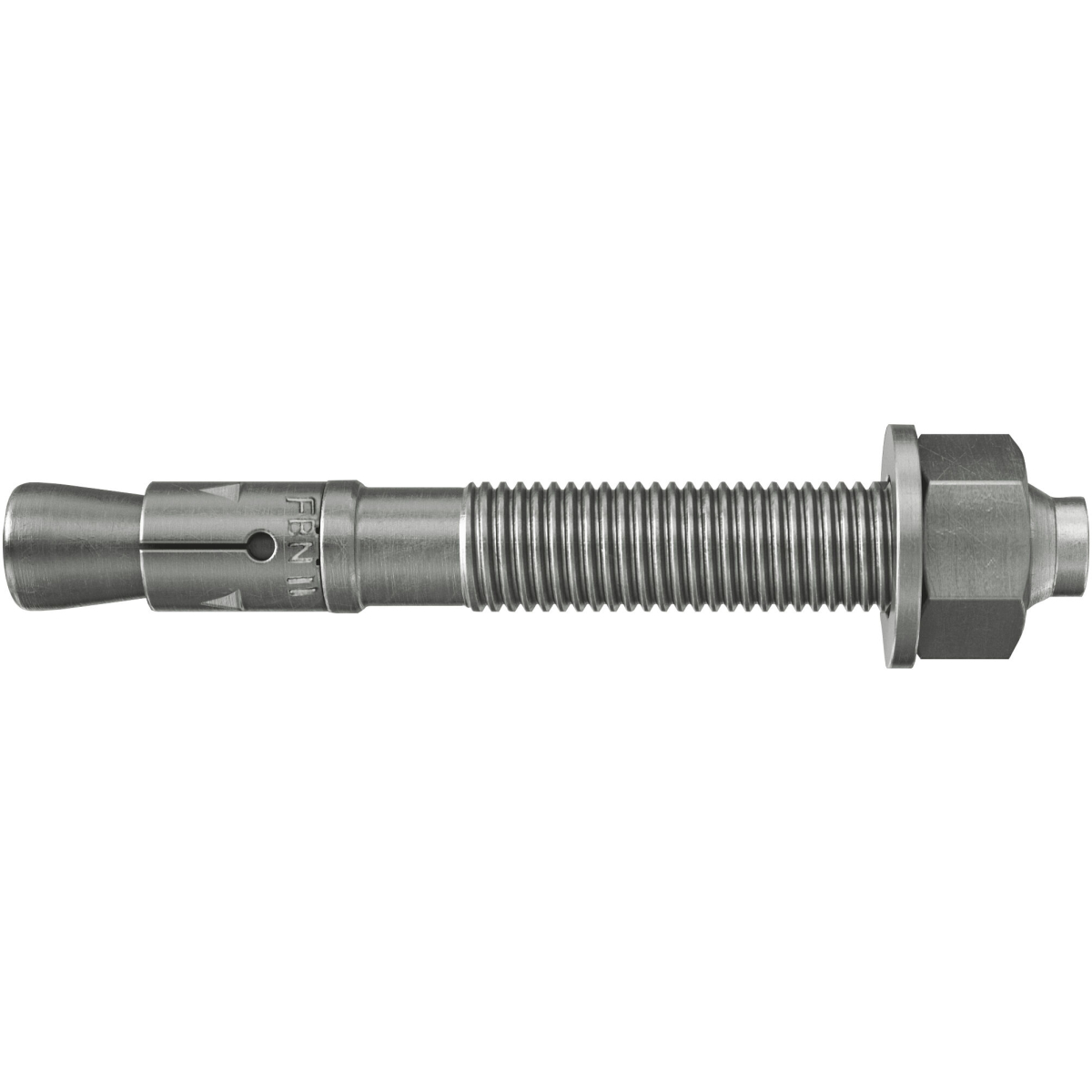

- The fischer bolt anchor FBN II is a steel anchor for cost-effective fixings in non-cracked concrete
- Due to the long thread and the two anchorage depths, the fischer bolt anchor FBN II can be used in a particularly flexible manner
- The bolt anchor is also suitable for stand-off installation as well as pre-positioned and in push-through installation
- The stainless steel version of the bolt anchor is suitable for fixing façade sub-structures, consoles, and ladders in external areas.
Advantages
- The standard anchorage depth achieves the maximum load-bearing capacities
- Thus fewer fixing points and smaller anchor plates are required
- The reduced anchorage depth reduces the drill hole depth
- This minimises the amount of time needed for installation whilst increasing flexibility
- The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility
- Few hammer blows and the minimal torque slippage allow for a noticeably simpler installation
- The drive-in pin protects the thread from damage, and thus ensures a faster installation and dismantling of the attachment
Functionality
- The FBN II is suitable for pre-positioned and push-through installation; also suitable for stand-off installation under certain conditions
- Prior to installation, place the hexagon nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hexagon nut)
- When applying the torque, the cone bolt is pulled into the expansion clip and expands it against the drill hole wall
- The head embossing offers a simple control of the anchoring
- In the case of series installation, we recommend using the FABS bolt anchor setting tool.
- Features
Features
ETA-approval Drill diameter(d0) 20 mm Min. drill hole depth for through fixings(h2) 195 mm Anchor length(l) 217 mm Max. usable length hef,stand./hef,min.(tfix) 60 / 85 mm Thread(ø x length) M20 x 90 mm Width across nut 30 mm Packaging Folding box Amount 10 pcs GTIN (EAN-Code) 4048962087598
