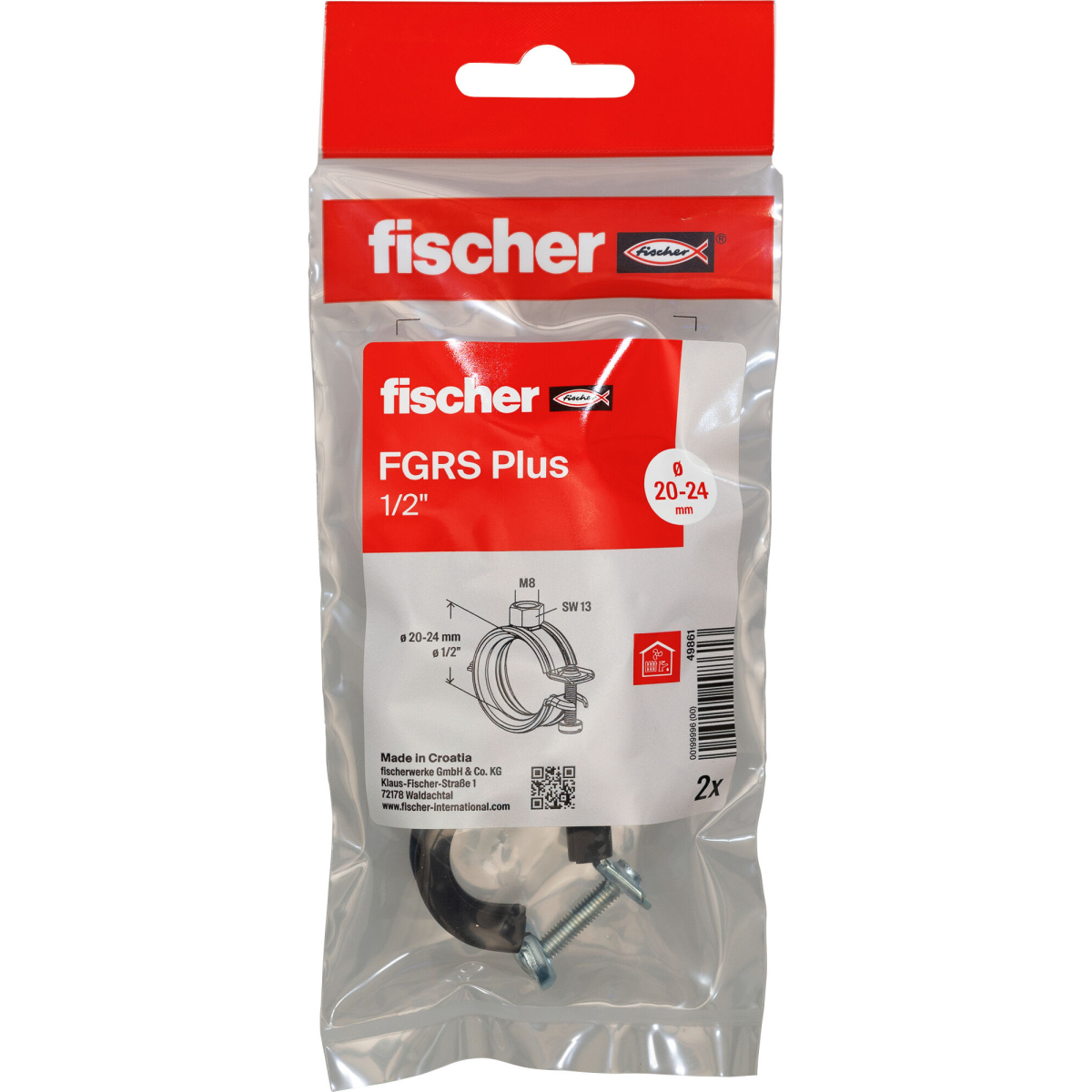

Fischer 49861 Hinged pipe clamp FGRS Plus 1/2" B Pack x 2

• The fischer hinged pipe clamp FGRS Plus is a pipe clamp with a screw made from zinc-plated steel in material quality DD11 with a combination M8/M10 thread
• The rapid locking mechanism and combination thread enable an easy, time-saving installation process
• The engaging of the safety locking mechanism ensures the safe adjustment of the pipe without the clamp springing open

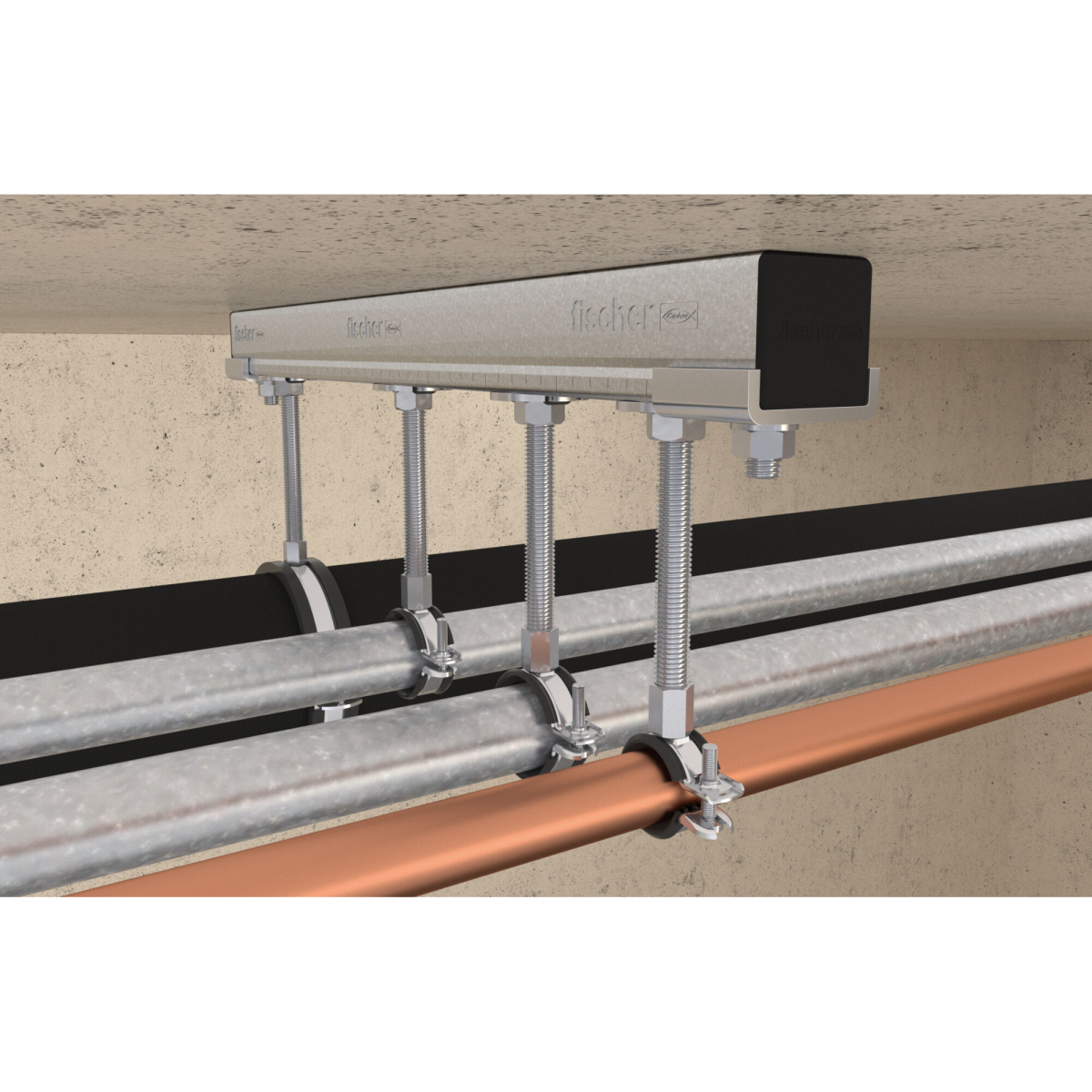

• This allows pipelines with an outer diameter of 12 - 63 mm to be securely fixed with a threaded rod or stud screw indoors
• With a chlorine-free and silicone-free sound insulation insert, the pipe clamp meets the requirements of DIN 4109

Advantages

• The rapid-locking mechanism allows a fast and time-saving installation
• The tight fit of the sound insulation insert prevents it from falling out when inserting the pipe
• The safety latch fastening guarantees pipe installation without the clamp springing open
• The combination connecting nut with M8/M10 thread on the FGRS Plus M8/M10 allows optimised mounting choices
• The screw's combination cross-drive thread allows flexibility during the installation process
• The compact construction of the pipe clamp enables a simple post-installation insulation

Properties

• Material: steel DC01 (material no. 1.0330) acc. to DIN EN 10130
• Zinc plating: electro zinc-plated, 5–9 µm
• Connecting nut: resistance welded, SW 13
• Locking screw: flat head screw with combination recessed head
• Material sound insulation insert: SBR/EPDM; chlorine-free; silicone-free
• Sound insulation: for DIN 4109
• Temperature range: -40 °C to +100 °C
• Hardness: 55 ± 5° ShoreA
• Fire behaviour: DIN 4102: Class B2
