- Description
-
Details

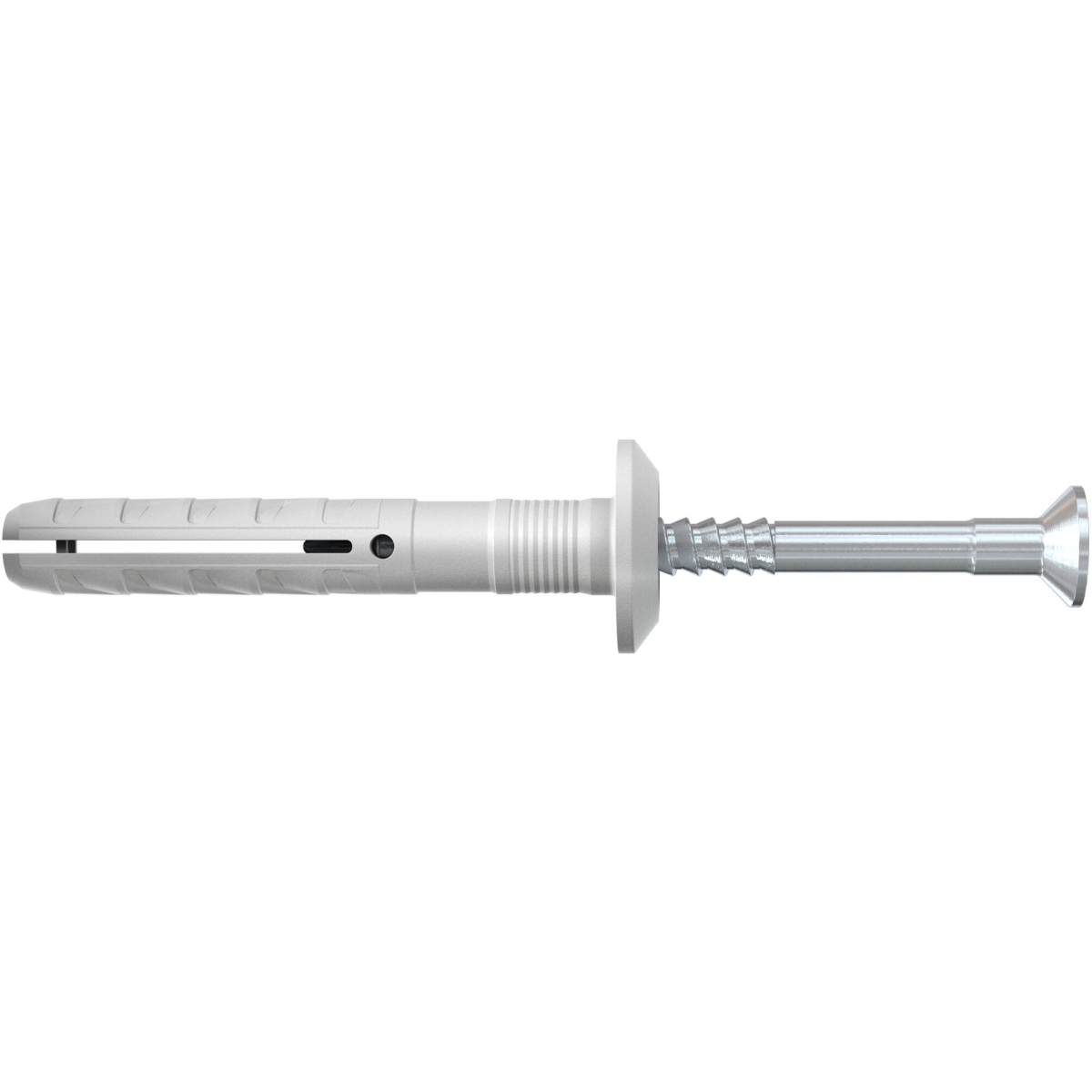

- The fischer Hammerfix N-P with raised countersunk head consists of a high-quality nylon plug and a nail screw made of zinc-plated steel
- These are already pre-fitted for quick assembly

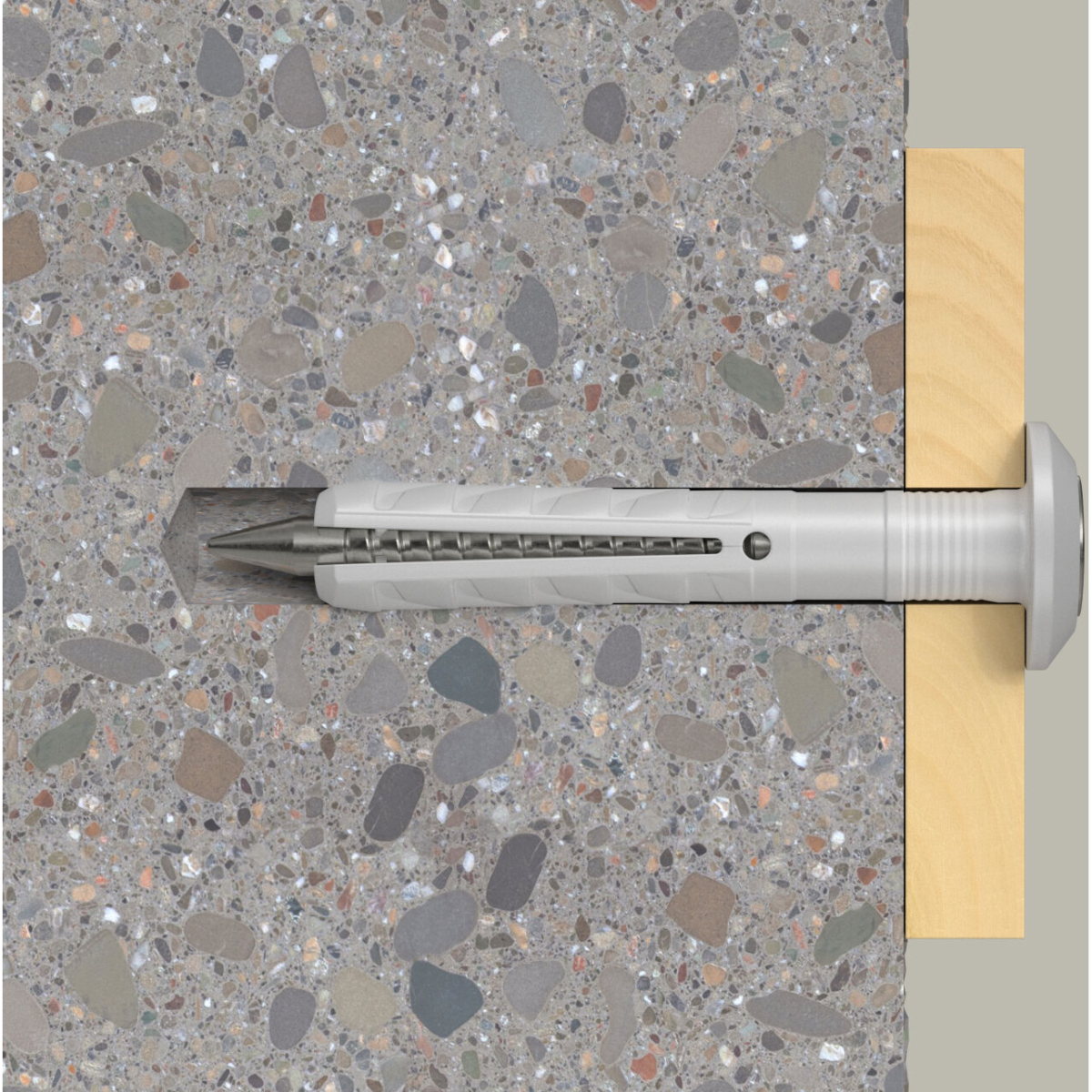

- The Hammerfix is led through the component in the time-saving through-type installation
- When driving in the nail screw, the fixing sleeve expands and anchors itself securely in the building material

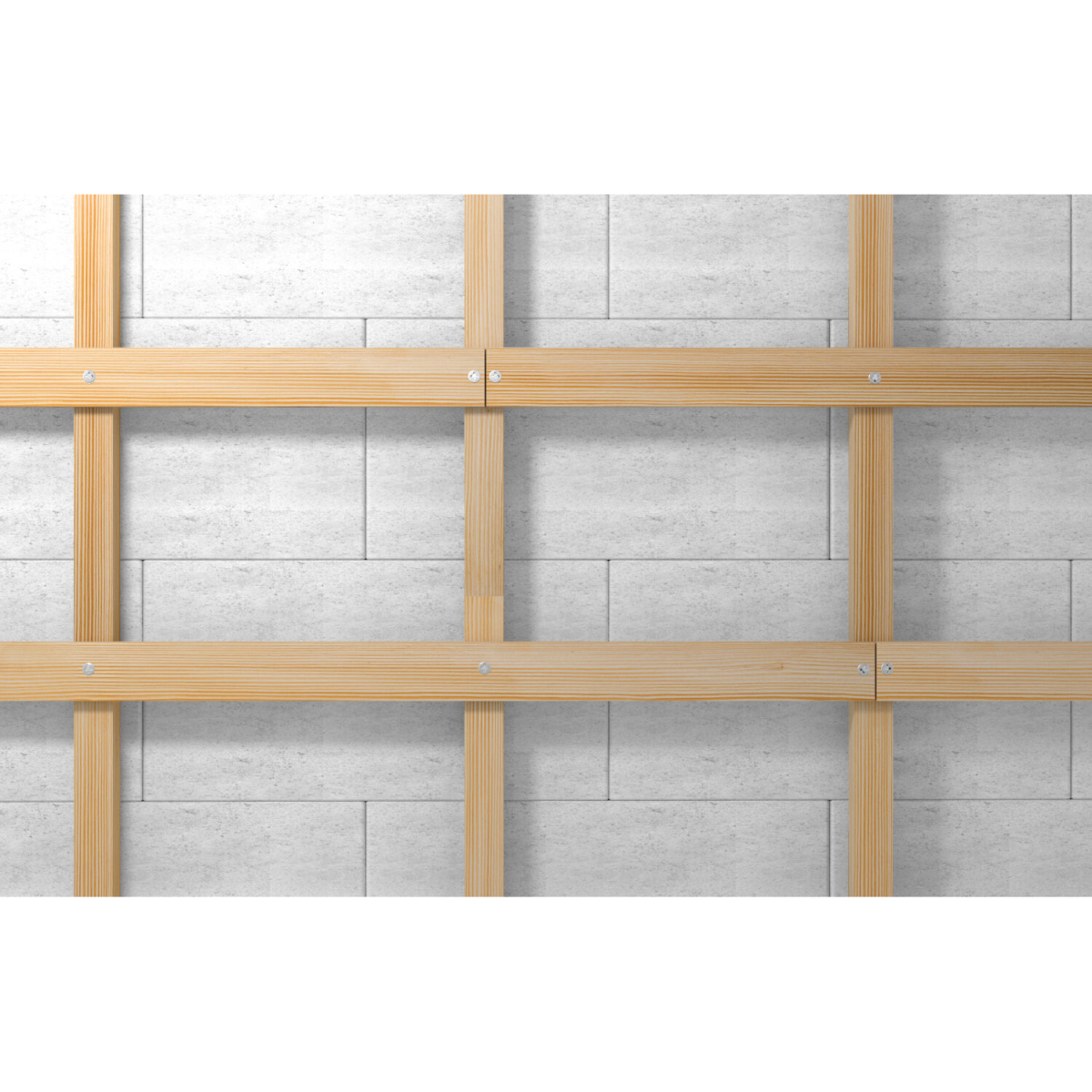

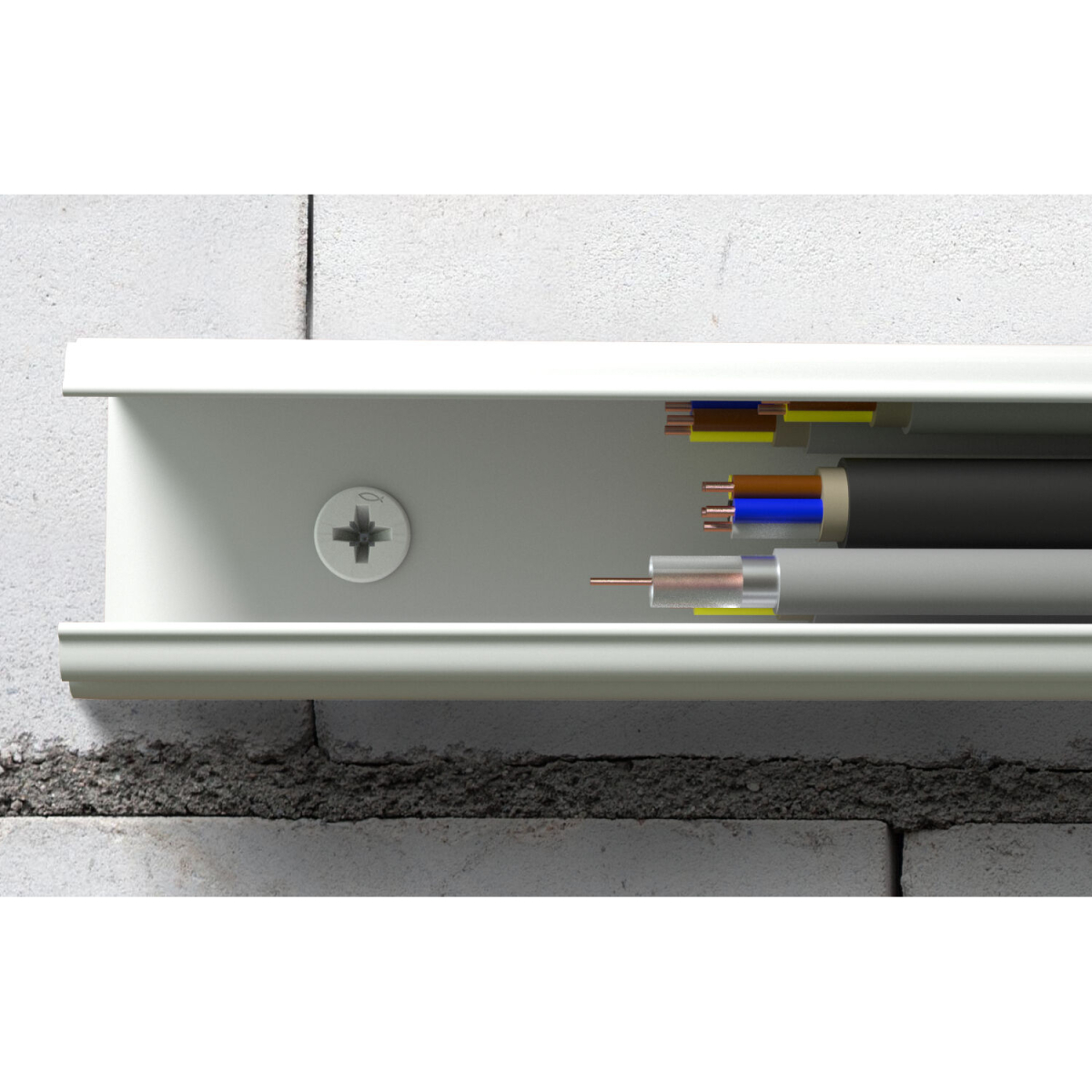

- The fischer Hammerfix N-P with raised countersunk head is ideal for fixing of thin components and components with slots, especially in the viewing area (internal areas)
Top Features
- Fast Hammerset installation saves time: ideal for series installation
- Simple and secure installation: Integrated hammer-in stop prevents premature anchor spreading
- Subsequent dismantling of the nail screw with a cross-slot recess is possible
- With mushroom head.
Advantages
- Time and money savings thanks to fast hammerset installation
- This enables cost-effective series installations
- Easy installation thanks to integrated hammer-in stop
- This avoids the premature expansion of the plug
- Increased flexibility due to subsequent dismounting
- The thread of the nail screw in conjunction with the cross-slot recess allows the screw to be screwed out
- Diverse usage possibilities thanks to the large assortment in different diameters and usable lengths.
- Features
Features

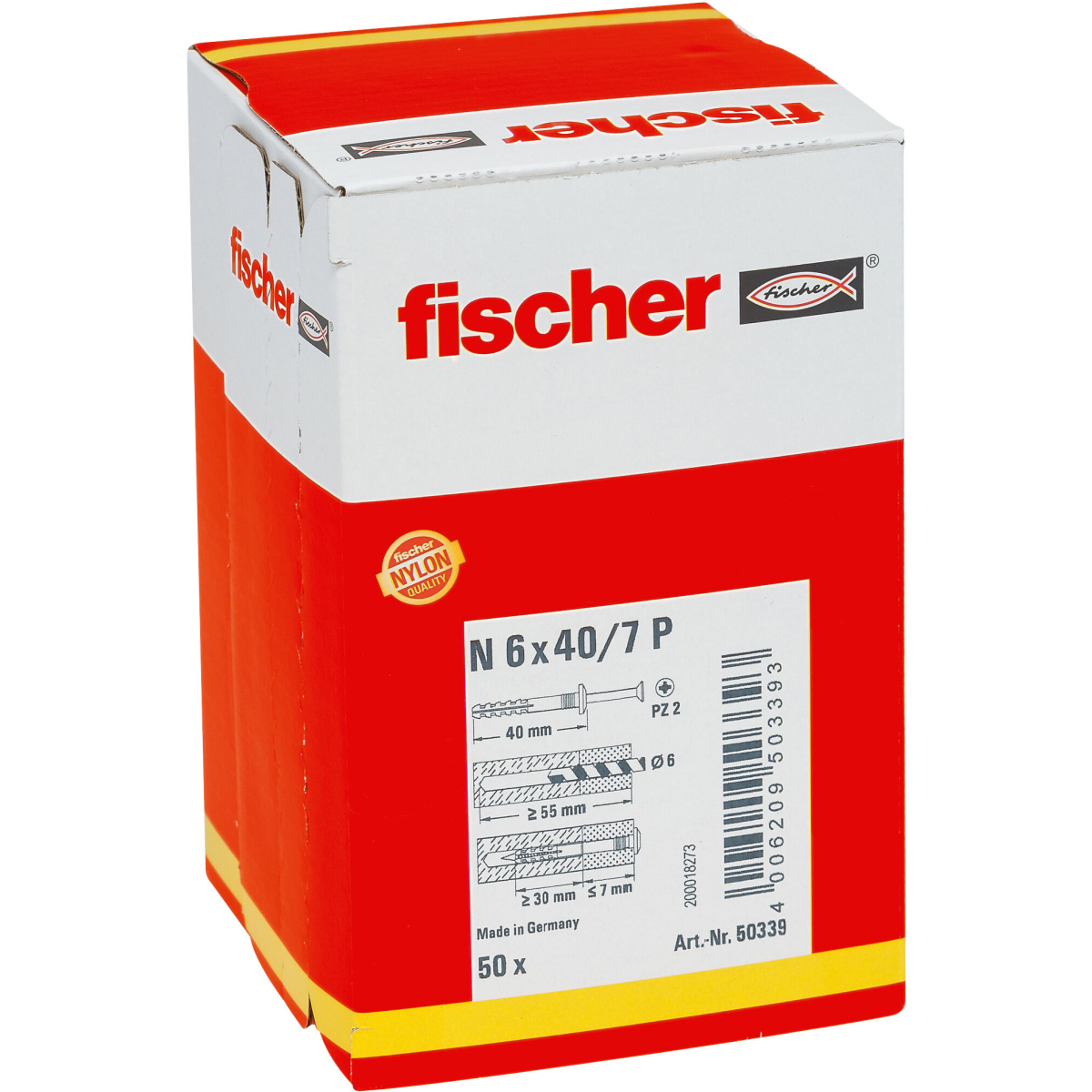

Drill diameter (d0) 6 mm Effect. anchorage depth (hef) 30 mm Anchor length (l) 40 mm Min. drill hole depth for through fixings (h2) 55 mm Max. fixture thickness (tfix) 7 mm Drive PZ2 Contents 50 x Hammerfix N 6 x 40 /7 P Packaging Folding box Amount 50 pcs GTIN (EAN-Code) 4006209503393 Applications Slides Sheets Signs Mounting in the viewing area Building materials Concrete Solid sand-lime brick Building brick Natural stone Solid brick made from lightweight concrete Aerated concrete Solid panel made from gypsum
