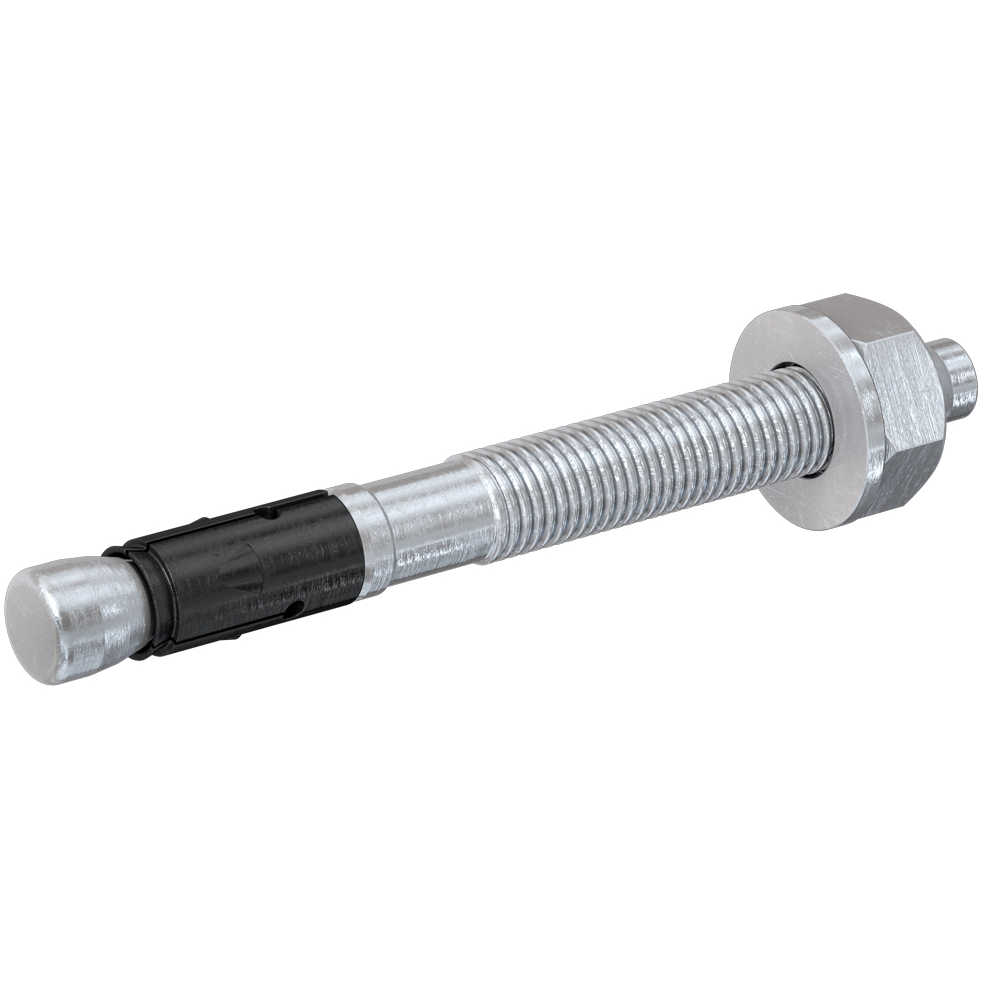

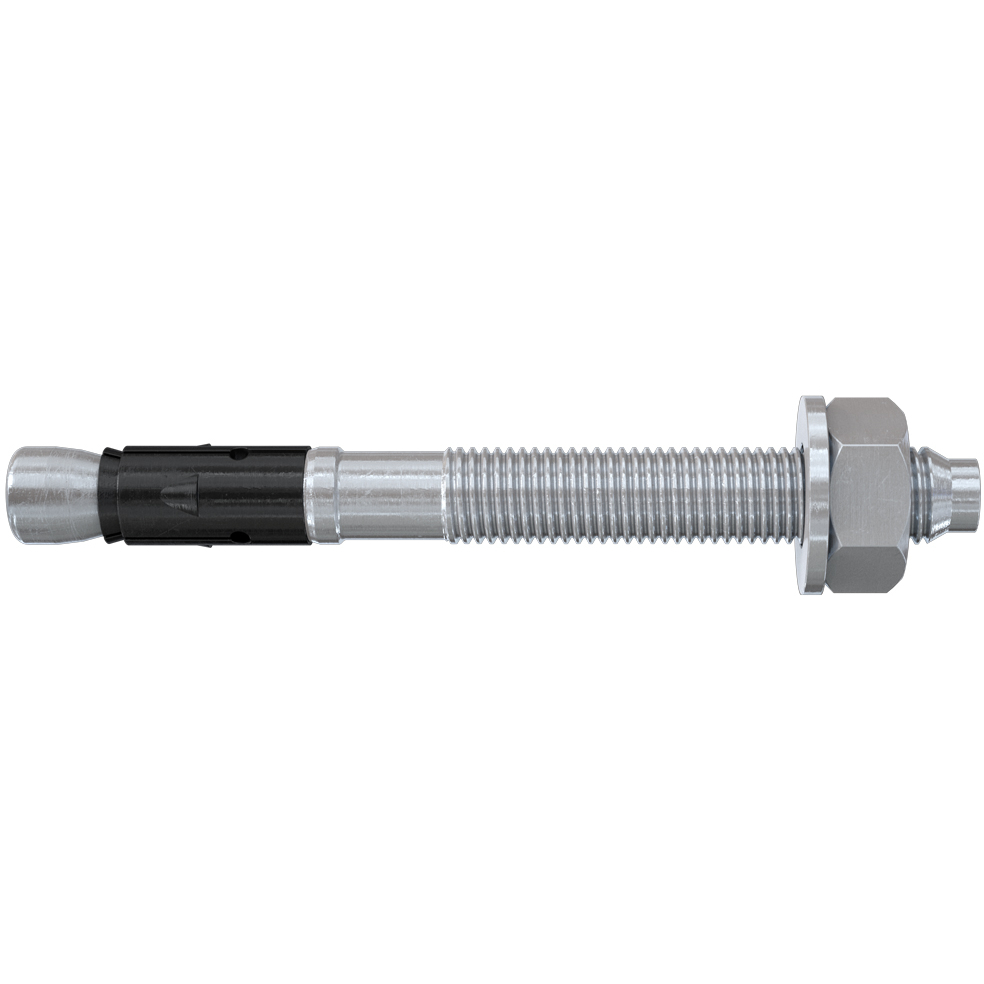

Fischer 46636 Bolt Anchor FAZ II M24 x 60mm Electro Zinc Plated Pack x 5

• The fischer bolt anchor FAZ II K is the steel anchor for the most demanding requirement
• Heavy loads are fixed into cracked concrete with the steel anchor
• Due to simple mounting, the FAZ II can be used in a particularly flexible manner
• The proven expansion clip feeds the loads into the concrete in an especially secure manner and ensures maximum load-bearing properties
• The zinc-plated steel version is used to fix loads in indoor areas

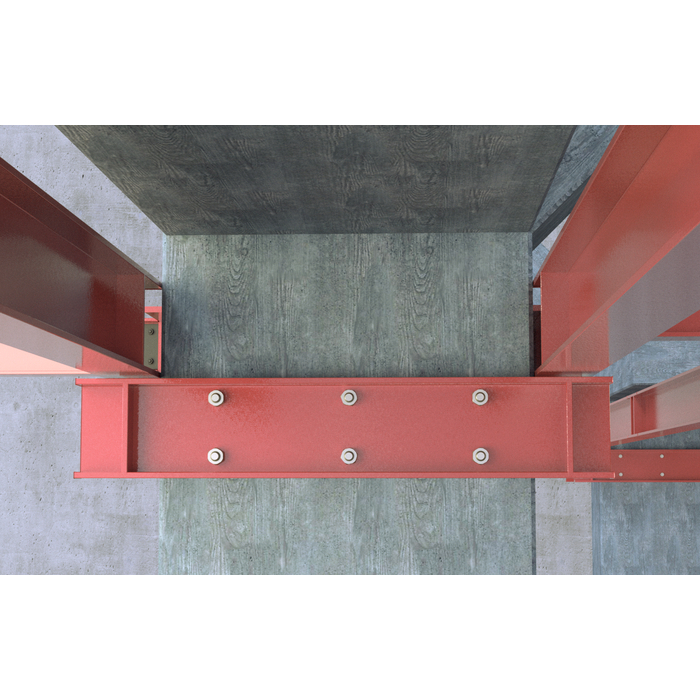

• The steel anchor is, for example, suitable for fixing heavy steel constructions
• Size: M24 x 60mm
• Anchor Length:235mm
• Thread Length: M24 x 88mm.
• Min Hole Depth: 215mm

Top Features

• With expansion clip for maximum load-bearing capacity
• Thus fewer fixing points and smaller anchor plates are required
• This saves time and costs
• Minimum torque slippage: Simple assembly saves time as well as wear and tear
• With approval for cracked concrete and fire inspection: maximum safety
• Ideal for high loads.

Advantages

• The FAZ ll tried and tested expansion clip enables the highest load bearing capacity
• Thus fewer fixing points and smaller anchor plates are required.
• The reduced anchorage depth (new also for M8 version) allows for significantly reduced drill hole depths and reduces the number of reinforcement hits
• This allows for a noticeably quicker installation
• Fewer hammer blows when hammering in the anchor, together with the low torque slippage, ensure a noticeably simple and comfortable setting process
• The international approvals guarantee maximum safety and the best performane
• These approvals even cover the use in earthquake zones (seismic performance) or the use of hollow drills.

Functioning

• The FAZ II is suitable for pre-positioned and push-through installation and is also ideal for stand-off installation thanks to the long thread
• When applying the torque, the cone bolt is pulled into the expansion sleeve and expand it against the drill hole wall
• The anchor is set in line with the approval once the preset installation torque is achieved
• In the case of series installation, we recommend using the FABS anchor bolt setting tool

Load Table for Downloading

https://content.fischer.de/cbfiles/fischer/lastentabelle/lt_01_faz-ii_f_%23sen_%23aip_%23v3.pdf

Approval Documents for Downloading

https://content.fischer.de/cbfiles/fischer/zulassungen/eta/zd_etab_f_05-0069-1_%23sen_%23aip_%23v1.pdf

https://content.fischer.de/cbfiles/fischer/zulassungen/zd_dop_fazii-3_f_%23sen_%23aip_%23v1.pdf

https://content.fischer.de/cbfiles/fischer/zulassungen/zd_icc_01_fazii_f_%23sall_%23aip_%23v8.pdf

https://content.fischer.de/cbfiles/fischer/zulassungen/zd_fms_01_faz-ii_f_%23sall_%23aip_%23v1.pdf
