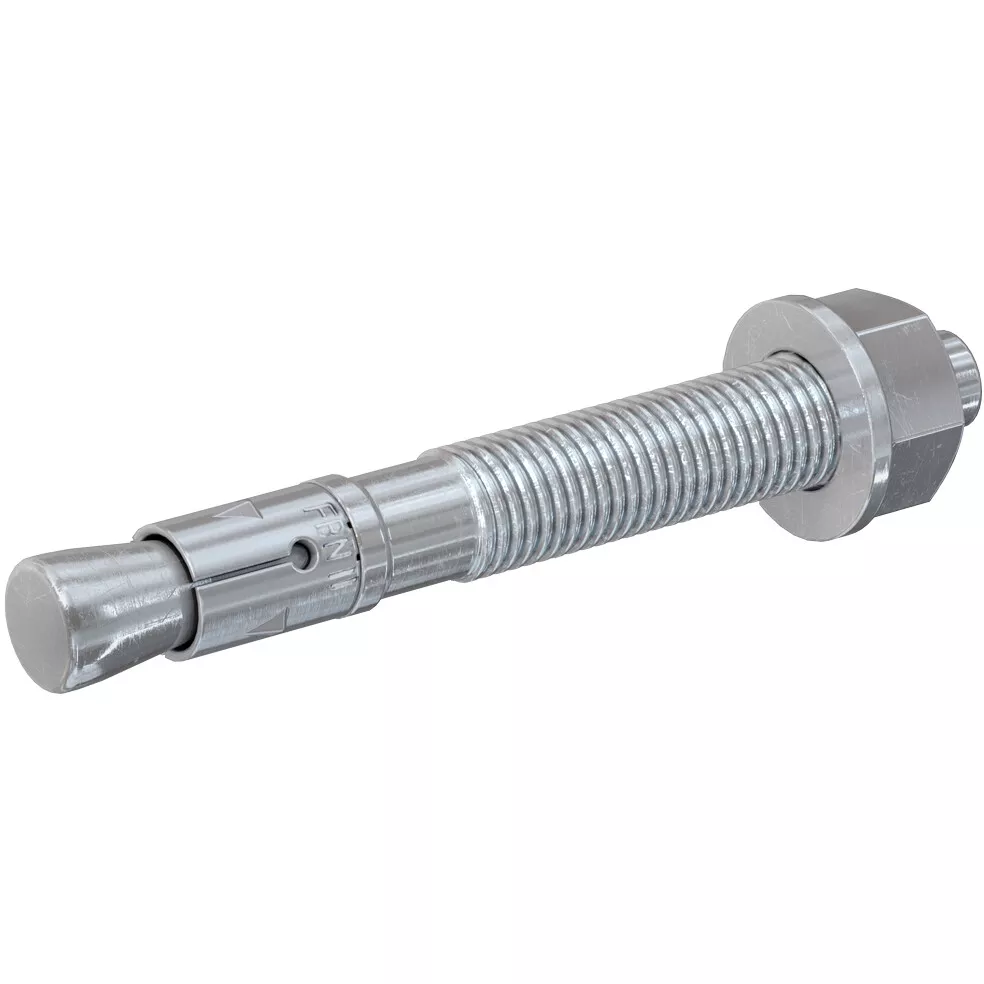

Fischer 45573 Bolt Anchor FBN II M20 x 185mm Electro Zinc Plated Pack x 10
The cost-efficient fixing for flexible use in non-cracked concrete.
Only 2 left
SKU
FIS-45573
Barcode
4006209455739
£35.40
(
£29.50
Ex VAT)
£39.59
(
£32.99
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Fischer 45573
Top Features
- The FBN II achieves maximum load-bearing capacity with standard anchorage depth
- This means: fewer fixing points and smaller anchor plates
- IF the reduced anchorage depth is used, then this lowers the drill hole depth and simplifies installation
- Component tolerances are balanced out with the long thread. In addition, FBN II is also suitable for stand-off installations
- This increases flexibility
- Simple assembly due to few taps and minimal slippage
- The drive-in pin protects the thread from damage
- This saves time during installation and removal
Advantages
- The standard anchorage depth achieves the maximum load-bearing capacities
- Thus fewer fixing points and smaller anchor plates are required
- The reduced anchorage depth reduces the drill hole depth
- This minimises the amount of time needed for installation whilst increasing flexibility
- The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility
- Few hammer blows and the minimal torque slippage allow for a noticeably simpler installation
- The drive-in pin protects the thread from damage, and thus ensures a faster installation and dismantling of the attachment.
Functioning

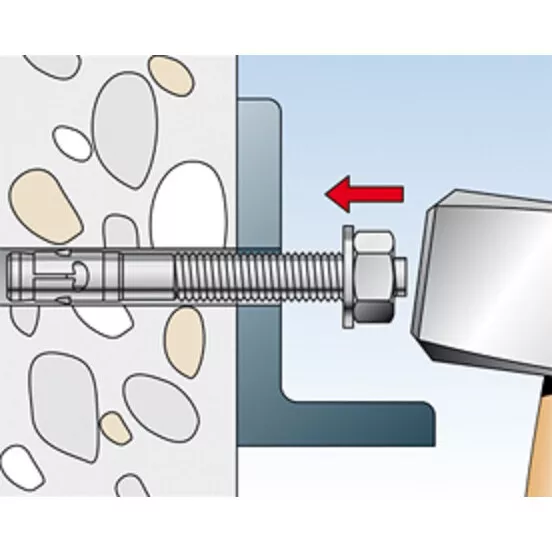

- The FBN II is suitable for pre-positioned and push-through installation; also suitable for stand-off installation under certain conditions
- Prior to installation, place the hexagon nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hexagon nut).
- When applying the torque, the cone bolt is pulled into the expansion clip and expands it against the drill hole wall
- The head embossing offers a simple control of the anchoring
- In the case of series installation, we recommend using the FABS bolt anchor settin
Load Table for Downloading
https://content.fischer.de/cbfiles/fischer/lastentabelle/lt_01_fbn-ii_f_%23sen_%23aip_%23v2.pdf
Technical Documents for Downloading
https://content.fischer.de/cbfiles/fischer/zulassungen/eta/zd_etab_f_07-0211_%23sen_%23aip_%23v1.pdf
https://content.fischer.de/cbfiles/fischer/zulassungen/zd_dop_fbn-ii-1_f_%23sen_%23aip_%23v1.pdf
https://content.fischer.de/cbfiles/fischer/zulassungen/zd_b_02_fbnii_f_%23sen_%23aip_%23v1.pdf
Features / Specification
| Technical Data | |
|---|---|
| ETA-approval | |
| Drill hole diameter d0 20 [mm] | |
| Min. drill hole depth for through fixings h2 165 [mm] | |
| Anchor length l 187 [mm] | |
| Max. usable length hef,max./hef,min. tfix 30/55 [mm] | |
| Thread Ø x length M 20 x 90 [mm] | |
| Width across nut SW 30 [mm] | |
| Amount 10 Unit(s) | |
| GTIN (EAN Code) 4006209455739 | |
| Applications | |
| Steel constructions | |
| Guard rails | |
| Consoles | |
| Ladders | |
| Cable trays | |
| Machines | |
| Staircases | |
| Gates | |
| Façades | |
| Building materials | |
| Approved for: | |
| Concrete C20/25 to C50/60, non-cracked | |
| Also suitable for: | |
| Concrete C12/15 | |
| Natural stone with dense structure | |
| You can find detailed information on building materials in the registration document. | |
| Permission | |
| ETA-07/0211 | |
| DoP No. 0015 | |
| DoP No. 0756-CPD-0296 | |
| GS 3.2/18-082-1-r1 |
