Fischer 44125 Nail Anchor FNA II 6 x 30 /30 C With Nail Head Highly Corrosion-Resistant Steel Pack x 25

• The fischer nail anchor FNA II 6 with nail head is made of highly corrosion-resistant steel
• The FNA II is set in a time-saving manner in the push-through installation with just a few taps of the hammer
• The installed FNA II expands automatically under load
• The cone is then pulled into the expansion clip and expands it against the hole wall
• Above all, the fischer nail anchor FNA II 6 with nail head is suitable for fixing fire protection boards, air lines and and mounting rails in highly corrosive atmospheres

Top Features

• Hammerset installation saves time
• No reinforcement hits due to low anchorage depth
• This saves time and costs during series installation
• Expansion clip provides a firm hold
• ETA approval for multiple fixings
• Made of highly corrosion-resistant steel for highly-corrosive atmospheres

Advantages

• The special active principle allows for a simple hammerset installation and, therefore, a short processing time
• The extremely short anchor depth prevents reinforcement hits, and creates the conditions for a trouble-free installation
• The optimised expansion clip ensures hold when placing in the drill hole, and prevents it falling out during overhead installations
• The massive shaft cross-section guarantees a high load-bearing capacity, thus offering an extremely high level of safety
• A range of head shapes allows for the fixing of wide-ranging fixtures, and for the ideal adaptation to suit the intended use

Functioning

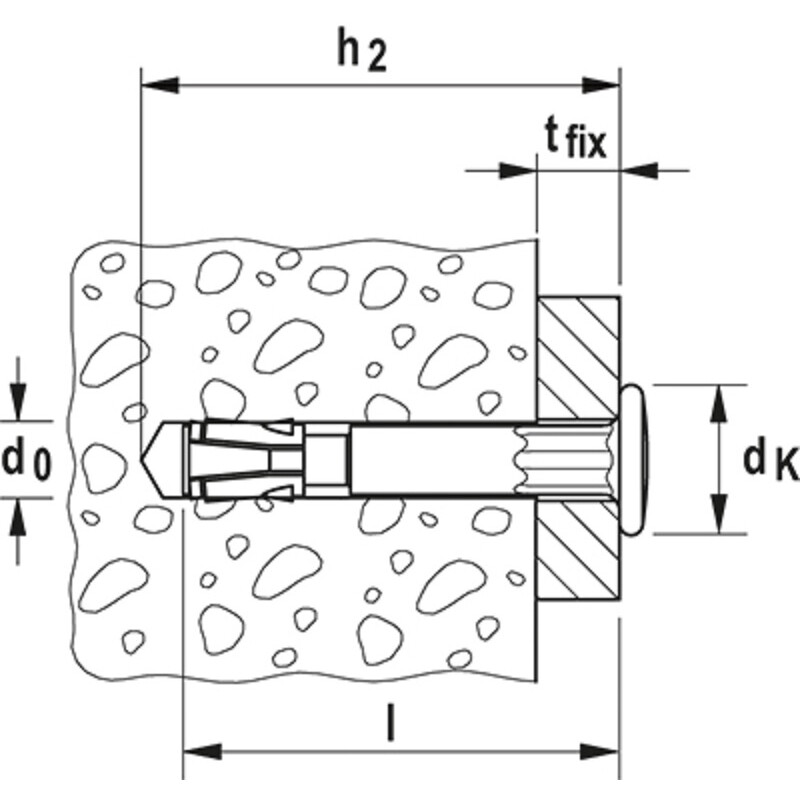

• The FNA II with nail head is suitable for push-through installation
• The installed nail anchor FNA II expands automatically under load
• The cone is pulled into the expansion clip and expands it against the drill hole wall
• Available setting tools: FNA S-SBO to slip onto the drill, FNA S-SDS for series installation with a drilling hammer, FNA S-H for the manual installation of mounting rails.

Load Table for Download

https://content.fischer.de/cbfiles/fischer/lastentabelle/lt_01_fna-ii_f_%23sen_%23aip_%23v2.pdf

ETA Documents for Downloading

https://content.fischer.de/cbfiles/fischer/zulassungen/eta/zd_etab_f_06-0175_%23sen_%23aip_%23v1.pdf

https://content.fischer.de/cbfiles/fischer/zulassungen/zd_dop_fna-ii_f_%23sall_%23aip_%23v2.pdf
