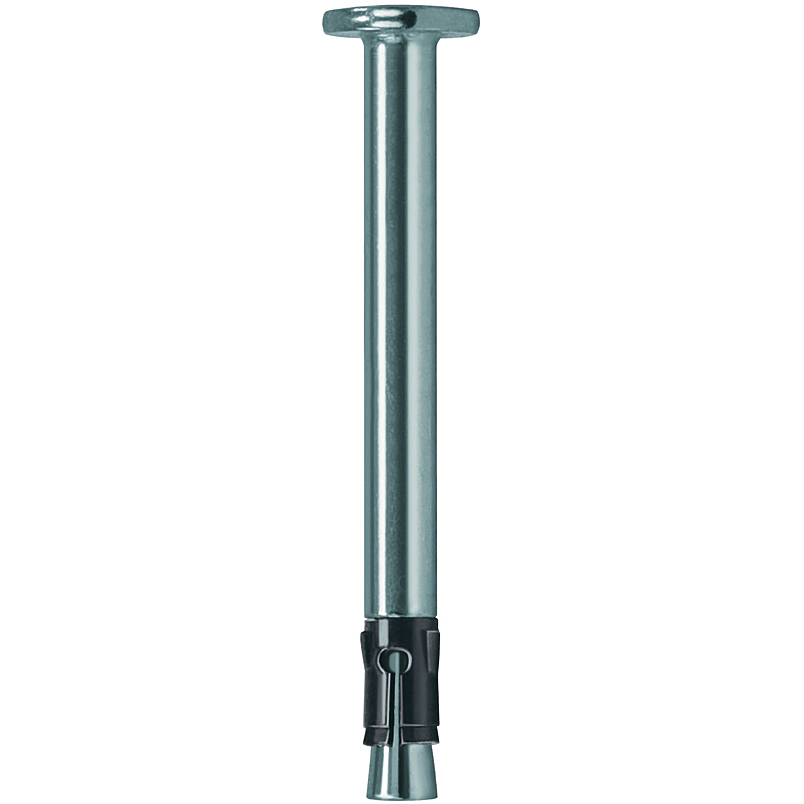

Fischer 44117 Nail Anchor FNA II M6 x 50mm With Nail Head Electro Zinc Plated Pack x 50

• Drill hole diameter d0 6 [mm]
• Min. drill hole depth for through fixings h2 90 [mm]
• Anchor length l 85 [mm]
• Max. fixture thickness t fix 50 [mm]
• Head-Ø dK 13.0 [mm]
• The fischer nail anchor FNA II with a nail head is made from zinc-plated steel, stainless steel, and highly corrosion-resistant steel
• The FNA II is primarily suitable for the anchoring of fire protection boards, ventilation systems, metal rails, and subframe systems
• The European Technical Approval and classification as per fire resistance class R 120 ensure added safety
• The FNA is mounted in a few hammer blows or with a hammer drill in a time-saving push-through installation
• The FNA II expands automatically under load
• The cone is pulled into the expansion clip and expands it against the drill hole

Top Features

• Hammerset installation saves time
• No reinforcement hits due to low anchorage depth
• This saves time and costs during series installation
• Expansion clip provides a firm hold
• ETA approval for multiple fixings
• Series installation possible with setting tool for the hammer drill
• This saves time and costs.

Advantages

• The special active principle allows for a simple hammerset installation and, therefore, a short processing time
• The extremely short anchor depth prevents reinforcement hits, and creates the conditions for a trouble-free installation
• The optimised expansion clip ensures hold when placing in the drill hole, and prevents it falling out during overhead installations
• The massive shaft cross-section guarantees a high load-bearing capacity, thus offering an extremely high level of safet
• A range of head shapes allows for the fixing of wide-ranging fixtures, and for the ideal adaptation to suit the intended use.

Functioning

• The FNA II with nail head is suitable for push-through installation
• The installed nail anchor FNA II expands automatically under load
• The cone is pulled into the expansion clip and expands it against the drill hole wall
• Available setting tools FNA S-SBO to slip onto the drill,
• FNA S-SDS for series installation with a drilling hammer, FNA S-H for the manual installation of mounting rails

Load Table

https://content.fischer.de/cbfiles/fischer/lastentabelle/lt_01_fna-ii_f_%23sen_%23aip_%23v2.pdf

ETA Documents for Downloading

https://content.fischer.de/cbfiles/fischer/zulassungen/eta/zd_etab_f_06-0175_%23sen_%23aip_%23v1.pdf

https://content.fischer.de/cbfiles/fischer/zulassungen/zd_dop_fna-ii_f_%23sall_%23aip_%23v2.pdf
