Fischer 26424 Metric Brass Expansion Plugs MS M4 5mm x 15mm Pack x 100

• The fischer brass fixing MS is an expansion plug made of brass for holding a metric thread
• The special fixing is set in the pre-positioned installation
• When driving in the screw or the threaded rod the brass fixing expands and anchors itself in the drill hole
• Above all, the fischer brass fixing MS is suitable for fixing shelves, flow heaters, and aggregates in solid building materials

Top Features

• Fast installation due to compact design
• No rotation due to non-slip surface structure
• Flexibility due to using conventional screws and threaded rods
• Surface flush removal possible

Advantages

• The compact design of the brass fixing reduces the amount of drilling required, helping to ensure a fast installation
• The special surface structure of the MS prevents the fixing from rotating in the drill hole
• This provides increased installation safety
• The internal thread allows for the use of standard metric screws or threaded rods, and for surface flush removal and reuse of the fixing point
• This provides great flexibility

Functionality

• The MS brass fixing is suitable for pre-positioned and push-through installation

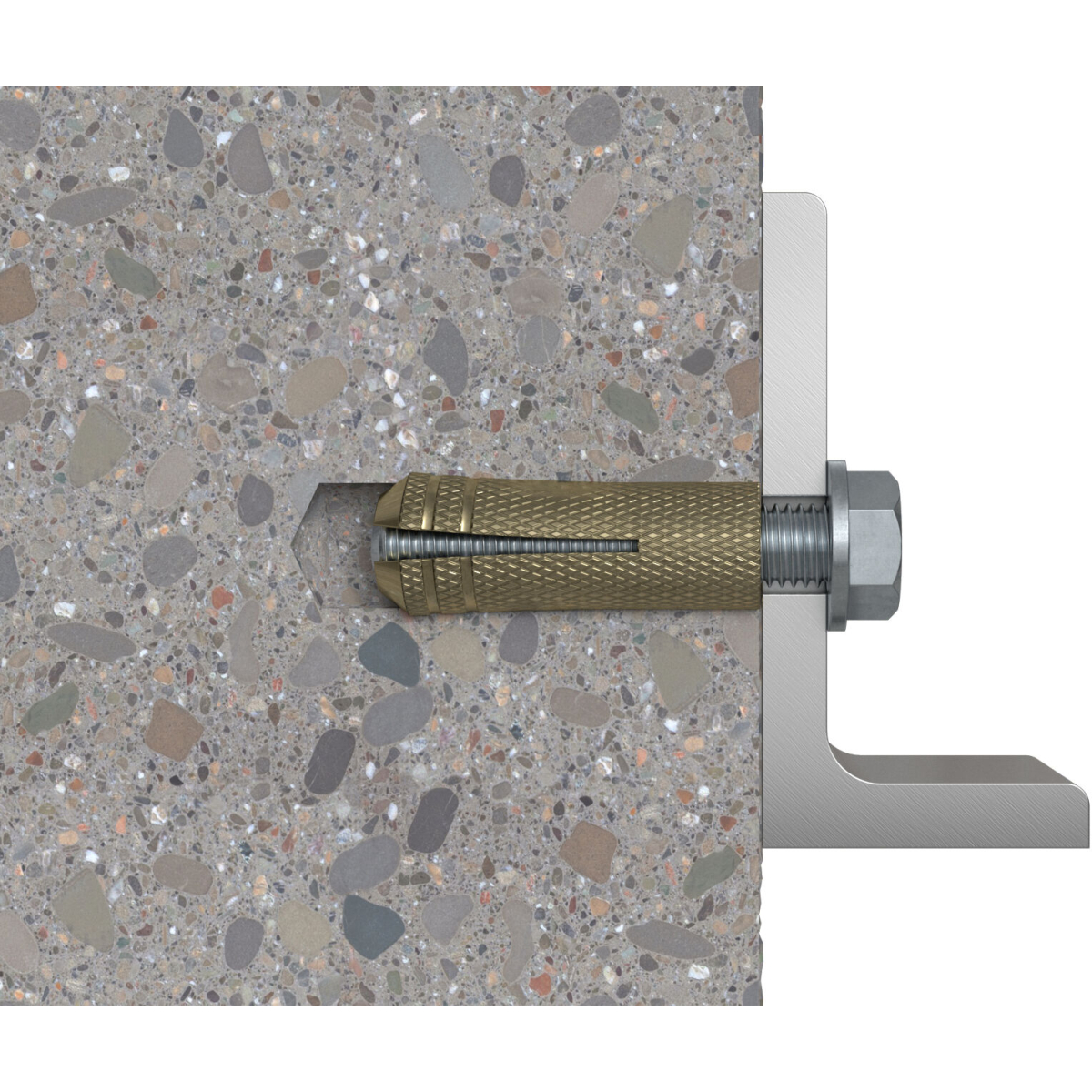

• Turning in the metric screw causes the front part of the brass fixing to expand, thus securely anchoring it in the substrate
• Calculating screw length for flush fixing installation: Fixing length + fixture thickness = min. screw length
• Suitable for metric screws and threaded bolts
• The brass fixing may have to be expanded slightly before installation by turning in the threaded screw

Load Table

https://fiproductmedia.azureedge.net/media/Load%20Tables/Load%20Tables%20fischer/LT_01_MS_SEN_AIP_V1.pdf
