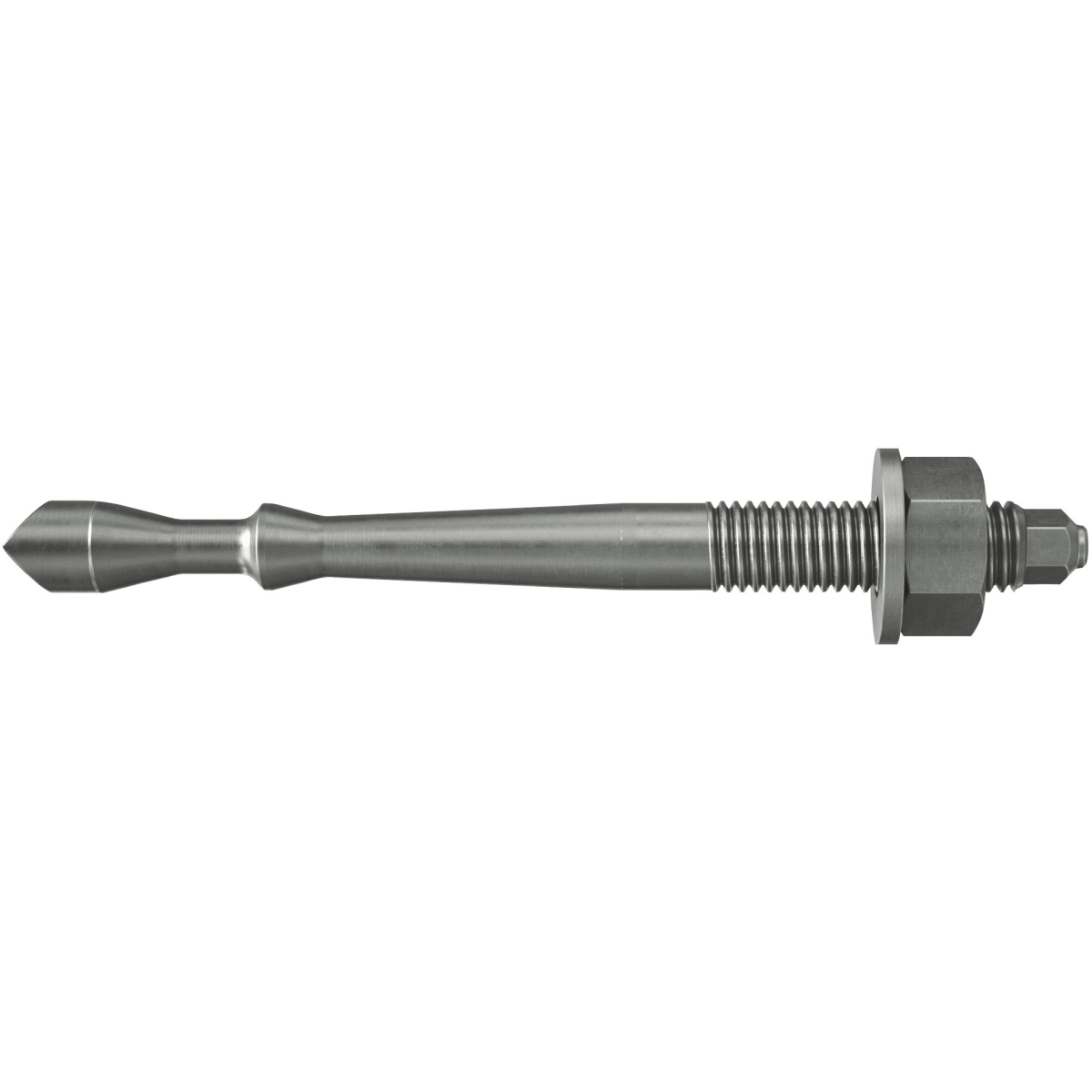

Fischer 097640 Highbond anchor FHB II-A S M12 x 75/10 165 R (Pack of 10)
Description / Fischer 097640
The reduced anchorage depth of the FHB II-A S minimises the drilling and installation effort
In addition using the combination with FHB II-P/-PF capsule no drill hole cleaning is required
Thus allowing for an especially economical and time-saving fixing.
With the anchor rod FHB II-A S, the drill bit diameter is the same as the thread diameter, This allows for push-through installation without any tools and reduces the amount of mortar required
The cone shape of the anchor rod FHB II-A S is optimised for small axial and edge distances in cracked concrete, as well as thin concrete members. As a result, it is suitable for a wide range of applications.
The anchor rod FHB II-A S is approved for use both with capsules and with injection mortar. This guarantees maximum flexibility in the application.
Features / Specification
Material: | Stainless Steel |
|---|---|
| Drill diameter(d0): | 12 mm |
| Drill hole depth(h0): | 90 mm |
| Anchorage depth(hef): | 75 mm |
| Max. fixture thickness(tfix): | 165 mm |
| Thread(M): | M12 |
| Width across nut: | 19 mm |
