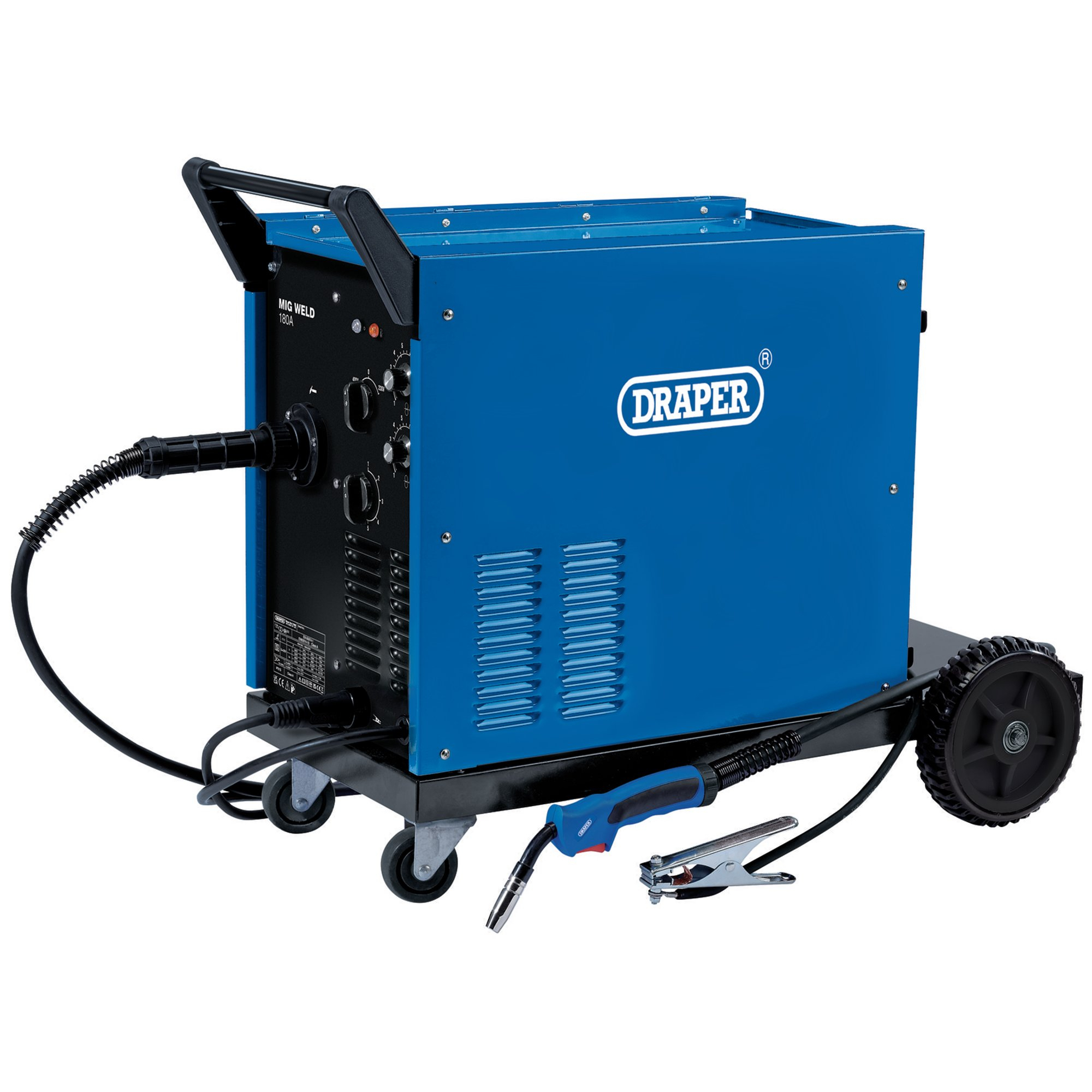

Draper 71092 MW190T 230/400V Gas/Gasless Turbo MIG Welder (180A)
Description / Draper 71092
For use with either gas or gasless MIG wire of up to 15kg spool sizes.
Features:
• Euro torch connector
• Spot welding timer for precise spot welds
• Six stage power setting
• Variable wire speed control
• Thermal overload protection
• Dinse fit earth clamp
• 0.6/0.8mm wire feed roller
Supplied with wheel kit and reinforced gas bottle support.
Gas bottle, regulator, MIG wire, etc are all available separately (examples listed under Related Products).
Note: For a successful weld joint, the molten metal must be protected from contaminating gases found in the air. This is either achieved by supplying the torch with gas from a bottle or setting the machine up for no-gas and using a flux cored filler wire. The shield is produced as the flux in the wire melts. To connect a gas bottle to the welder, you may need a suitable regulator such as Draper Stock No.44352, or similar.
Features / Specification
| Phase | 230V/400V |
|---|---|
| Input current | 16A |
| Output amperage range | 65 - 180A |
| Absorbed current | 9.8KW |
| Duty cycle | 20% @ 180A , 100% @ 65A |
| Welding wire size | 0.8 - 1.2mm |
| No load voltage | 36.5V |
| Dimensions | 845 x 415 x 505mm |
| Weight | 55kg |
