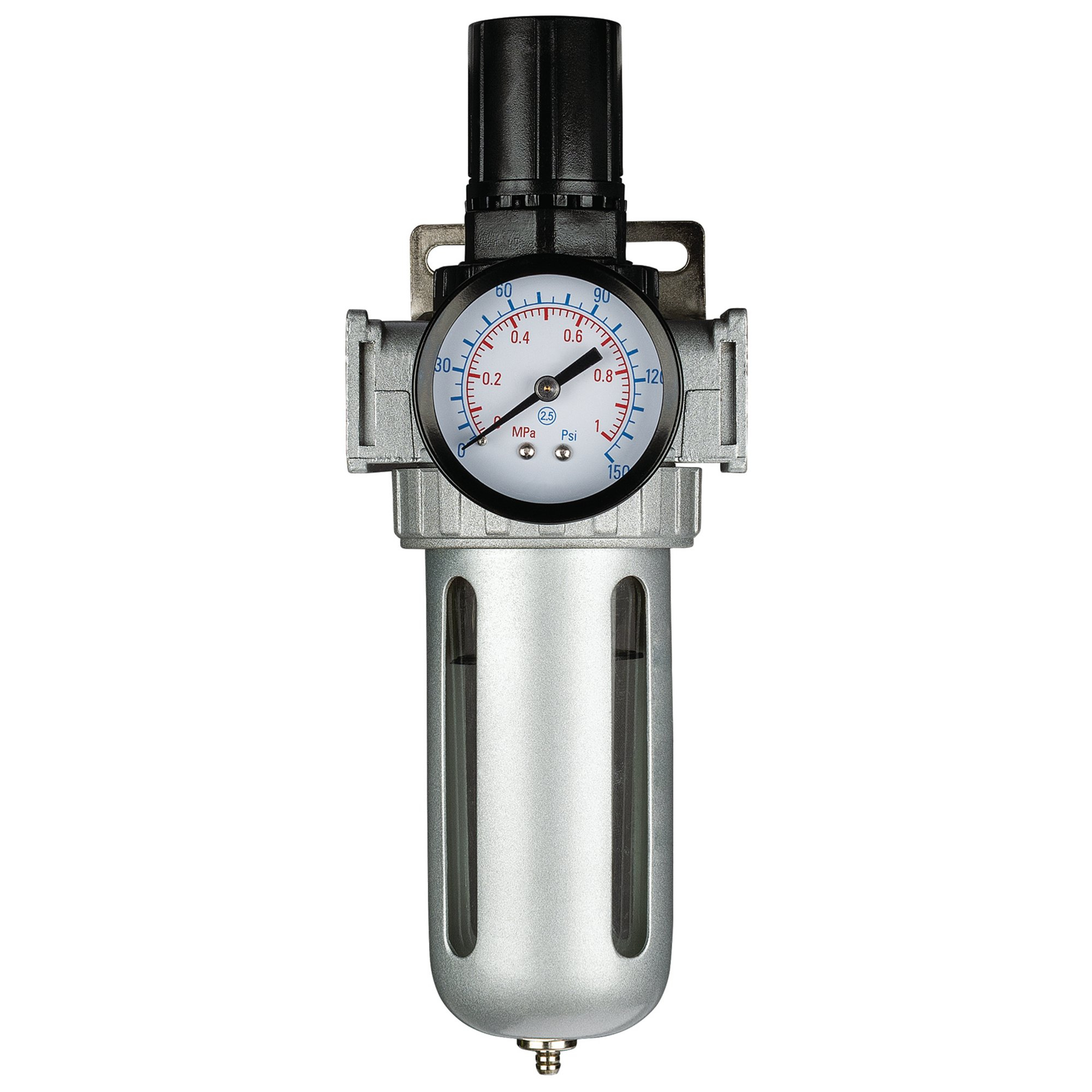

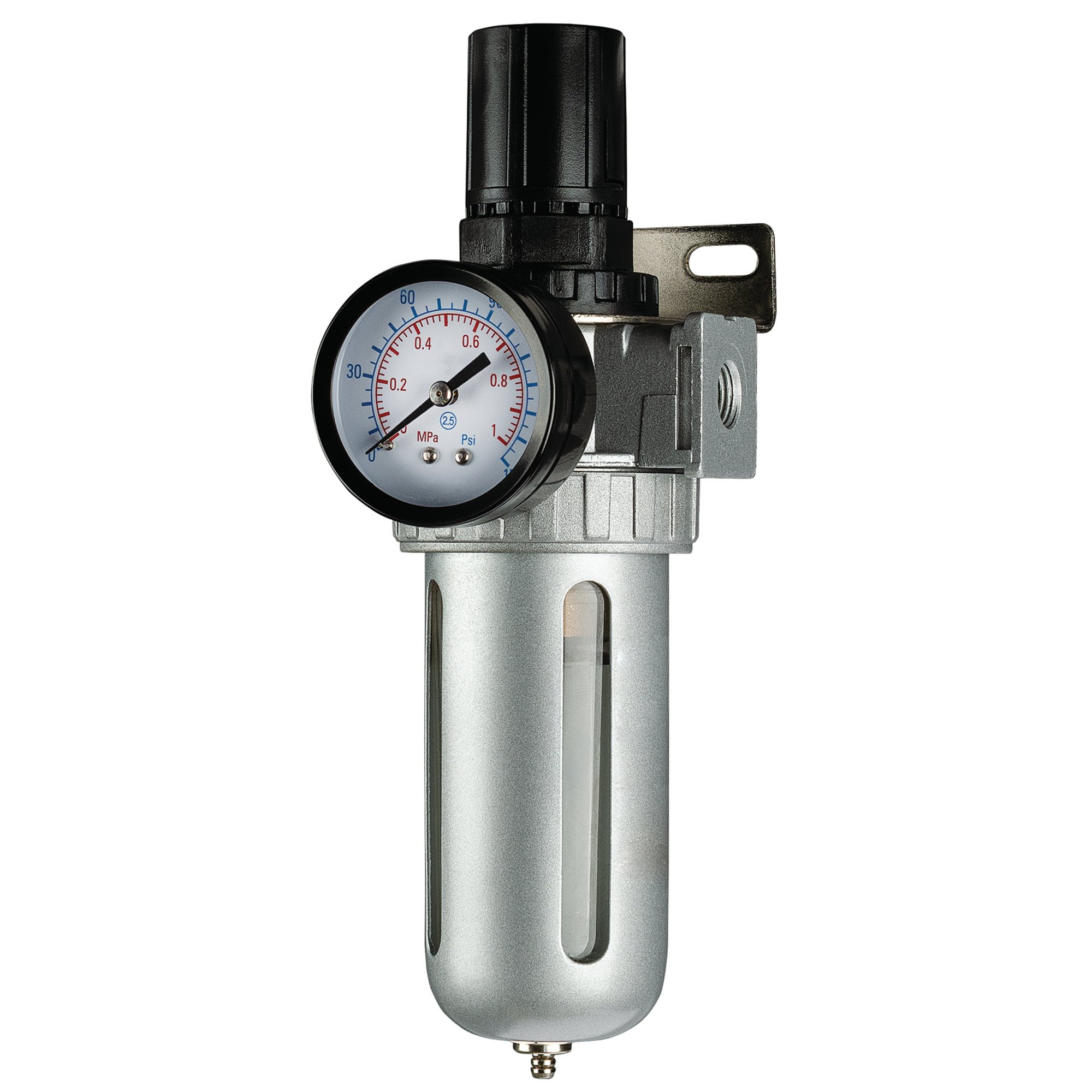

Draper 70826 DFR 1/4" Bsp Filter/Regulator Unit
Designed to eliminate moisture and particulates from the airflow
Order within
SKU
DRA70826
Barcode
5010559708260
£20.08
(
£16.73
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Draper 70826
Designed to eliminate moisture and particulates from the airflow.
The main body of this unit is aluminium with polished silver finish.
The gauge has steel casing and is duel-marked with psi and Mpa.
Steel screw-on transparent bowl.
Manual/semi-automatic drain, fitted with 40-micron filter.
Complete with wall bracket.
The main body of this unit is aluminium with polished silver finish.
The gauge has steel casing and is duel-marked with psi and Mpa.
Steel screw-on transparent bowl.
Manual/semi-automatic drain, fitted with 40-micron filter.
Complete with wall bracket.
Features / Specification
| Inlet/outlet thread: 1/4" BSP |
|---|
| Max. inlet pressure: 145psi |
| Working temperature range: 5-60â |
| Filtration element: 40um |
| Dimensions: 214 x 80 x 103mm |
| Weight: 0.57kg |
