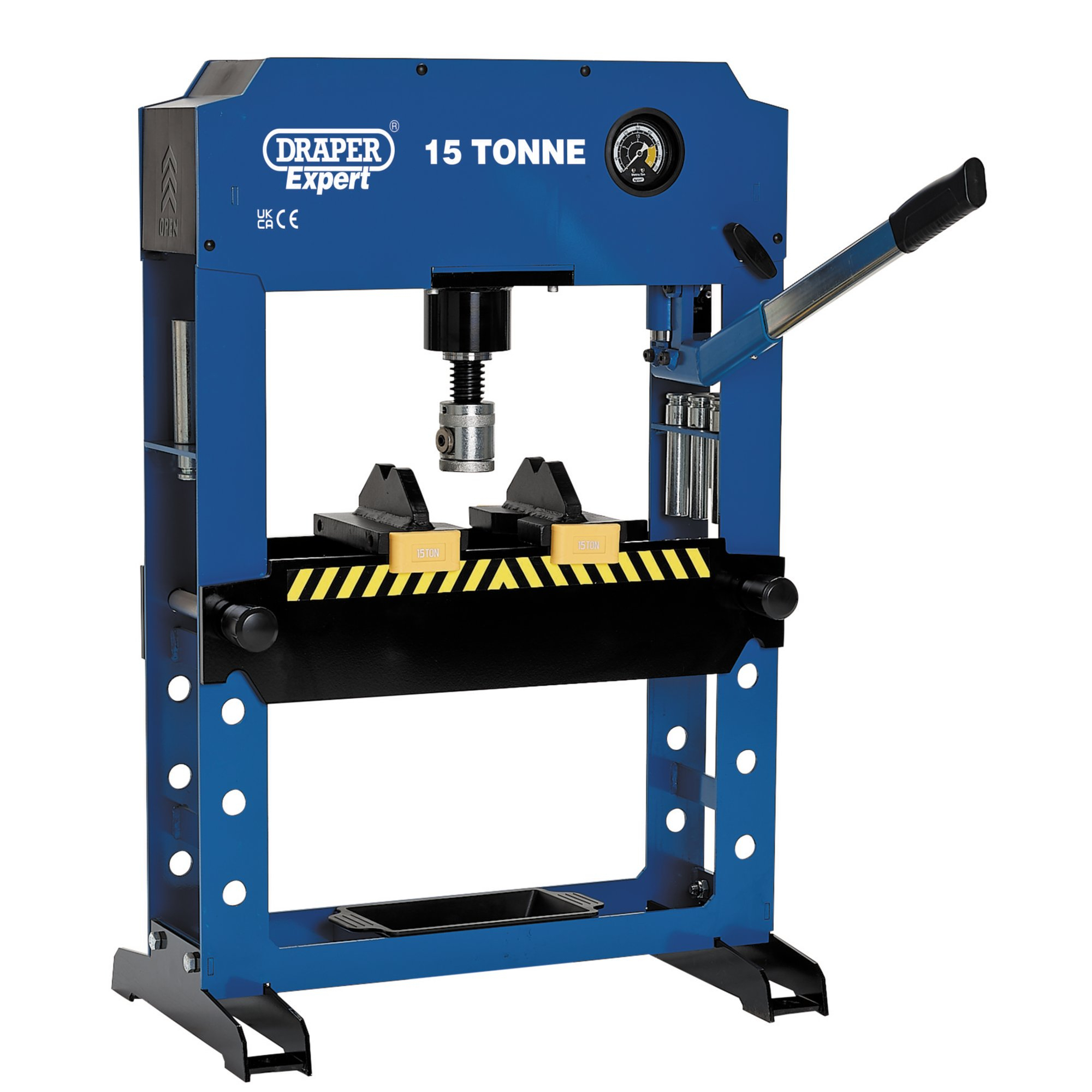

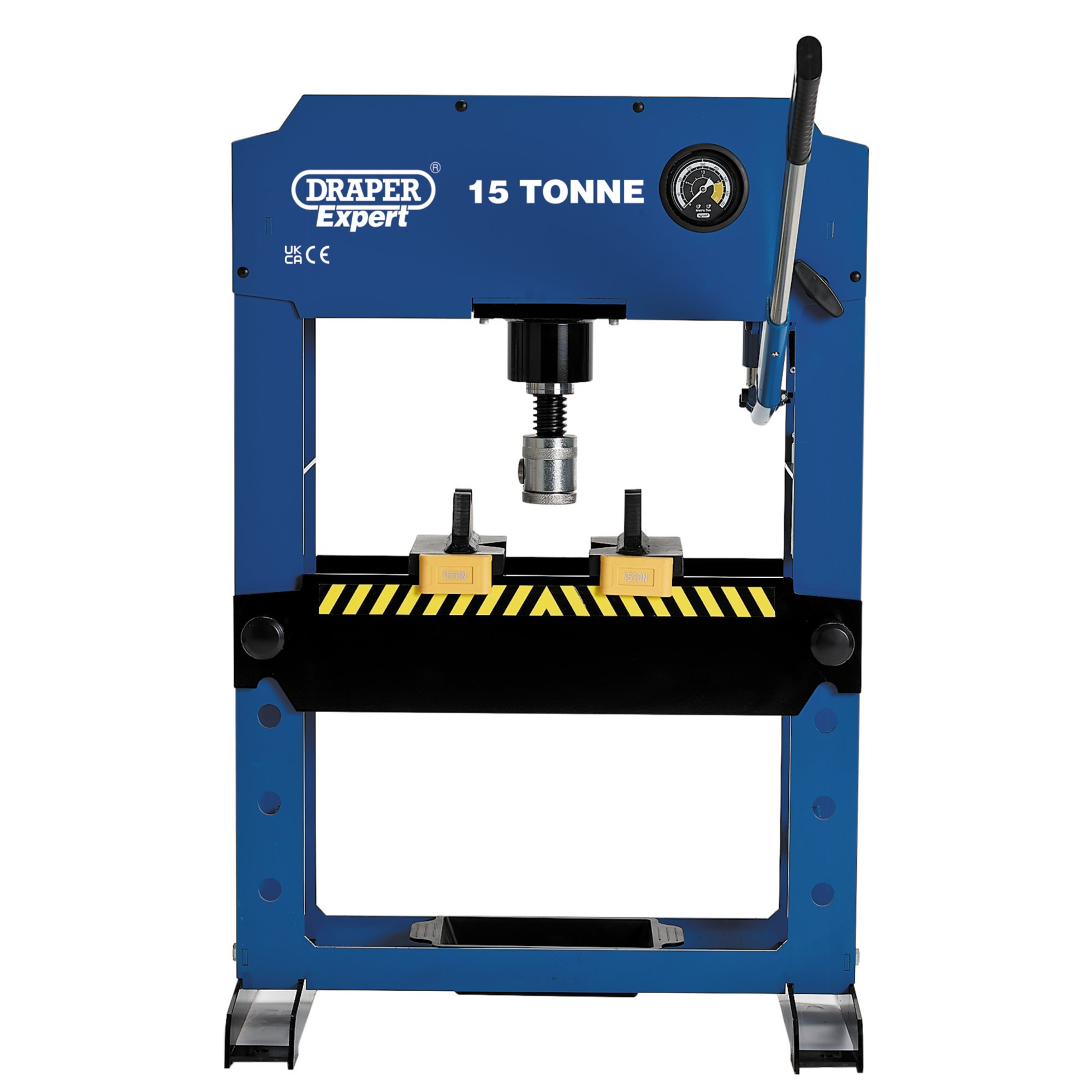

Draper 70563 HBP/15 Expert Hydraulic Bench Press, 15 Tonne
Robust hydraulic 15 tonne bench press with hand pump for manual hydraulic operation
Order within
SKU
DRA70563
Barcode
5010559705634
£660.98
(
£550.82
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Draper 70563
Robust hydraulic 15 tonne bench press with hand pump for manual hydraulic operation.
There are eight adjustable table heights with a working range between 45-385mm.
Robot welding one-piece frame for increased stability.
There are dustproof covers fitted to the top of the frame to prevent dust entering the pump and ram, which helps to increase their service life.
There is a removable parts tray located in the frame base.
Supplied with eight press pins ranging from 2-15 tonnes and two flat v-shaped pressing blocks.
1 x Draper Expert Hydraulic Bench Press, 15 Tonne
There are eight adjustable table heights with a working range between 45-385mm.
Robot welding one-piece frame for increased stability.
There are dustproof covers fitted to the top of the frame to prevent dust entering the pump and ram, which helps to increase their service life.
There is a removable parts tray located in the frame base.
Supplied with eight press pins ranging from 2-15 tonnes and two flat v-shaped pressing blocks.
1 x Draper Expert Hydraulic Bench Press, 15 Tonne
Features / Specification
| Capacity: 15 Tonne |
|---|
| Gauge diameter: 60mm |
| Ram stroke: 170mm |
| Ram diameter: 50mm |
| Table height: 45-385mm |
| Press pin capacity: 2-15 Tonnes |
| Overall height: 855mm |
| Frame dimensions: (H) 810 x (W) 440 x (D) 134mm |
| Weight (net): 56kg |
