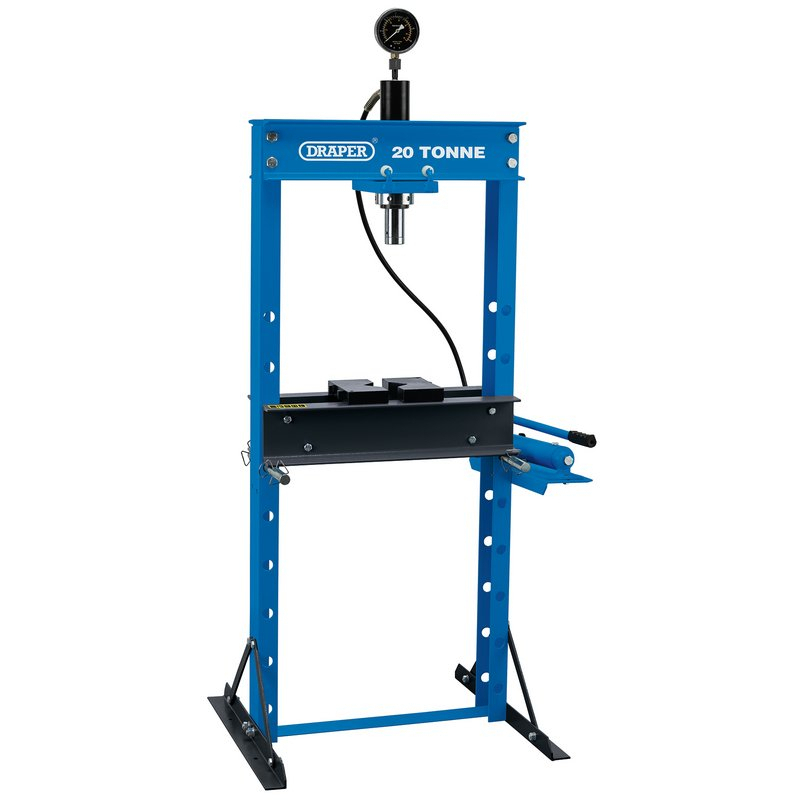

Draper 70540 HFP/20D 20 Tonne Floor Press
Robust hydraulic 20 tonne floor press with sliding ram
Order within
SKU
DRA70540
Barcode
5010559705405
£531.48
(
£442.90
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Draper 70540
Robust hydraulic 20 tonne floor press with sliding ram.
There are nine adjustable table heights: 256, 366, 486, 606, 726, 846, 966, 1086 and 1106mm.
The glycerine liquid filled gauge provides increased accuracy and prolonged service life.
An anti-kink coil is fitted to each end of the flexible hose for increased protection.
Fitted with a safety valve to pretend the press from overloading.
Complete with two flat V-shaped blocks.
Fully tested and certified for safe, reliable operation.
1 x 20 Tonne Hydraulic Floor Press
There are nine adjustable table heights: 256, 366, 486, 606, 726, 846, 966, 1086 and 1106mm.
The glycerine liquid filled gauge provides increased accuracy and prolonged service life.
An anti-kink coil is fitted to each end of the flexible hose for increased protection.
Fitted with a safety valve to pretend the press from overloading.
Complete with two flat V-shaped blocks.
Fully tested and certified for safe, reliable operation.
1 x 20 Tonne Hydraulic Floor Press
Features / Specification
| Capacity: 20 tonnes |
|---|
| Frame Depth: 100mm |
| Frame Height: 1515mm |
| Frame width: 740mm |
| Max Table to Ram Height: 998mm (max.) |
| Min Table to Ram Height: 28mm (max.) |
| Overall height: 1785mm |
| Ram stroke: 185mm |
| Ram Type: Sliding |
| Table Settings: 9 |
| Working table width: 550mm |
| Weight: 113kg |
