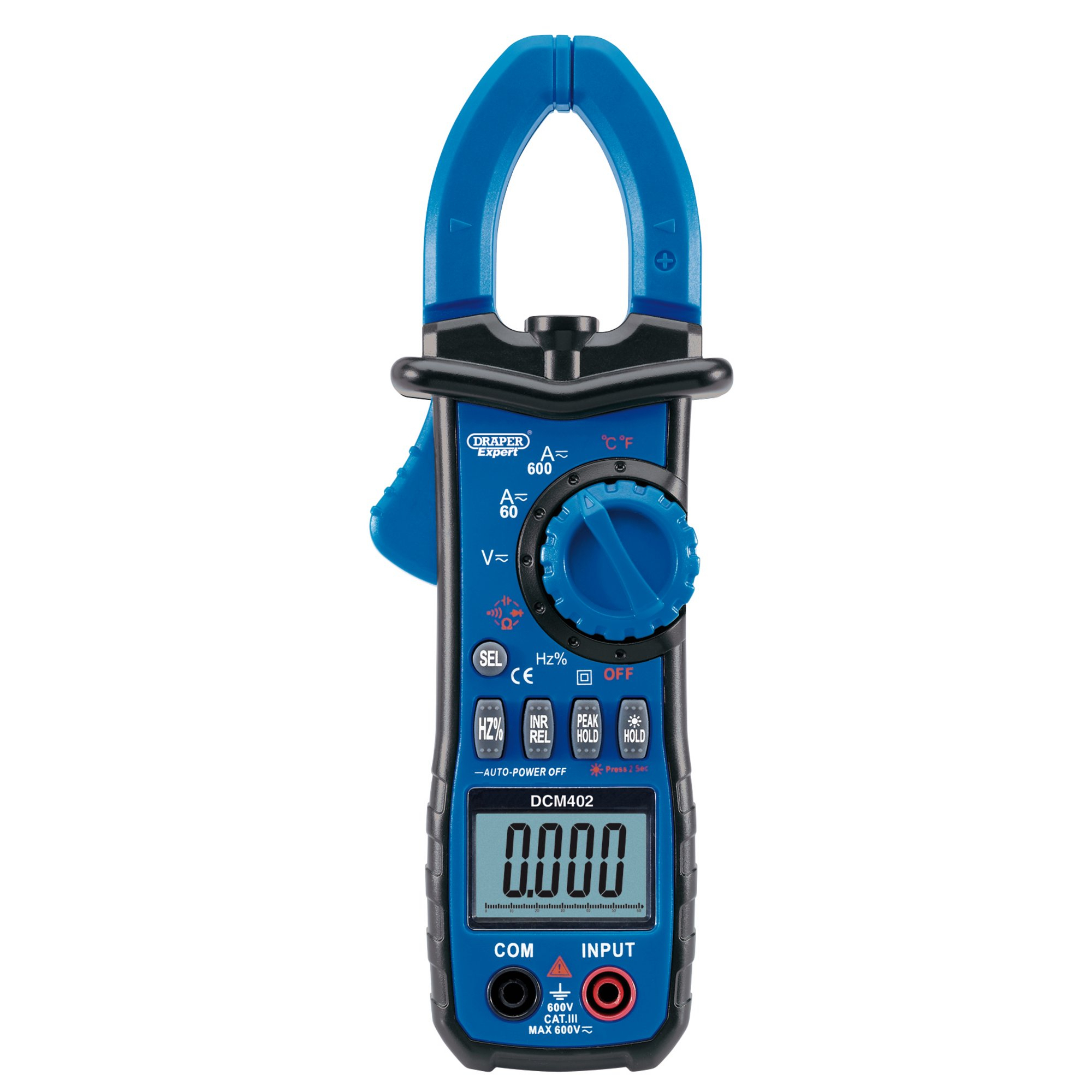

Draper 41967 DCM402 Digital Clamp Meter (Auto Ranging)
Expert Quality, auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and
SKU
DRA41967
Barcode
5010559419678
£71.05
(
£59.21
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Draper 41967
Expert Quality, auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and
temperature testing.
Maximum jaw-opening diameter of 36mm, backlit LCD screen, auto power off, linear bar graph functions and a useful inspection light.
Supplied with test leads, temp probe, case and 3 x AAA batteries.
temperature testing.
Maximum jaw-opening diameter of 36mm, backlit LCD screen, auto power off, linear bar graph functions and a useful inspection light.
Supplied with test leads, temp probe, case and 3 x AAA batteries.
Features / Specification
| DC Voltage | 600mV/6V/60V/600V |
|---|---|
| AC Voltage | 6V/60V/600V |
| DC Amps | 60A/600A |
| AC Amps | 60A/600A |
| Resistance | 600ohms/6kohms/60kohms/6Mohms/60Mohms |
| Capacitance | 999nF/99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/99.99mF |
| Frequency | 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz |
| Temp | -50 to 300ºC |
| Battery | 3 x AAA (supplied) |
