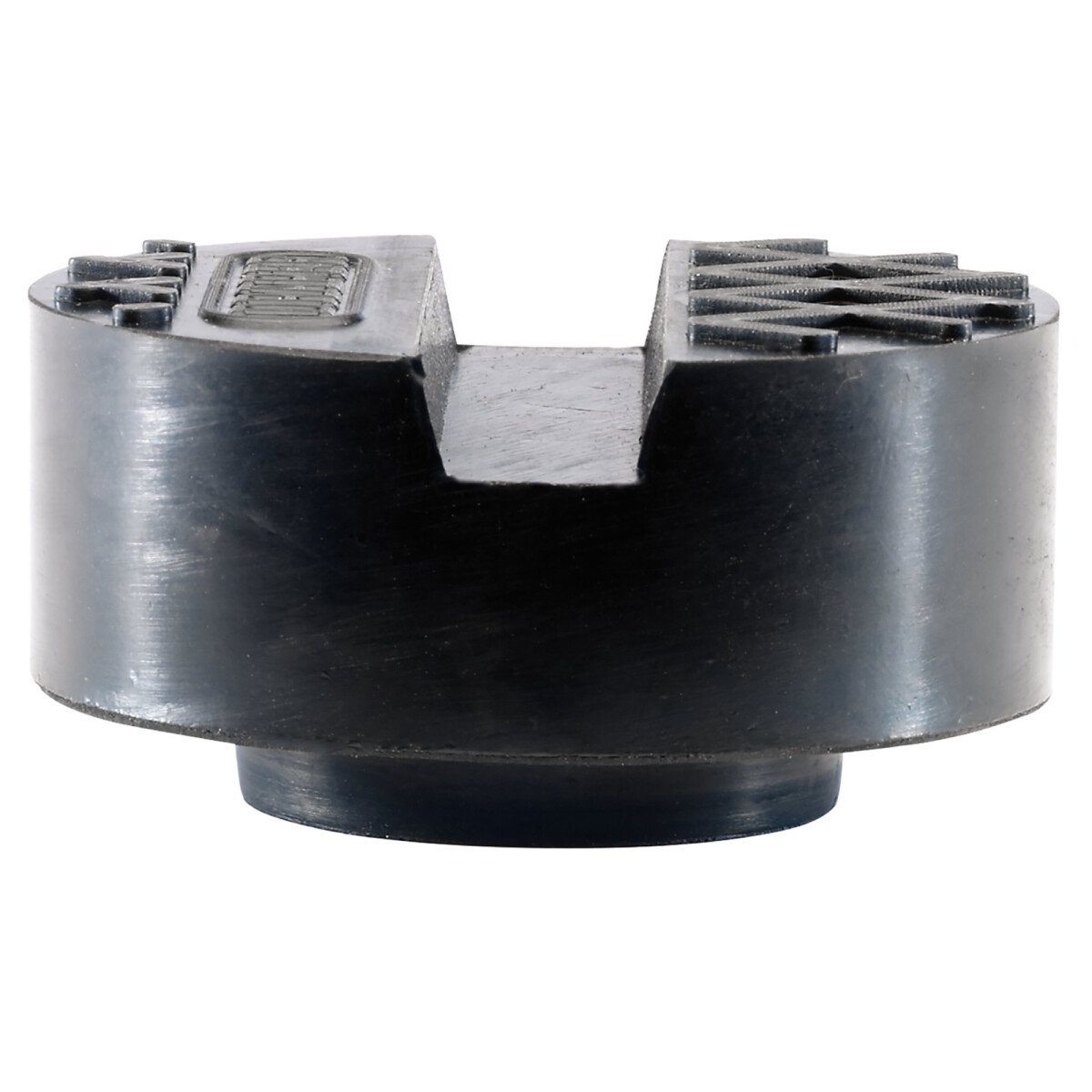

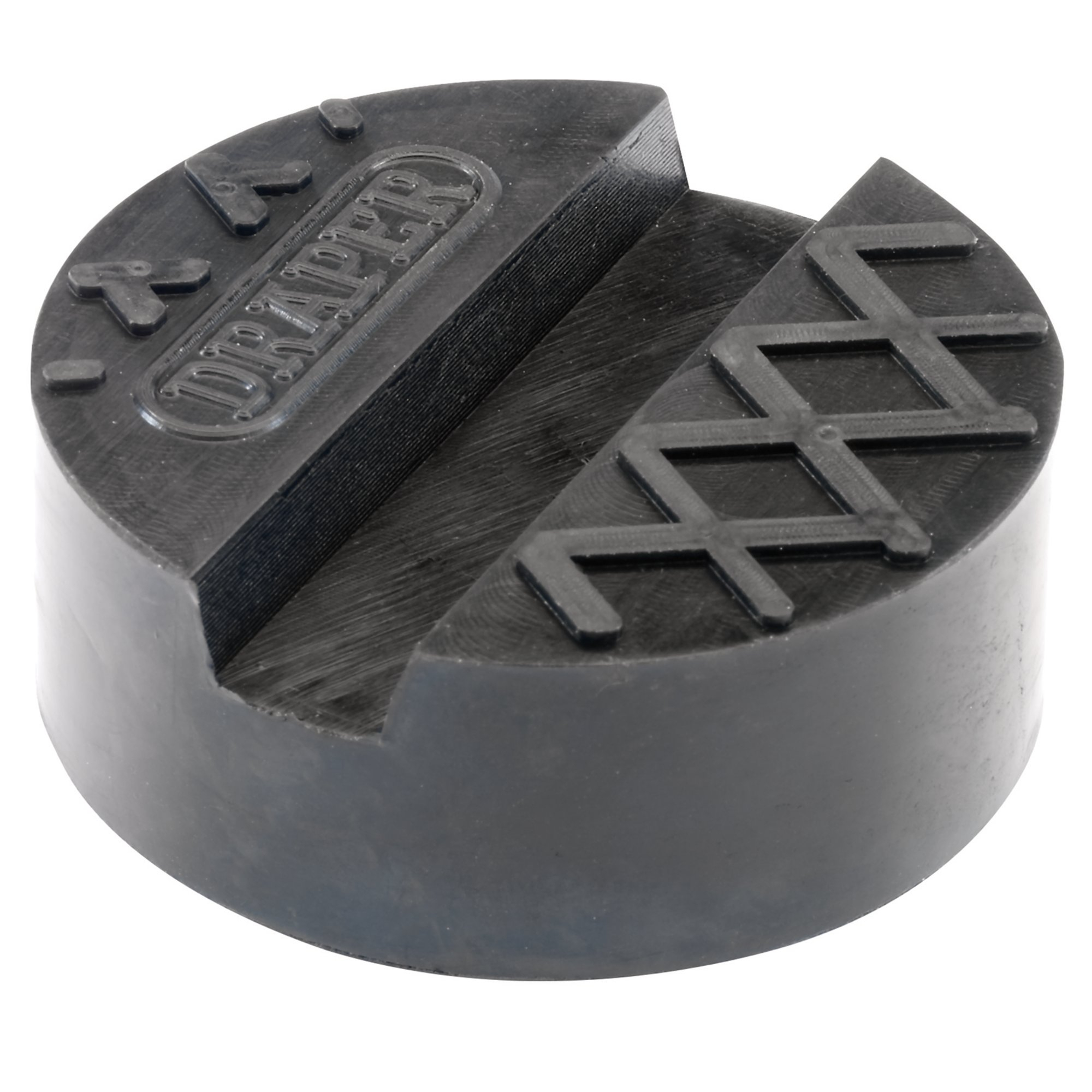

Draper 41733 TJP1 Trolley Jack Rubber Pad Small
Chamfered base design for compact light duty trolley jacks with small lift saddles
SKU
DRA41733
Barcode
5010559417339
£7.22
(
£6.02
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Draper 41733
Chamfered base design for compact light duty trolley jacks with small lift saddles.
Designed to avert damage to the sill and underside of a vehicle when in use.
Made from durable and robust rubber.
The slotted rubber feature enables the pad to be used on car sills whilst stopping the sills from collapsing under pressure.
For use with trolley jacks with 38-55mm diameter saddles.
Designed to avert damage to the sill and underside of a vehicle when in use.
Made from durable and robust rubber.
The slotted rubber feature enables the pad to be used on car sills whilst stopping the sills from collapsing under pressure.
For use with trolley jacks with 38-55mm diameter saddles.
Features / Specification
| Capacity 2 Tonne (2,000kg) |
|---|
| Jack Pad Diameter 65mm (Approx) |
| Jack Pad Cup Diameter 38mm (Approx) |
| Jack Pad Height 25mm (Approx) |
| Jack Pad Cup Height 8mm (Approx) |
| Jack Pad Total Height 33mm (Approx) |
| Jack Pad Slot Height 8mm (Approx) |
| Jack Pad Slot Width 15mm (Approx) |
