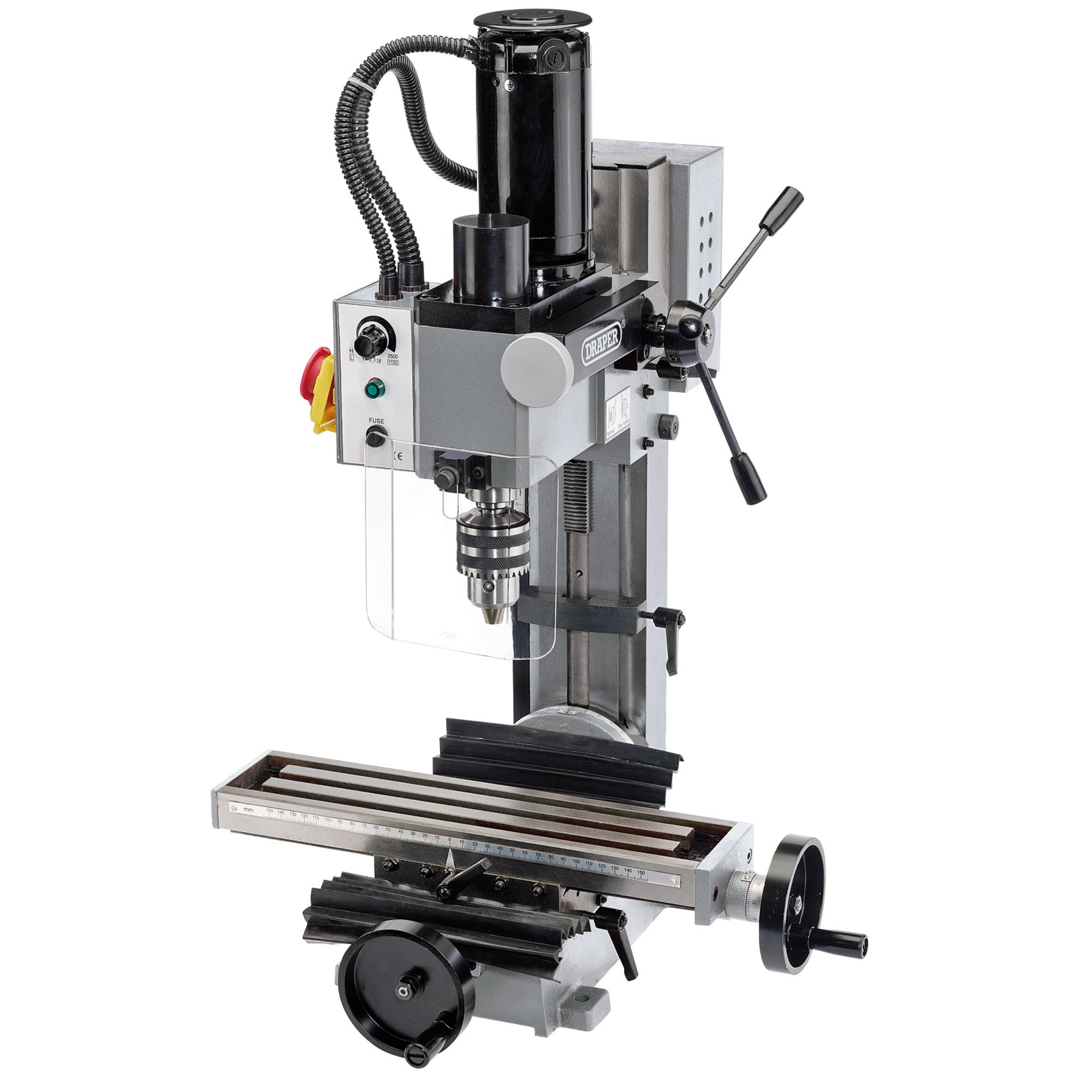

Draper 34023 MILL-170 350W 230V Variable Speed Mini Milling/Drilling Machine
Bench mounting mini milling/drilling machine which will handle most materials
Order within
SKU
DRA34023
Barcode
5010559340231
£900.72
(
£750.60
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Draper 34023
Bench mounting mini milling/drilling machine which will handle most materials.
Incorporates a working table with T slots to enable clamping or workpieces and metric graduated compound scales.
Column tilts from 0-45 from vertical.
No-volt switch to prevent accidental switch on and approved three pin cable and approved plug.
Carton packed.
Features / Specification
Drilling capacity: | 13mm |
|---|---|
| Face milling capacity: | 30mm |
| End milling capacity: | 16mm |
| Headstock travel: | 180mm |
| Cross axis: | 100mm |
| Longitudinal axis: | 220mm |
| Spindle tilt axis: | ±0-45° |
| Spindle taper: | MT3 |
| Low spindle speed: | 100-1100r/min |
| High spindle speed: | 100-2500r/min |
| T-slot: | 12mm |
| Throat depth: | 170mm |
| Table size: | 390 x 92mm |
