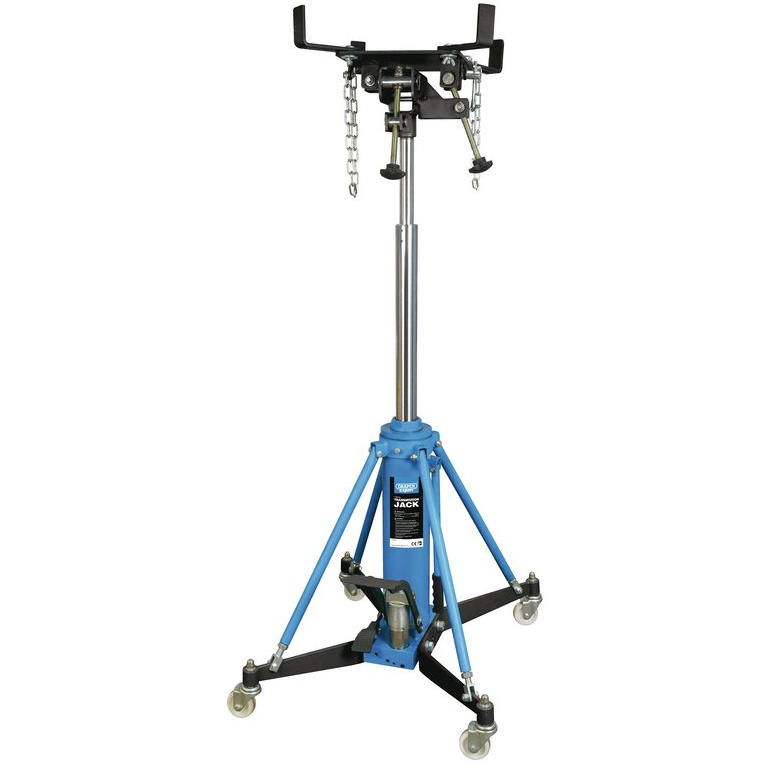

Draper 19788 TJ1000-E Vertical Transmission Jack (1000kg)
Expert Quality, hydraulic vertical transmission jack with a telescopic twin stage ram
Order within
SKU
DRA19788
Barcode
5010559197880
£535.00
(
£445.83
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Draper 19788
Expert Quality, hydraulic vertical transmission jack with a telescopic twin stage ram.
The low entry height is designed to aid with reduced clearances and the jack is fitted with a safety overload valve for added user protection.
Operated via twin foot pedals for hands free operation and attached with chain straps for added support and adjustable supporting struts for increased stability.
The extra-large castors and side mounted handle aid positioning and increase manoeuvrability.
The fully adjustable saddle can accept a wide variety of gearboxes/components and the forward, backward and side-to-side tilt aids the user further.
The low entry height is designed to aid with reduced clearances and the jack is fitted with a safety overload valve for added user protection.
Operated via twin foot pedals for hands free operation and attached with chain straps for added support and adjustable supporting struts for increased stability.
The extra-large castors and side mounted handle aid positioning and increase manoeuvrability.
The fully adjustable saddle can accept a wide variety of gearboxes/components and the forward, backward and side-to-side tilt aids the user further.
Features / Specification
| Capacity 1,000kg |
|---|
| Minimum height 875mm |
| Maximum height stage 1 1,240mm |
| Maximum height stage 2 1,910mm |
| Castor diameter 75mm |
| Base size 710 x 700mm |
| Saddle type Adjustable |
| Chain length 1,030mm |
| Weight 79.5kg |
