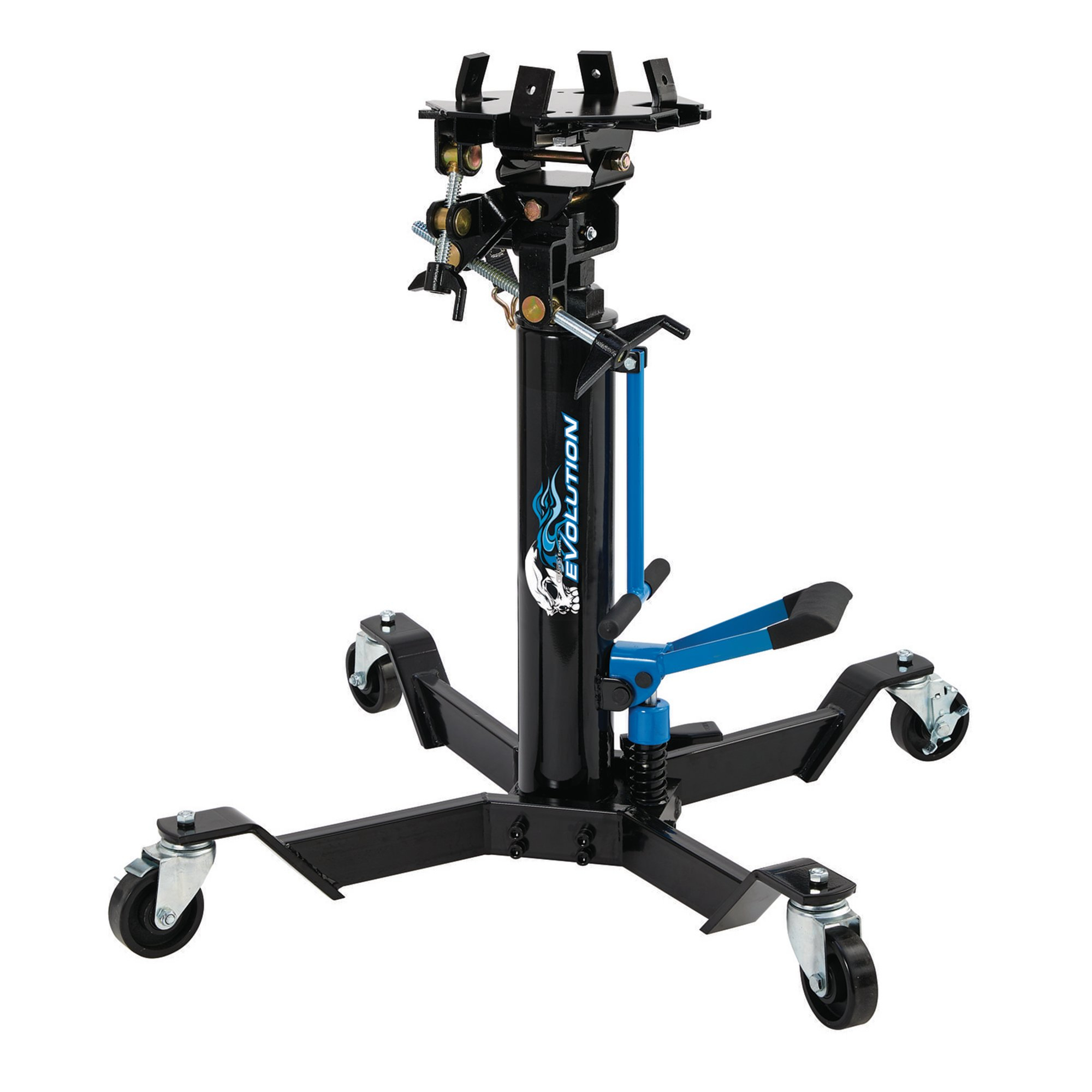

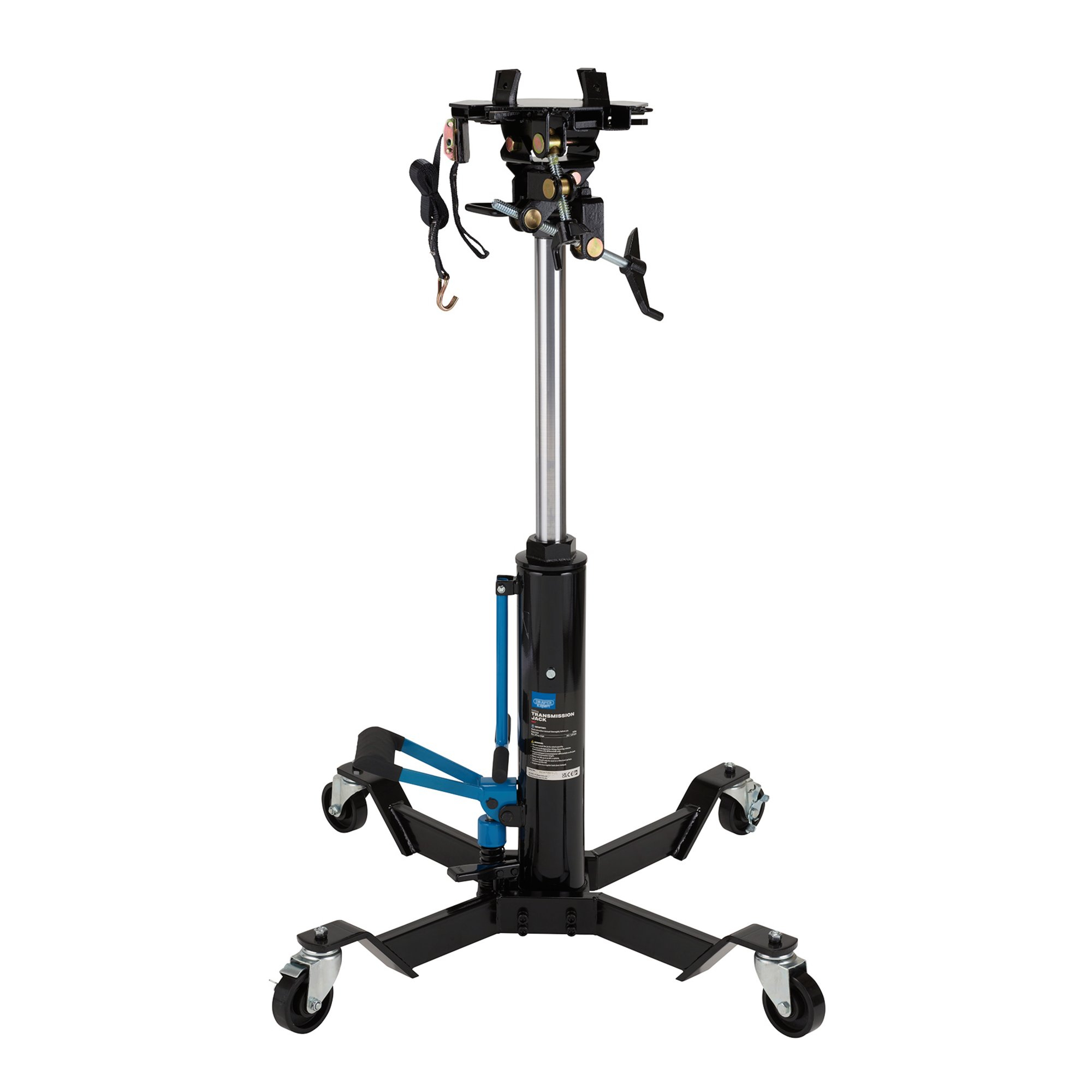

Draper 08557 Expert Evolution Vertical Transmission Jack, 500kg
This vertical transmission jack is part of the stylish and distinctive Evolution range
Order within
SKU
DRA08557
Barcode
5059482058905
£622.00
(
£518.33
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Draper 08557
- This vertical transmission jack is part of the stylish and distinctive Evolution range
- Telescopic twin stage ram with a low entry height for reduced clearances
- Operated by foot pedal for easy hands-free operation
- Fully adjustable saddle able to accept a wide range of components
- Has forward, backward and side-to-side tilting action to aid the user further
- Ratchet saddle claws enhance the operating speed when clamping the load
- There are two non-marking ratchet straps for added support
- Fitted with four extra-large 100mm nylon castors that prevent damage to floors and provide quiet and smooth operation
- The side mounted T-handle further aids positioning and manoeuvrability
- Fitted with overload safety valve
- Fully tested and certified for safe, reliable operation
- Capacity 500kg
Features / Specification
| Capacity 500kg |
|---|
| Minimum height 902mm |
| Maximum height stage 1 1,387mm |
| Maximum height stage 2 1,891mm |
| Saddle type Adjustable |
| Base dimensions 290 x 290mm |
| Castor diameter 100mm |
| Weight 66kg |
