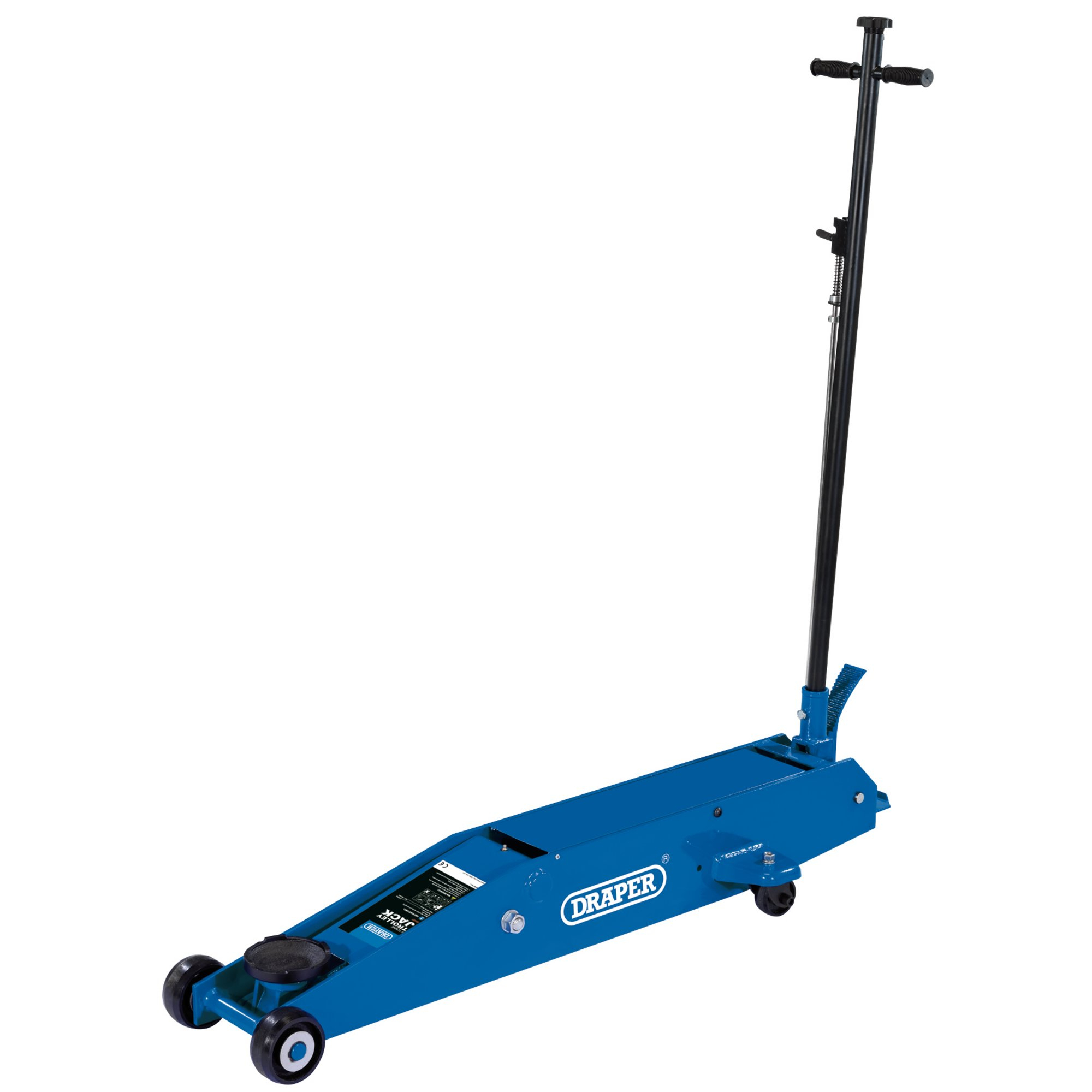

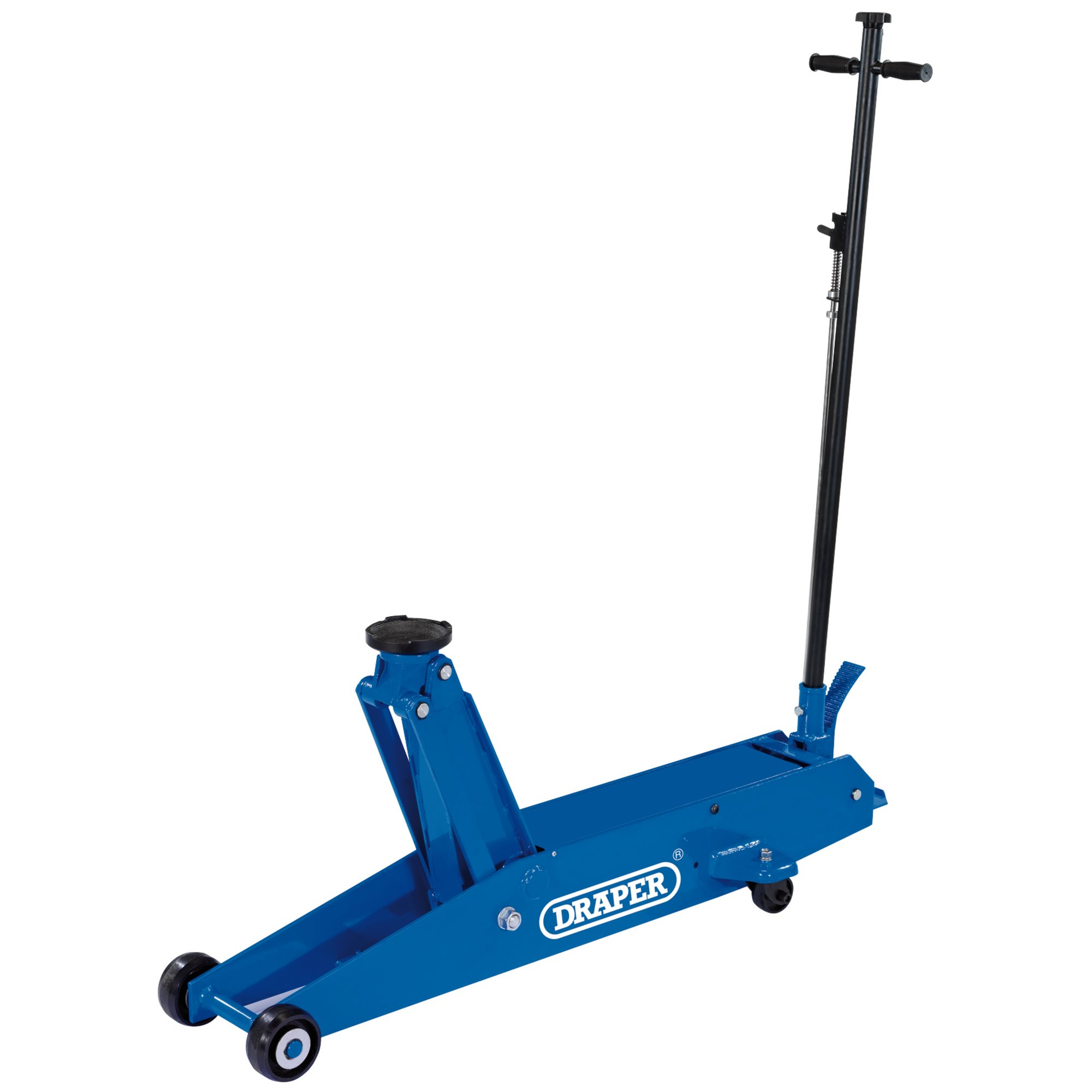

Draper 03467 TJ5LR Long Chassis Trolley Jack (5 Tonne)
Heavy-duty chassis fitted with a 'quick-lift' foot pedal to rapidly raise the saddle to the vehicle jacking point
Order within
SKU
DRA03467
Barcode
5010559034673
£624.98
(
£520.82
Ex VAT)
(
Ex VAT)
(
Ex VAT)
Description / Draper 03467
Heavy-duty chassis fitted with a 'quick-lift' foot pedal to rapidly raise the saddle to the vehicle jacking point.
Large saddle aids positioning.
Locking facility allows the handle to be locked in three positions.
T-shaped handle with an incorporated release valve prevents accidental lowering.
Rear swivelling castors with toe plate increases manoeuvrability.
Safety valve prevents the jack from overloading.
Supplied with a one piece handle.
Large saddle aids positioning.
Locking facility allows the handle to be locked in three positions.
T-shaped handle with an incorporated release valve prevents accidental lowering.
Rear swivelling castors with toe plate increases manoeuvrability.
Safety valve prevents the jack from overloading.
Supplied with a one piece handle.
Features / Specification
| Capacity 5 Tonne (5,000kg) |
|---|
| Minimum Height 160mm |
| Maximum Height 560mm |
| Saddle Diameter 130mm |
| Handle Length 1,220mm |
| Chassis Length 1,410mm |
| Nett Weight 85kg |
