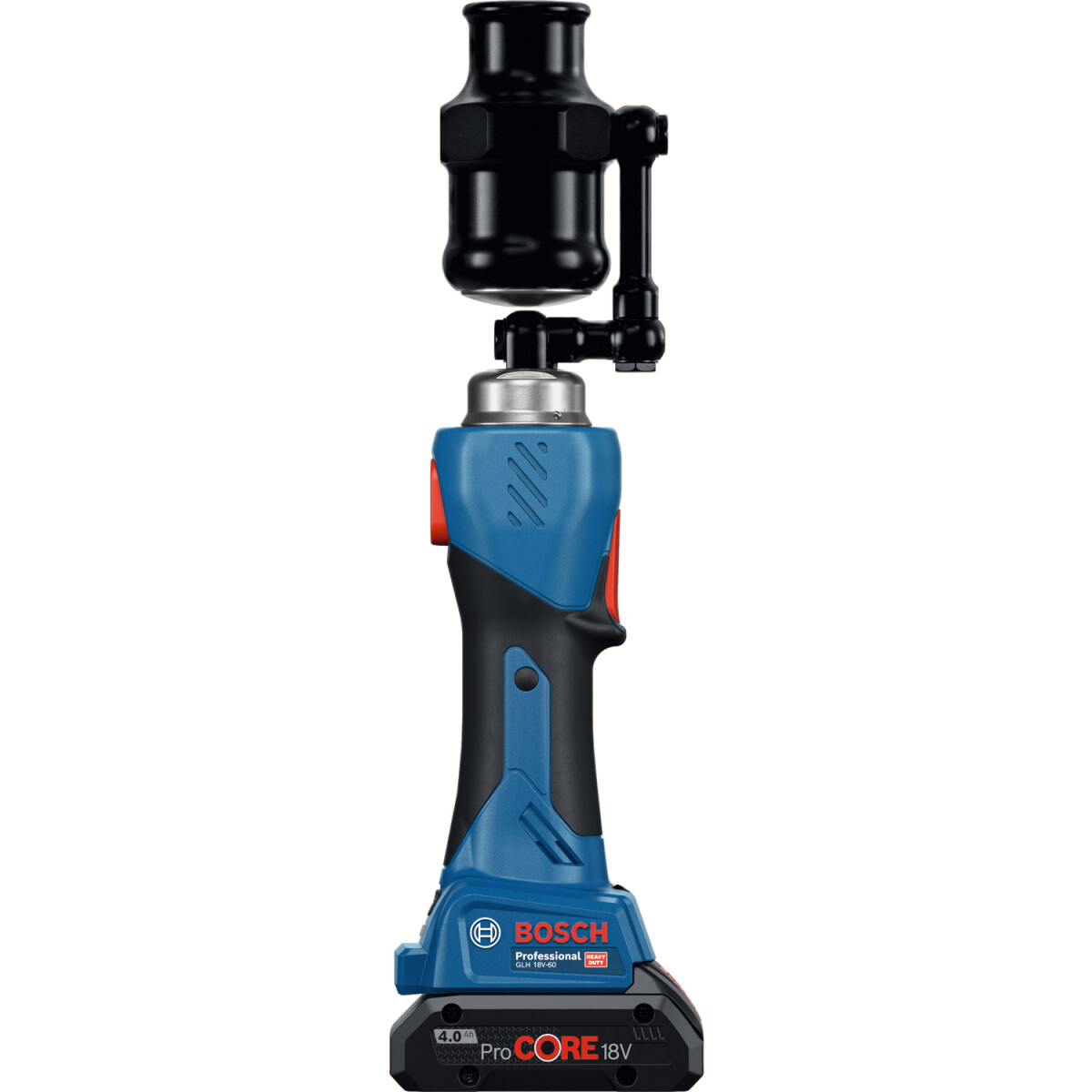

The Bosch GLH 18V-60 is supplied Body Only (without batteries or charger)
The GLH 18V-60 punches holes in steel sheets up to 3 mm thick and in stainless-steel sheets up to 2.5 mm. Bosch offers accessories from M16 - M40 and PG9 - PG36 all of which are suitable for both steel and stainless steel. The USB connection and read-out software (free and available to download below) lets you easily monitor the tool’s punching history, error messages and maintenance.
Designed to efficiently punch holes in steel and stainless-steel sheets, the GLH 18V-60 is a robust punching tool that delivers burr-free, high-quality cuts. It makes wearying hole-making a thing of the past due to its reliable 60kN output force and comprehensive monitoring functions. A status LED indicates tool status and maintenance intervals. And with the manual pressure release function, you can always retract.
A status LED indicates tool status and required maintenance. The tool has an LED work light as well as a manual pressure release function.
Strong, reliable hydraulic punching resulting in clean and burr-free cuts
Wide range of Bosch accessories in sizes M16-M40 and PG9-PG36 suitable for both steel and stainless steel available
High performance with reliable output force of 60kN maximum, thanks to electronic pressure monitoring
Convenient overview of tool history, important parameters and maintenance cycles through USB connection and readout software
18V Hydraulic Punching Tool: Outstanding Maintenance Interval and Accessories
The tool comes with an 100% end-of-line quality control certificate. It is furthermore compatible with standard market accessories.Supplied With:
- 1 X Draw stud 19 x 125 mm
- 1 X Spacer 11.1 mm
- XL-BOXX
- 1 X Spacer 19 mm
- 1 X Draw stud 11.1 x 19 mm
- Features
Features
Capacity stainless steel max:
2.5 mm Capacity steel max: 3 mm Head rotation: 360 ° Punching force max: 60 kN Automatic retraction: Yes Intelligent punching detection: Yes Maintenance interval: 20.000 cycles Manual pressure release: Yes USB connector: Yes Manual retraction stop: Yes Read-Out Functionality: Yes Work light: Yes Automatic pressure limitation and monitoring: Yes USB mode: USB 2.0 Punching time: 2 s to 5 s (for ST37 3.0mm with 16,2mm Punch) - Video
