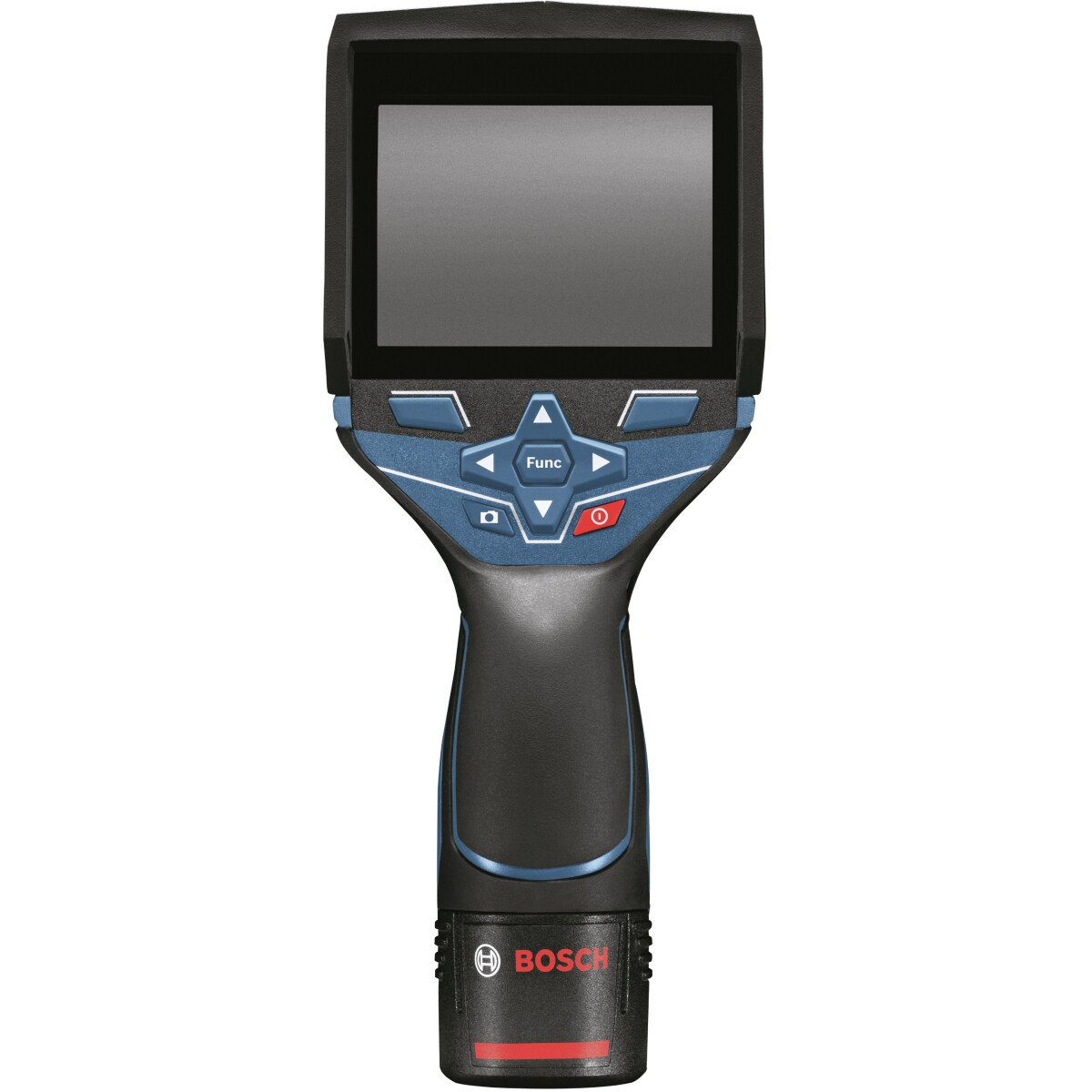

Bosch GTC400CG 12V Body Only Thermal Imaging Camera in L-BOXX
SKU: B0601083108
Description / Bosch GTC400CG
Visualise temperature differences within seconds and document results with ease
Infrared sensor with 19,200 measuring pixels (160 x 120) for detailed, informative thermal imaging
Easy to use with clear, easy-to-read thermal images for an effortless introduction into the world of thermography
Identify overheated components in electrical installations immediately – making system testing, inspections and maintenance efficient
Locate underfloor heating systems, heating elements and heating pipes easily to check that they are working properly
Easy location orientation of the measured values due to the built-in camera which generates a visible image with an overlay of the thermal image
Easy documentation and fast exchange of data using the Bosch Measuring Master app
More flexibility due to Dual Power Source: Can be used with 12 V-LI-ion battery or with standard alkaline batteries
Features / Specification
Measurement range | -10 °C to +400 °C |
|---|---|
| Measuring accuracy of IR | ±3.0 °C |
| Resolution | 0.1 °C |
| Thermal sensitivity (NETD) | <50 mK |
| Size of IR sensor | 160x120 px |
| Number of measuring points | 19200 |
| Frame buffer (number of images) | 500 |
| Memory type | Internal memory |
| File format of image | .jpg |
| Dust and splash protection | IP 53 |
| Display type | TFT LCD |
| Size of display | 3,5" |
| Operating temperature | -10 – 45 °C |
| Storage temperature | -20 – 70 °C |
| Working range | 0 m |
| Weight | 0.5Kg |
| Power supply and runtime | 4 x 1.5 V LR6 (AA) 1 x GBA 12V 1 x GBA 10.8V |
Supplied With
- L-BOXX 136
- L-BOXX inlay for tool
- L-BOXX inlay accessories
- Micro USB cable
- Hand strap
